TECHNICAL DATA SHEET
3.5mm Male to 3.5mm Female Test Cable 72 Inch Length Using VNA Cable Coax, RoHS
Configuration
Connector 1
Connector 1 Specification
Connector 2
Connector 2 Specification
Cable Type
3.5mm Male
MIL-STD-348
3.5mm Female
MIL-STD-348
VNA Cable
PE317-72
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Velocity of Propagation, %
RF Shielding, dB
Dielectric Withstanding Voltage (AC), Vrms
Typical Performance by Frequency
Frequency 1
Frequency, MHz
VSWR
Return Loss, dB
Insertion Loss
Frequency 2
Frequency, GHz
VSWR
Return Loss, dB
Insertion Loss
Power Handling, Watts
Frequency 3
Frequency, GHz
VSWR
Return Loss, dB
Insertion Loss
Frequency 4
Frequency, GHz
VSWR
Return Loss, dB
Insertion Loss
DC to 26.5
50
1.29:1
77
100
1,000
1000
1.07:1
30
0.08 dB/ft [ 0.26 dB/m ]
10
1.12:1
25
0.28 dB/ft [ 0.92 dB/m ]
286
18
1.22:1
20
0.39 dB/ft [ 1.28 dB/m ]
26.5
1.29:1
18
0.49 dB/ft [ 1.61 dB/m ]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
3.5mm Male to 3.5mm Female Test Cable 72 Inch Length Using VNA Cable Coax, RoHS
PE317-72
PE317-72 REV
1
3.5mm Male to 3.5mm Female Test Cable 72 Inch
Length Using VNA Cable Coax, RoHS
TECHNICAL DATA SHEET
Mechanical Specifications
Cable Assembly
Cable Type
Temperature
Temperature Operating Range, deg C
Size
Length, in [cm]
Diameter, in [mm]
.
PE317-72
VNA Cable
-55 to +165
72 [182.88]
0.47 [11.94]
Cable
Center Conductor Type
Cable Inner Conductor
No of Shields
Dielectric Type
Jacket Material
Solid
Copper, Silver
2
PTFE
FEP
Connector 1
Type
Configuration
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
3.5mm Male
Straight
Gold
Passivated Stainless Steel
5/16
8 [0.9]
Passivated Stainless Steel
PPO
3.5mm Female
Straight
Gold
Passivated Stainless Steel
PPO
Connector 2
Type
Configuration
Inner Conductor Material and Plating
Body Material and Plating
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
3.5mm Male to 3.5mm Female Test Cable 72 Inch Length Using VNA Cable Coax, RoHS
PE317-72
PE317-72 REV
2
3.5mm Male to 3.5mm Female Test Cable 72 Inch
Length Using VNA Cable Coax, RoHS
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE317-72
3.5mm Male to 3.5mm Female Test Cable 72 Inch Length Using VNA Cable Coax, RoHS from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
3.5mm Male to 3.5mm Female Test Cable 72 Inch Length Using VNA Cable Coax, RoHS
PE317-72
URL:
http://www.pasternack.com/3.5mm-male-3.5mm-female-vna-cable-cable-assembly-pe317-72-p.aspx
PE317-72 REV
3
© 2013 Pasternack Enterprises All Rights Reserved
PE317-72

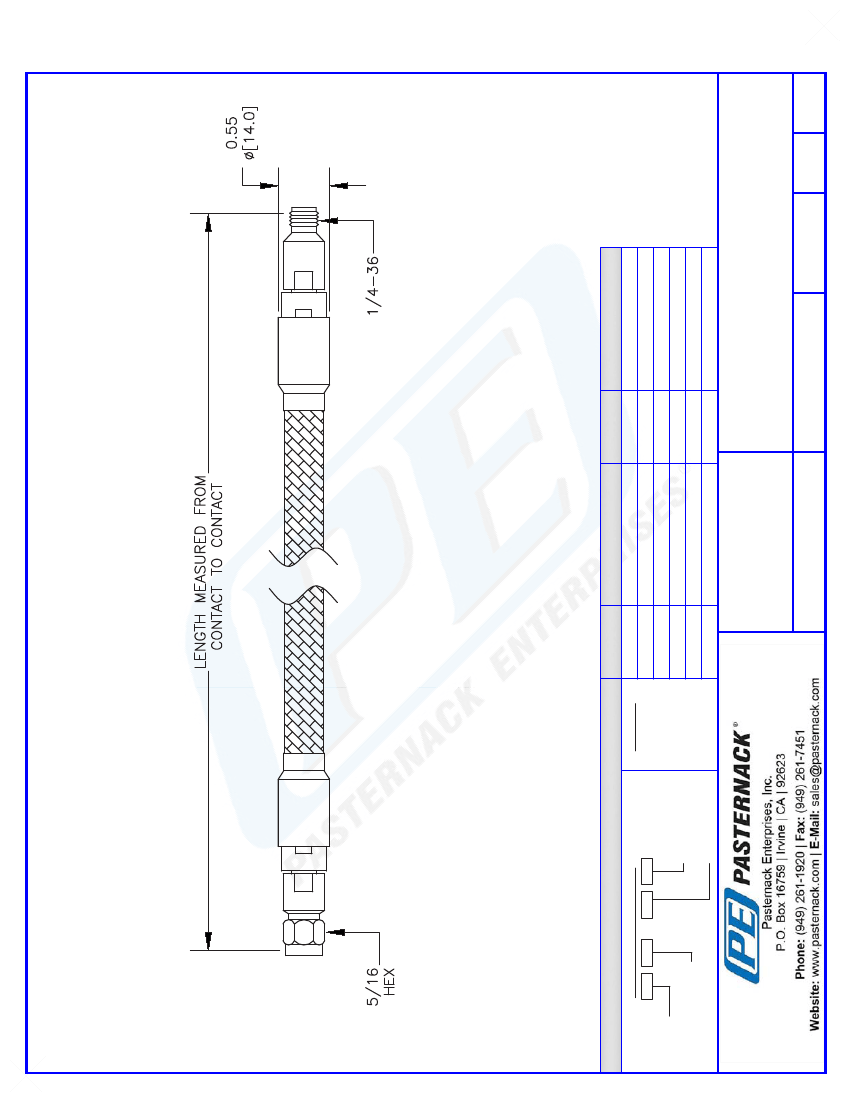

CAD Drawing
3.5mm Male to 3.5mm Female Test Cable 72 Inch Length Using VNA Cable Coax, RoHS
PE317-72 REV
3.5mm
MALE
3.5mm
FEMALE
Part # Ext.
Part Number Configuration
Examples
-12
yy
-
xx
uu
-24
PE3 zzz
PE3000LF-100
-36
PE3000-100
00 - 99999
CM = Centimeters PE3000LF-100CM
-48
LF = RoHS Compliant
< Blank > = Inches
-60
< Blank > = Standard
PE3000-100CM
Length
-xx
Note: LF applies only to RF cables
How To Order
Length In Inches
12''
24"
36"
48"
60"
Custom Length
DWG TITLE
Part # Ext.
-25CM
-50CM
-75CM
-100CM
-125CM
-xxCM
Length In Centimeters
25Cm
50Cm
75Cm
100Cm
125Cm
Custom Length
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. LENGTH TOLERANCE IS ± 1.5% OR 3/8", WHICHEVER IS GREATER.
PE317
FSCM NO. 53919
CAD FILE
012111-B
SCALE N/A
SIZE A
2233
4
