54122DMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54122DMQB

54122DMQB: DescriptionMonostable Multivibrator, TTL, CDIP14,; Categorylogic logic; File Size160KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54122DMQB Overview

Monostable Multivibrator, TTL, CDIP14,

54122DMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Logic integrated circuit type	MONOSTABLE MULTIVIBRATOR
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

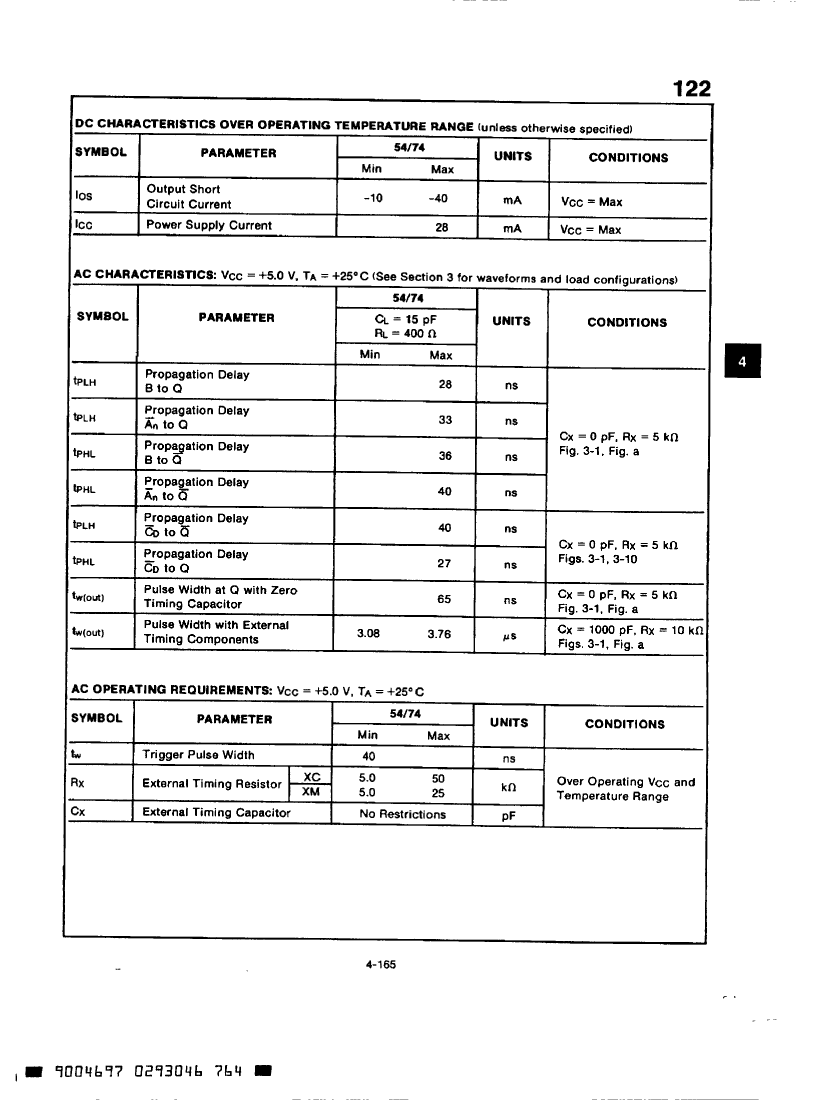

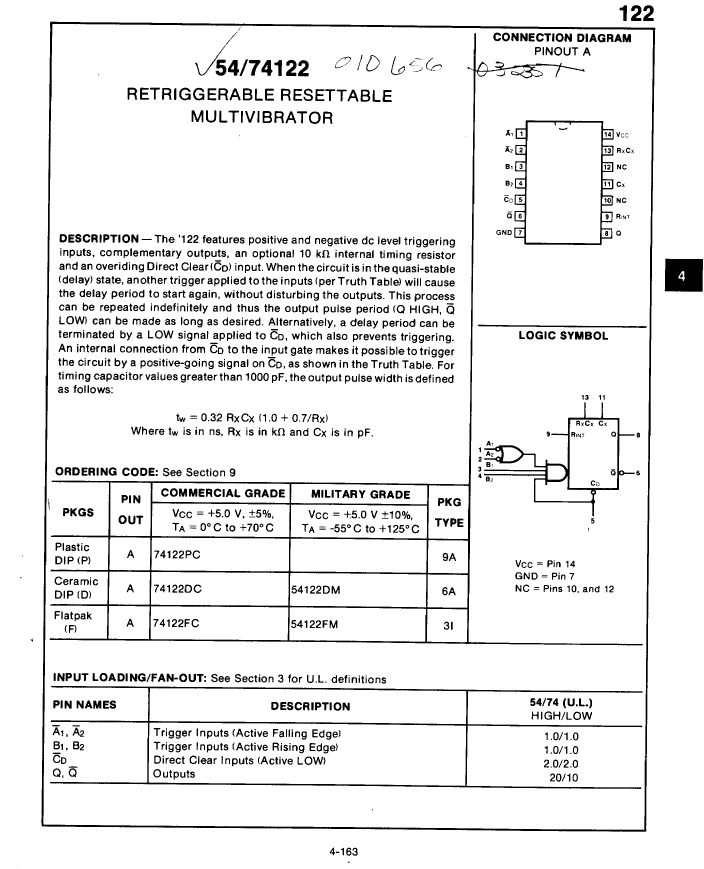

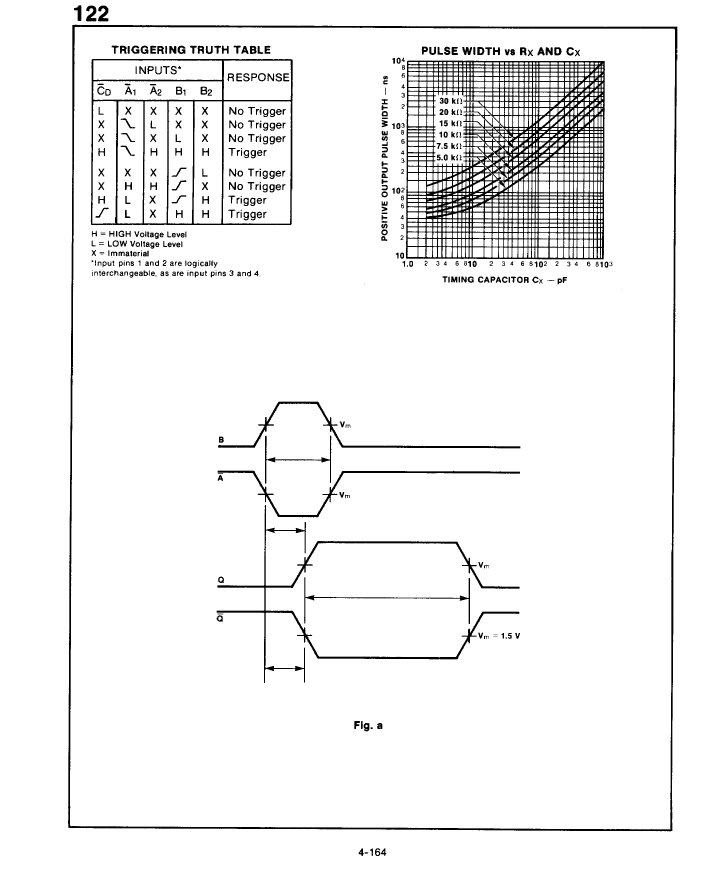

Preview

Download Datasheet

View All

54122DMQB Related Products

	54122DMQB	74122DCQR	74122DCQM	WBDDSS8-A-00-2803-D-	WBDDSS8-A-00-5970-C-	54122FMQB	54122FM
Description	Monostable Multivibrator, TTL, CDIP14,	Monostable Multivibrator, TTL, CDIP14,	Monostable Multivibrator, TTL, CDIP14,	Array/Network Resistor, Isolated, 0.1W, 280000ohm, 100V, 0.5% +/-Tol, -300,300ppm/Cel, 1408,	Array/Network Resistor, Isolated, 0.1W, 597ohm, 100V, 0.25% +/-Tol, -300,300ppm/Cel, 1408,	Monostable Multivibrator, TTL, CDFP14,	Monostable Multivibrator, TTL, CDFP14,
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	unknown	compliant
Number of terminals	14	14	14	16	16	14	14
Maximum operating temperature	125 °C	70 °C	70 °C	150 °C	150 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-	-55 °C	-55 °C	-55 °C	-55 °C
Package form	IN-LINE	IN-LINE	IN-LINE	SMT	SMT	FLATPACK	FLATPACK
Is it Rohs certified?	incompatible	incompatible	incompatible	-	-	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	-	-	Fairchild	-
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	-	-	DFP, FL14,.3	DFP, FL14,.3
JESD-30 code	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	-	-	R-XDFP-F14	R-XDFP-F14
JESD-609 code	e0	e0	e0	-	-	e0	e0
Logic integrated circuit type	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	-	-	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR
Package body material	CERAMIC	CERAMIC	CERAMIC	-	-	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	-	-	DFP	DFP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	-	-	FL14,.3	FL14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR
power supply	5 V	5 V	5 V	-	-	5 V	5 V
Certification status	Not Qualified	-	Not Qualified	-	-	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	-	5 V	5 V
surface mount	NO	NO	NO	-	-	YES	YES
technology	TTL	TTL	TTL	-	-	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	-	-	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	-	FLAT	FLAT
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	-	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	-	-	DUAL	DUAL
