KS88C0504P datasheet, PDF - EEWORLD Datasheet

KS88C0504P: DescriptionMicrocontroller, 8-Bit, MROM, CMOS, PDIP40, 0.600 INCH, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size204KB，11 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

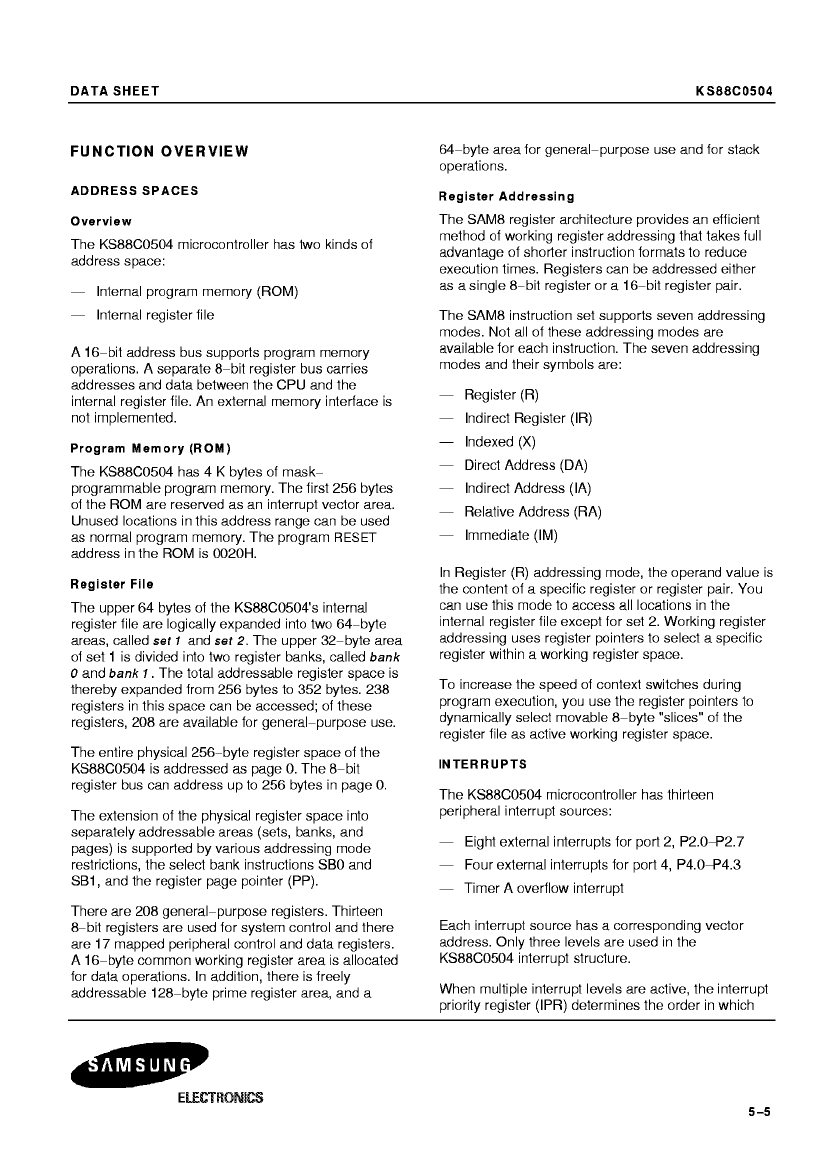

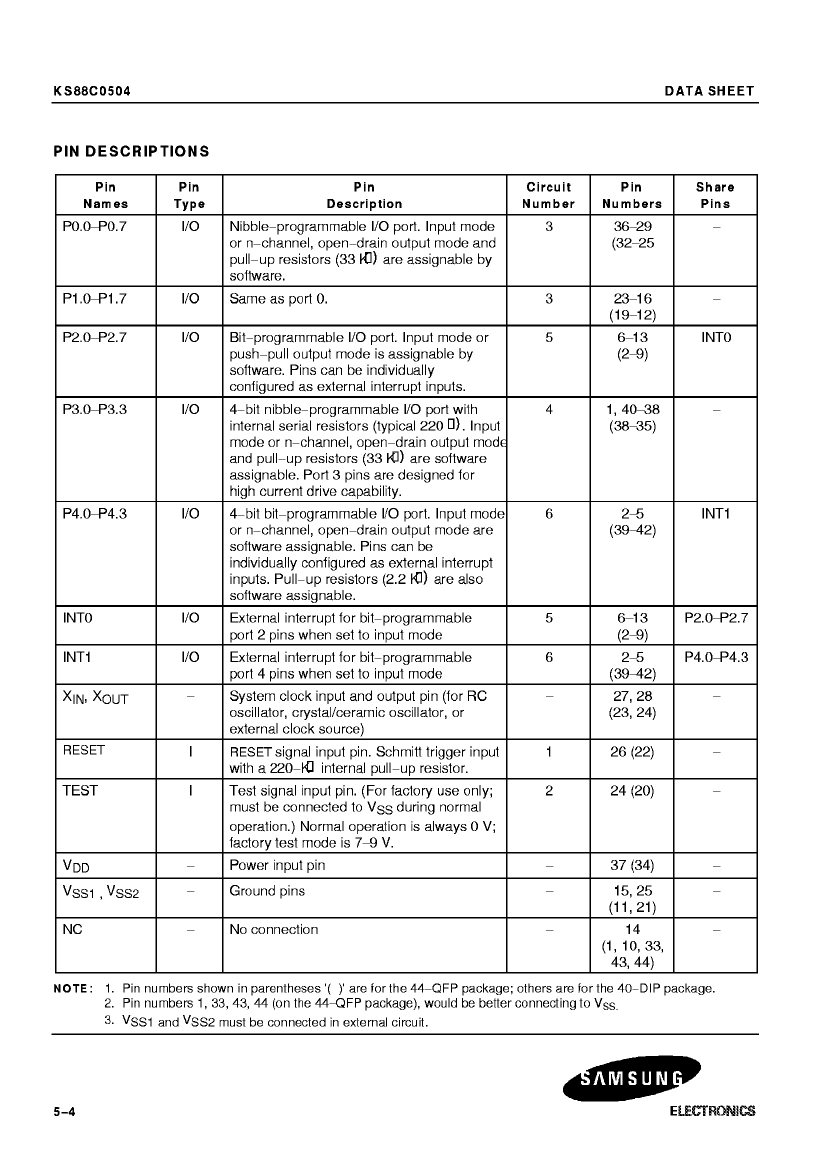

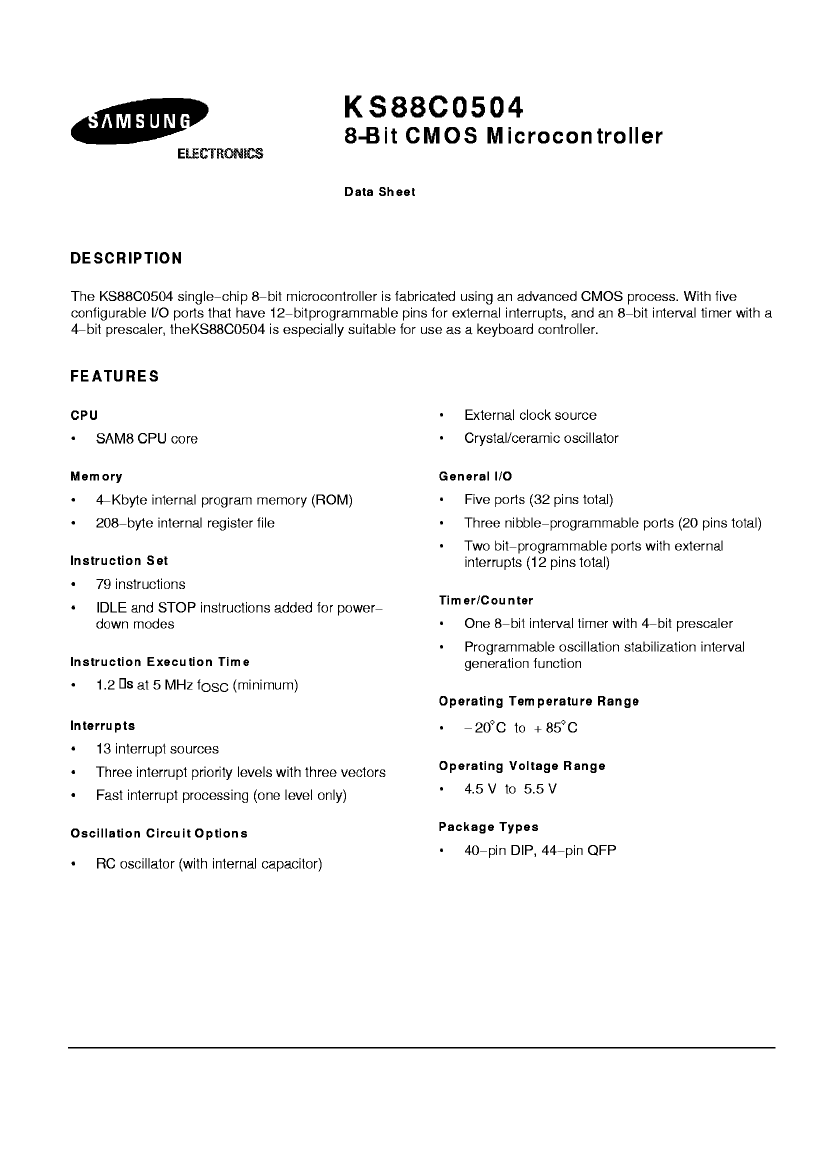

KS88C0504P Overview

Microcontroller, 8-Bit, MROM, CMOS, PDIP40, 0.600 INCH, DIP-40

Parameter Name	Attribute value
Maker	SAMSUNG

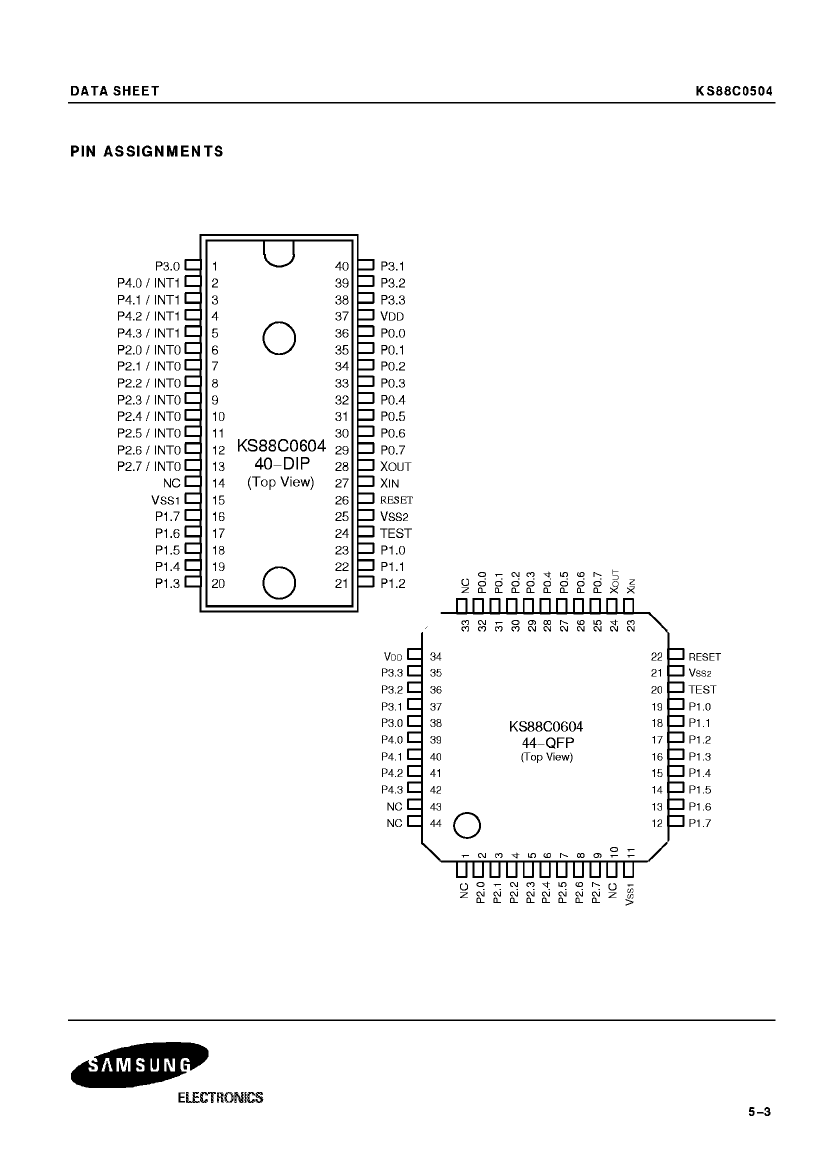

Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	8
maximum clock frequency	5 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T40
length	52.42 mm
Number of I/O lines	32
Number of terminals	40
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	5.08 mm
Maximum slew rate	20 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

	KS88C0504P	KS88C0504FP
Description	Microcontroller, 8-Bit, MROM, CMOS, PDIP40, 0.600 INCH, DIP-40	Microcontroller, 8-Bit, MROM, CMOS, PQFP44, 10 X 10 MM, QFP-44
Maker	SAMSUNG	SAMSUNG
Parts packaging code	DIP	QFP
package instruction	DIP,	QFP,
Contacts	40	44
Reach Compliance Code	unknown	unknown
Has ADC	NO	NO
bit size	8	8
maximum clock frequency	5 MHz	5 MHz
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	R-PDIP-T40	S-PQFP-G44
length	52.42 mm	10 mm
Number of I/O lines	32	32
Number of terminals	40	44
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QFP
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	FLATPACK
Certification status	Not Qualified	Not Qualified
ROM programmability	MROM	MROM
Maximum seat height	5.08 mm	2.3 mm
Maximum slew rate	20 mA	20 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	OTHER	OTHER
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	0.8 mm
Terminal location	DUAL	QUAD
width	15.24 mm	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
