ATN-65-13 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Optical fiber> ATN-65-13

Preview

ATN-65-13: DescriptionFixed Attenuator, 1260nm Min, 1360nm Max, SC/PC Connector,; CategoryWireless rf/communication Optical fiber; File Size445KB，3 Pages; ManufacturerCorning Cable Systems; Environmental Compliance

Download Datasheet Parametric View All

ATN-65-13 Overview

Fixed Attenuator, 1260nm Min, 1360nm Max, SC/PC Connector,

ATN-65-13 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Corning Cable Systems
Reach Compliance Code	unknown
Attenuation tolerance	10%
Communication standards	GR-910
Connection Type	SC/PC CONNECTOR
Fiber optic equipment types	FIXED ATTENUATOR
Number of channels	1
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Maximum operating wavelength	1360 nm
Minimum operating wavelength	1260 nm
Nominal operating wavelength	1310 nm

Preview

Download Datasheet

View All

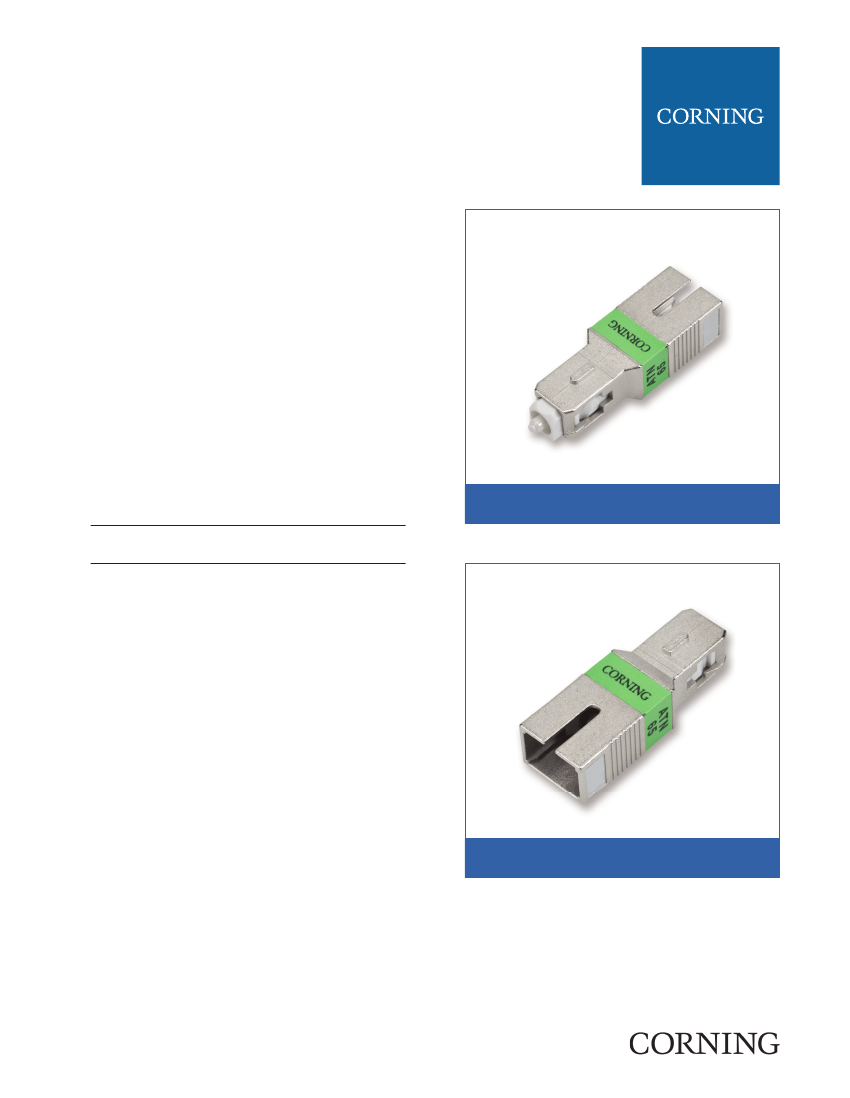

In-Line Optical Attenuators, Flat Wavelength,

SC APC

SC APC, 13 dB

Corning offers in-Line, flat wavelength optical attenua-

tors that are easily inserted between the connector and

adapter in an “in-line” configuration and are compatible

with SC, ST

®

compatible, FC, MU, LC and angled SC

and FC connectors. A fundamental element of these

Corning attenuators is the zirconia ferrule containing a

specially selected attenuating fiber. This special fiber

minimizes the effect of modal interference and gives the

component a flat spectral response. It is extremely stable

over the wavelength range of 1260 to 1360 nm and 1430

to 1580 nm. These in-line, flat wavelength attenuators

are available in ultra PC (≤½- 55 dB) and angled PC (≤½

-65 dB) finish to meet the most demanding network re-

flectance requirements.

Features and Benefits

Fully compatible with SC fiber optic connectors

No intermateability concerns

Numerical identification mark on housing

Easy indication of attenuation levels

Attenuator incorporated inside standard SC adapter

housings

Compatible with standard distribution panels

Part Number: ATN-65-13

Standards

Design and Test Criteria

Telcordia GR-910 issue 2

performance requirements

Part Number: ATN-65-13

Product Specification ATN-65-13_NAFTA_AEN

Page 1 | Revision date 2014-02-21
