K8P1615UQB-PE4B000 datasheet, PDF

K8P1615UQB-PE4B000: DescriptionFlash, 1MX16, 60ns, PDSO48, 20 X 12 MM, LEAD FREE, PLASTIC, TSOP1-48; Categorystorage storage; File Size1MB，50 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric View All

K8P1615UQB-PE4B000 Overview

Flash, 1MX16, 60ns, PDSO48, 20 X 12 MM, LEAD FREE, PLASTIC, TSOP1-48

Parameter Name	Attribute value
Maker	SAMSUNG
Parts packaging code	TSOP1
package instruction	20 X 12 MM, LEAD FREE, PLASTIC, TSOP1-48
Contacts	48
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	60 ns
startup block	BOTTOM/TOP
JESD-30 code	R-PDSO-G48
length	18.4 mm
memory density	16777216 bit
Memory IC Type	FLASH
memory width	16
Number of functions	1
Number of terminals	48
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
organize	1MX16
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Programming voltage	2.7 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
type	NOR TYPE
width	12 mm

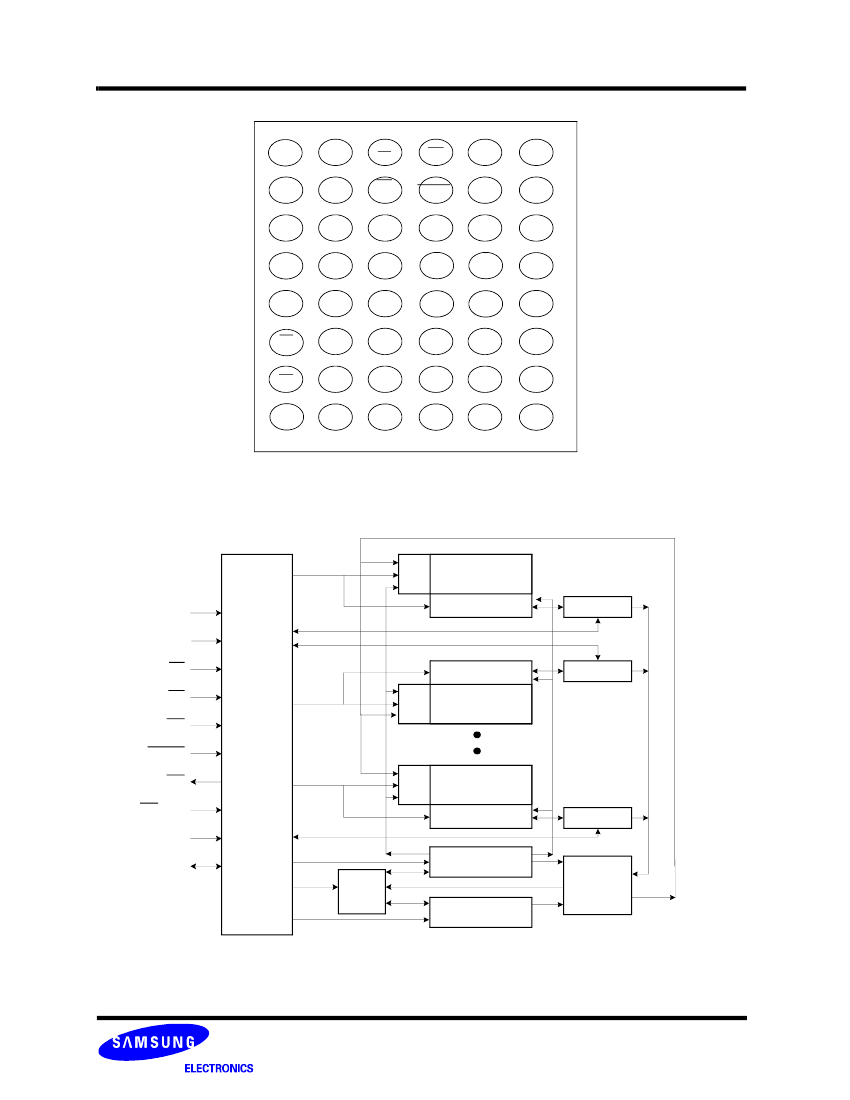

K8P1615UQB

FLASH MEMORY

16Mb B-die Page NOR Specification

INFORMATION IN THIS DOCUMENT IS PROVIDED IN RELATION TO SAMSUNG PRODUCTS,

AND IS SUBJECT TO CHANGE WITHOUT NOTICE.

NOTHING IN THIS DOCUMENT SHALL BE CONSTRUED AS GRANTING ANY LICENSE,

EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE,

TO ANY INTELLECTUAL PROPERTY RIGHTS IN SAMSUNG PRODUCTS OR TECHNOLOGY. ALL

INFORMATION IN THIS DOCUMENT IS PROVIDED

ON AS "AS IS" BASIS WITHOUT GUARANTEE OR WARRANTY OF ANY KIND.

1. For updates or additional information about Samsung products, contact your nearest Samsung office.

2. Samsung products are not intended for use in life support, critical care, medical, safety equipment, or similar

applications where Product failure couldresult in loss of life or personal or physical harm, or any military or

defense application, or any governmental procurement to which special terms or provisions may apply.

* Samsung Electronics reserves the right to change products or specification without notice.

Revision 1.0

July 2007
