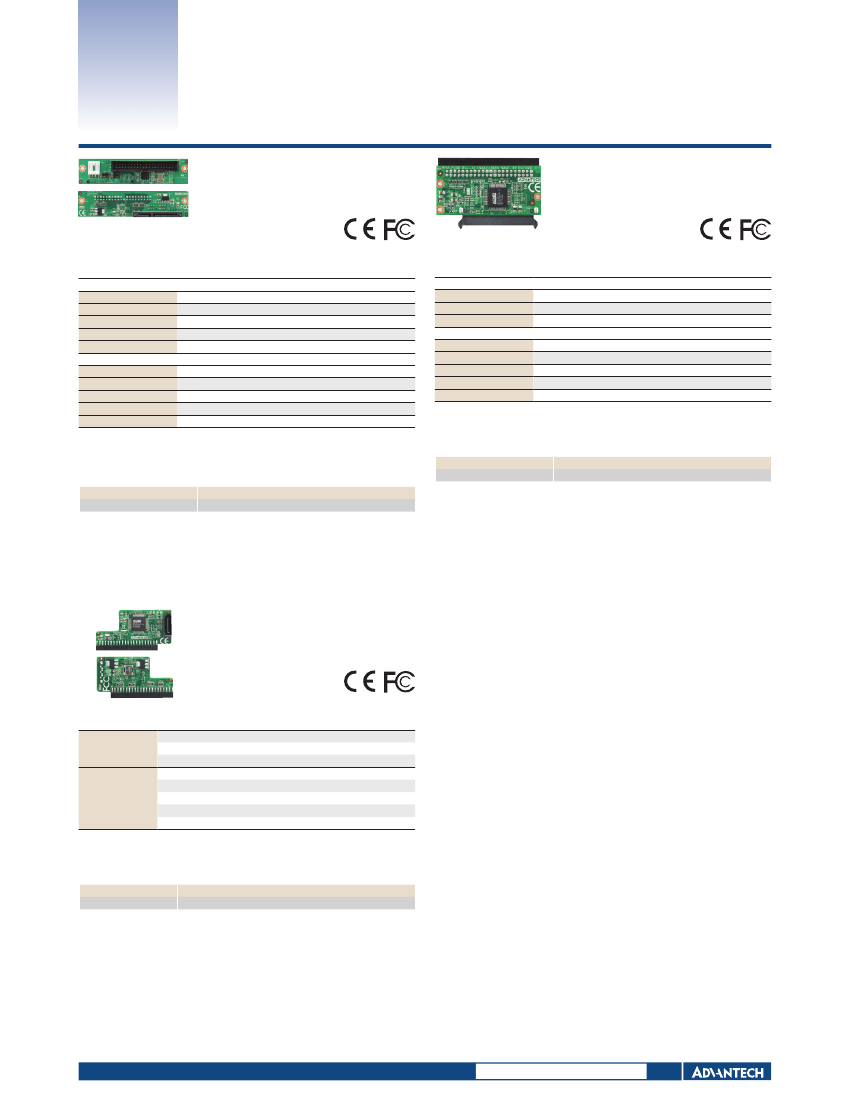

Riser Cards
PCM-233A
SATA to IDE Module for SATA
Device
Specifications
General
Chipset
ACARD ARC772N
Power Input
+3.3 V, +5 V, +12 V
PATA Connector
40-pin IDE connector
SATA Connector
7+15P SATA connector
External Power
+5 V, +12 V
Mechanical and Environmental
Dimensions (L x W)
98 x 32 mm (3.8" x 0.9")
Weight
30g
Operating Temperature
0 ~ 60° C (32 ~ 140° F)
Storage Temperature
-45 ~ 85° C (-40 ~ 185° F)
Operating Humidity
0% ~ 90% relative humidity, non-condensing
PCM-233B
SATA to IDE (44-pin) Converter
Module
Specifications
General
Chipset
ACARD ARC772N
PATA Connector
44-pin IDE connector
SATA Connector
7+15P SATA connector
Mechanical and Environmental
Dimensions (L x W)
53 x 25 mm (2.1" x 1.0")
Weight
30g
Operating Temperature
0 ~ 60° C (32 ~ 140° F)
Storage Temperature
-45 ~ 85° C (-40 ~ 185° F)
Operating Humidity
0% ~ 90% relative humidity, non-condensing
Ordering Information
Standard
Part Number
PCM-233B-00A1E
Description
SATA to IDE (44-pin) converter module
Ordering Information
Standard
Part Number
PCM-233A-00A1E
Description
SATA to IDE module for SATA device
PCM-233C
IDE (44-pin) to SATA Converter
Module
Specifications
General
Chipset
PATA Connector
SATA Connector
Dimensions (L x W)
Weight
Operating Temperature
Storage Temperature
Operating Humidity
ACARD ARC772N
44-pin IDE Connector
7P SATA Connector
53 x 25 mm
30g
0 ~ 60° C (32 ~ 140° F)
-45 ~ 85° C (-40 ~ 185° F)
0% ~ 90% relative humidity, non-condensing
Mechanical and
Environmental
Ordering Information
Standard
Part Number
PCM-233C-00A1E
Description
IDE (44-pin) to SATA converter module
Online Download
www.advantech.com/products
All product specifications are subject to change without notice
Last updated : 11-Jun-2012
