Precision 2.4mm Female to N Female Adapter
TECHNICAL DATA SHEET
Precision 2.4mm Female to N Female Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
2.4mm Female
50 Ohms
N Female
50 Ohms
Precision
Straight
PE9502
Electrical Specifications
Frequency Range, GHz
Maximum VSWR
Maximum Insertion Loss, dB
DC to 18
1.15:1
0.21
Mechanical Specifications
Temperature
Operating Range,deg C

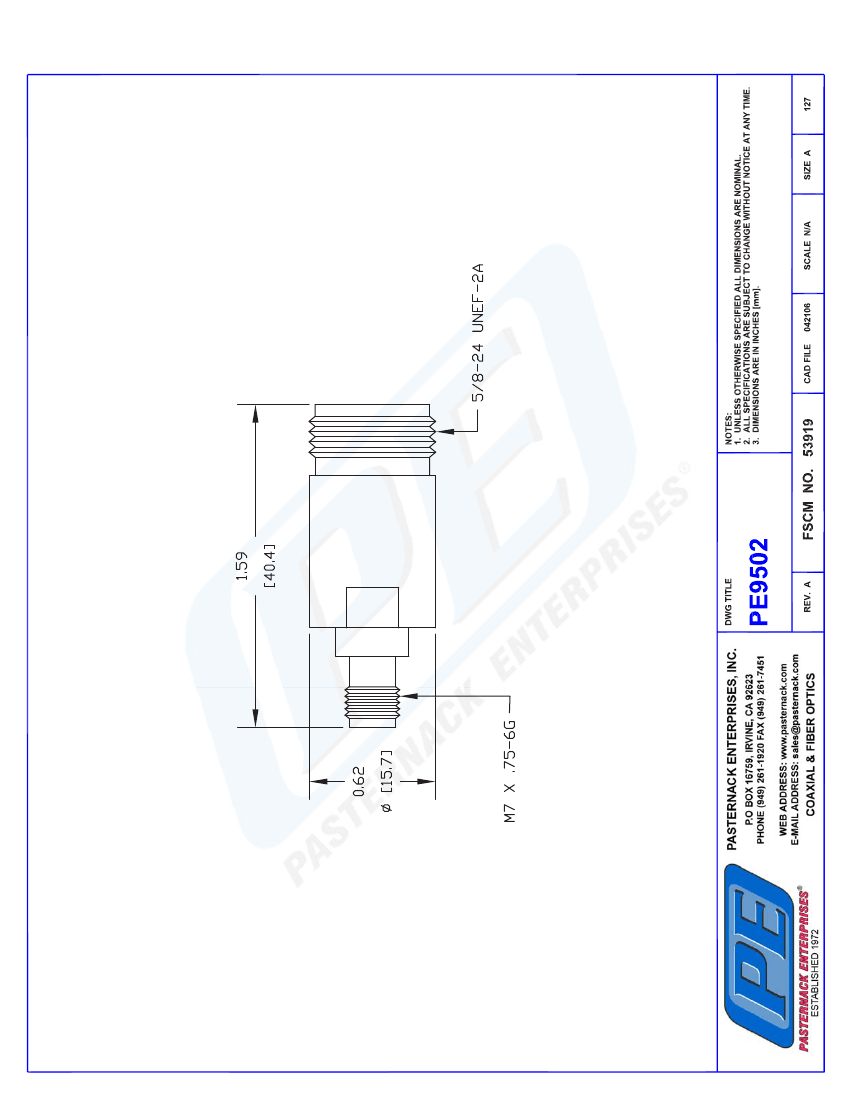

Size
Length, in [mm]
Width/Dia., in [mm]
.
-55 to +100
1.59 [40.39]
0.62 [15.75]
Connector 1
Type
Mating Cycles
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Mating Cycles
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
2.4mm Female
500
Beryllium Copper, Gold
MIL-G-45204, Type II, Class 1
Passivated Stainless Steel
ASTM A380
PPO
N Female
500
Beryllium Copper, Gold
MIL-G-45204, Type II, Class 1
Passivated Stainless Steel
ASTM A380
PPO
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Precision 2.4mm Female to N Female Adapter PE9502
PE9502 REV
1
Precision 2.4mm Female to N Female Adapter
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/2.4mm-female-n-female-straight-adapter-pe9502-p.aspx
PE9502
Precision 2.4mm Female to N Female Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
PE9502 REV
2
