215-532-22 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 215-532-22

215-532-22: Description＂IMPACT WRENCH 3/8＂＂ PISTOL HD＂; CategoryLED optoelectronic/LED photoelectric; File Size288KB，5 Pages; ManufacturerMarl International; Websitehttps://www.leds.co.uk; Environmental Compliance

Download Datasheet Parametric View All

215-532-22 Overview

＂IMPACT WRENCH 3/8＂＂ PISTOL HD＂

215-532-22 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
color	GREEN
Configuration	SINGLE
Maximum forward current	0.02 A
Nominal luminous intensity	6000 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
method of packing	BULK
peak wavelength	525 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

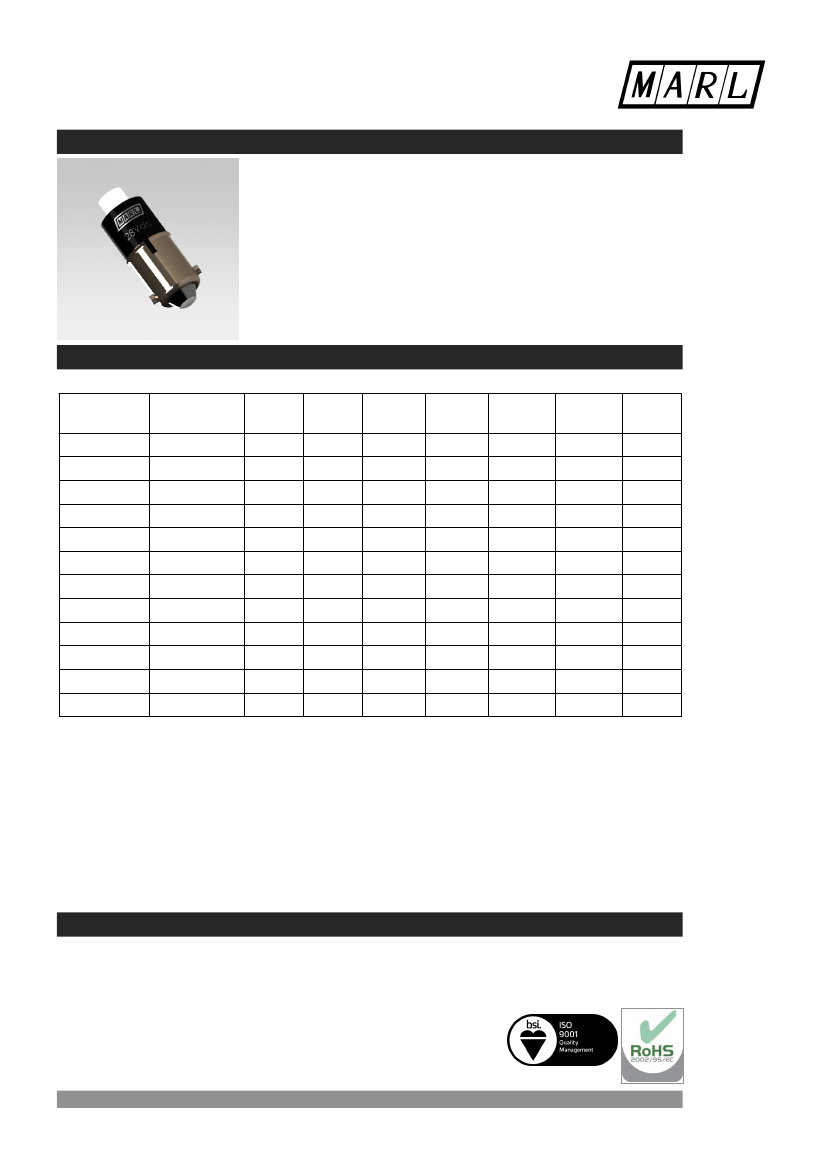

215 series

features

• Direct replacement for T3 ¼ Bayonet Automobile Cap

• Flat topped for enhanced, even illumination of large lens

areas

• Reverse polarity options available

• Ideal for industrial pushbutton switches and annunciator

panels

• Centre contact Anode as standard

• Pack Quantity = 20 Pieces

specifications

Ordering information and typical characteristics (Ta = 25°C)

Part

Number

215-501-21-38

215-521-21-38

215-532-21-38

215-930-21-38

215-997-21-38

215-993-21-38

215-501-23-38

215-521-23-38

215-532-23-38

215-930-23-38

215-997-23-38

215-993-23-38

White

Warm White

Colour

Red

Yellow

Green

Blue

White

Warm White

Red

Yellow

Green

Voltage

Vac/dc

12 Vdc

28 Vdc

Current

(mA)

785

Call

* See below

-30 - +85

-40 - +100

Luminous

Intensity

(mcd)

600

800

140

785

Call

600

800

Wave

Length

(nm)

630

585

515

465

* See below

630

585

515

Operating

Temp.

(°C)

-40 - +80

-30 - +85

-40 - +80

Storage

Temp.

(°C)

-40 - +100

De-rating

Graphs

* = Voltage for 20mA product is Vf at 20mA, not Vopr

- Products must be de-rated according to the de-rating information. Each de-rating graph refers to

specific LEDs. Please refer to graphs on page 2.

- Luminous intensity is measured at 20mA on a discrete LED unless otherwise stated.

to order

to order please contact us on: t:

+44 (0)1229 582 430

+44 (0)1229 585 155

sales@marl.co.uk

www.leds.co.uk

intention of providing information, which must not be copied or released to a third party without prior

written consent from marl international limited. the information provided does not constitute part of any

order or contract and should not be regarded as a representation relating to either products or service. no

responsibility can be assumed for inaccuracies or printing errors. marl international limited reserve the right

to alter without notice the specification or any conditions of supply for product or service.

BS EN ISO 9001:2008

approved manufacturer

marl international limited - dsn 215 - version 2013-03-04-173253

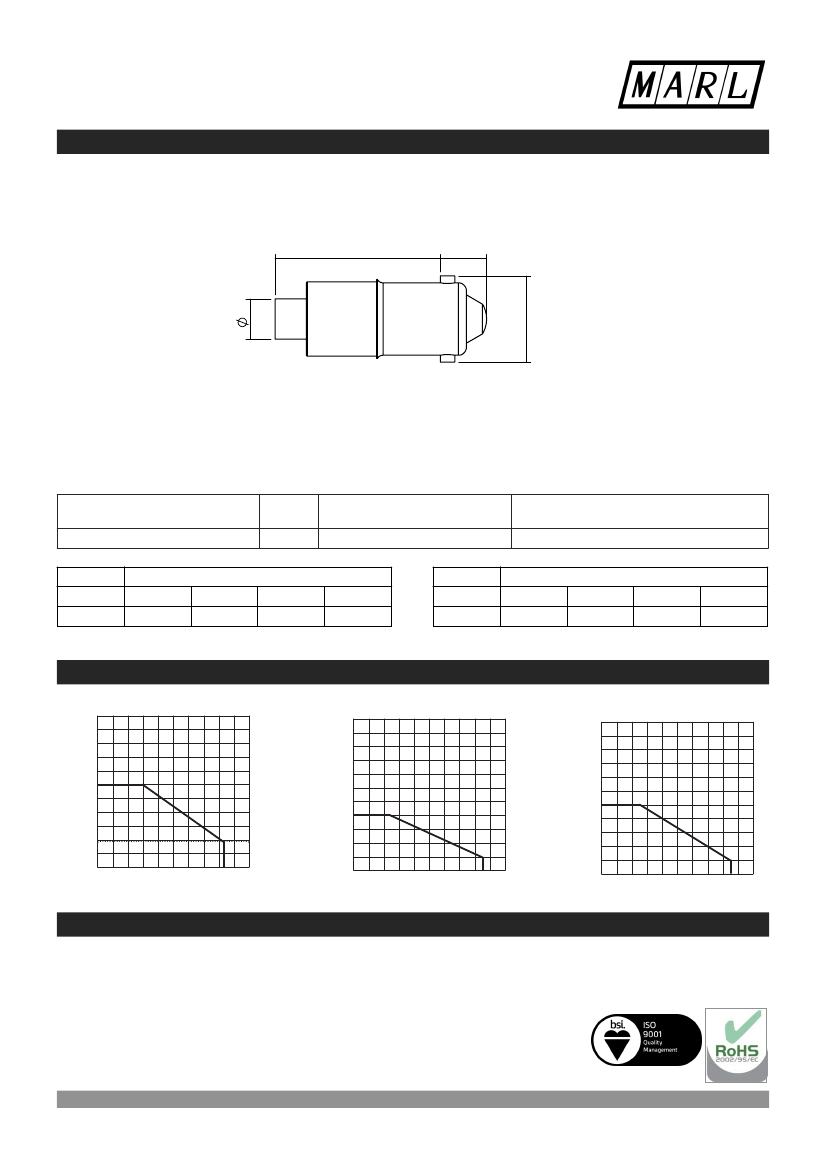

page 1 of 5

filament replacement leds

215 series

design considerations

Single-Chip LEDs

All devices feature water clear high intensity LEDs as standard. In devices where discrete LEDs are used, the single

chip LED devices have been modified by the removal of the domed portion of the encapsulation (flat-topped) to provide

even illumination of switches and annunciators. Non flat topped versions are also available.

Flat-topping does not apply to devices using surface-mounted device (SMD) LEDs.

Product Evaluation

Filament replacement LEDs have been specifically designed to meet the primary objective of providing improved reliability. As

this product range is suitable for both new-build and retro-fit, (sometimes in very old systems), a wide range of illuminated push

button switches and lamp holders can be encountered. Due to subjectivity, evaluation of the LED type is recommended,

(samples of all standard models are available). Care should be taken to correctly simulate operating ambient light conditions to

ensure that the correct device has been selected to maximise viewing characteristics such as viewing angle, colour

compatibility and on/ off contrast ratio.

Electro-Static Discharge (ESD)

Build up of electro-static discharge occurs in many situations involving people moving and handling products. The range of

possible situations is very diverse but voltage levels as high as several thousand volts can and do arise in many individual

situations. When an operator charged up to these levels handles a static sensitive device, there is a very probable likelihood

that the device will be irreversibly damaged. It is essential that precautions are taken at all stages during manufacture and

assembly of these products. Although LEDs were never considered to be static sensitive devices, changes in manufacturing

technology and materials used to produce higher intensity products over a large range of the wavelength spectrum have

changed this. Marl has an approved system of ESD control from goods in, through production and into final packing and

despatch. Marl recommend all users of LED based products follow the guidelines of BS 100015.

Power De-Rating

The forward voltage/ current value of an LED is dependant upon the ambient temperature of the environment in which it is

operated. Therefore, care must be taken to operate the LED at the correct voltage/ current values, depending upon the

ambient temperature. Consequently, a recommendation regarding operating voltages and currents is given in order to address

these temperature effects. This recommendation is termed ‘de-rating’. It is usual for forward voltages and currents to be

specified for ambient temperature of 25°C. However, because the values of these qualities vary with temperature, marl should

be contacted if the device is to be operated at a temperature significantly higher than 25°C. Marl accept no liability for any

product that is operated higher than the stated voltage.

to order

to order please contact us on: t:

+44 (0)1229 582 430

+44 (0)1229 585 155

sales@marl.co.uk

www.leds.co.uk

providing information, which must not be copied or released to a third party without prior written consent from marl

international limited. the information provided does not constitute part of any order or contract and should not be regarded as a

representation relating to either products or service. no responsibility can be assumed for inaccuracies or printing errors. marl

international limited reserve the right to alter without notice the specification or any conditions of supply for product or service.

BS EN ISO 9001:2008

approved manufacturer

marl international limited - dsn 215 - version 2013-03-04-173253

page 5 of 5
