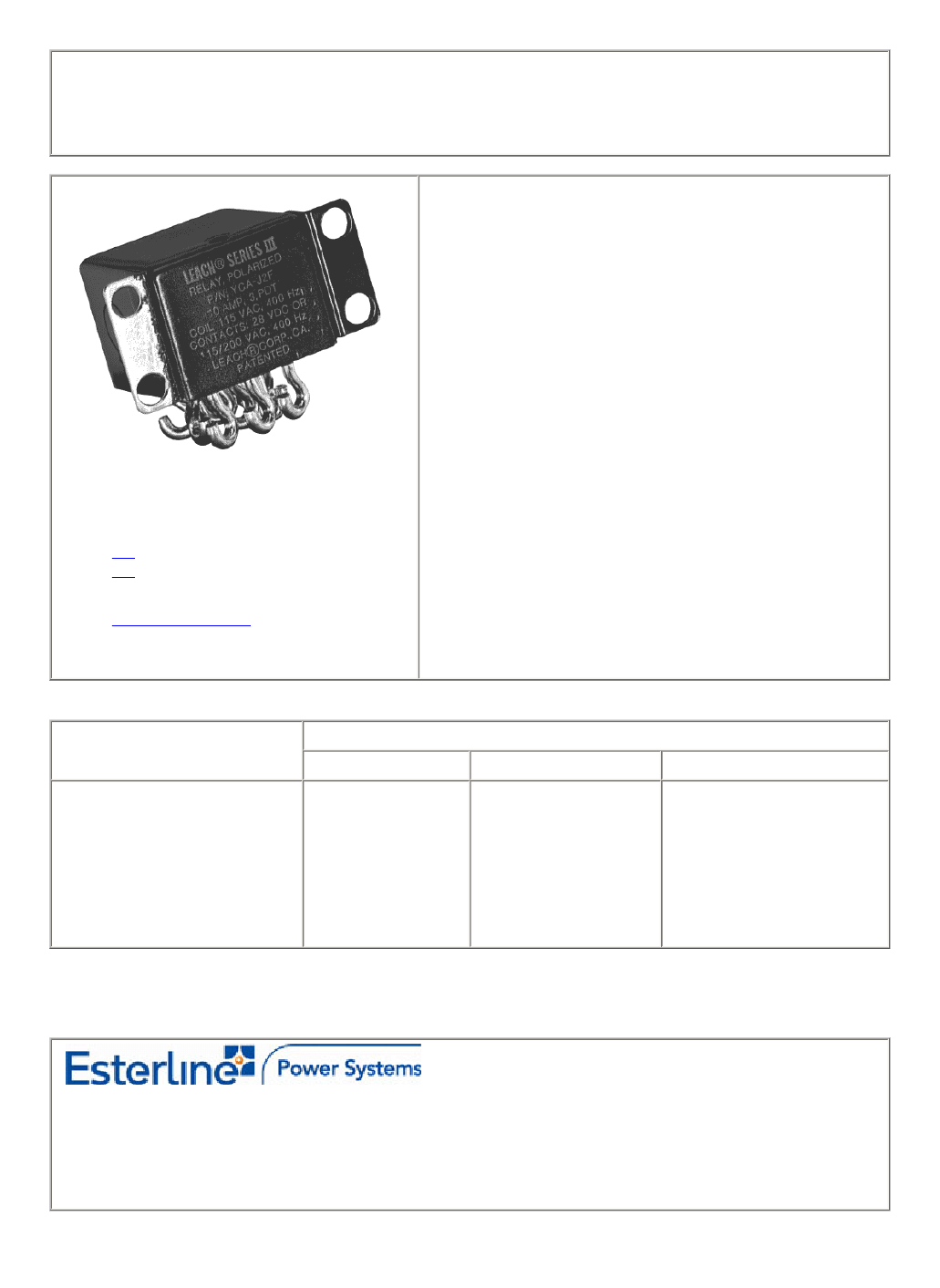

YCA
ENGINEERING DATA SHEET
RELAY - NONLATCH - AC COIL
3 PDT, 10 AMP
All welded construction
Contact arrangement
Designed to the
performance standards of
3 PDT
MIL-PRF-83536
PRINCIPLE TECHNICAL CHARACTERISTICS
Contacts rated at
Weight
Dimensions max.
of case in mm
Low level, 28 Vdc and 115/200
Vac 400Hz, 3Ø, case grounded
30 grams max
20.6 x 16.3 x 20.6
Special models available upon request.
Hermetically sealed, corrosion resistant metal can.
APPLICATION NOTES:
102
007
APPLICABLE SOCKET:
SO-1065-10392/10393
CONTACT ELECTRICAL CHARACTERISTICS
Contact rating per pole
and load type [1]
Resistive
Inductive [2]
Motor
Lamp
Overload
Rupture
Low level [3]
Time current characteristics [4]
Load current in Amps
@28 Vdc
10
6
4
2
30
40
-
-
@115 Vac, 400 Hz, 1Ø
10
8
4
2
60
80
-
-
@115/200 Vac, 400 Hz, 3Ø
10
8
4
-
60
80
-
-
Featuring
LEACH
©
power and control solutions
www.esterline.com
AMERICAS
6900 Orangethorpe Ave.
P.O. Box 5032
Buena Park, CA 90622
.
.
Tel: (01) 714-736-7599
Fax: (01) 714-670-1145
EUROPE
2 Rue Goethe
57430 Sarralbe
France
.
.
Tel: (33) 3 87 97 31 01
Fax: (33) 3 87 97 96 86
ASIA
Units 602-603 6/F Lakeside 1
No.8 Science Park West Avenue
Phase Two, Hong Kong Science Park
Pak Shek Kok, Tai Po, N.T.
Hong Kong
Tel: (852) 2 191 3830
Fax: (852) 2 389 5803
Data sheets are for initial product selection and comparison. Contact Esterline Power Systems prior to choosing a component.
Date of issue: 01/07
- 117 -
Page 1 of 4
COIL CHARACTERISTICS (Vac)
Vac 400 Hz
CODE
Nominal operating voltage
Maximum operating voltage
Maximum pickup voltage
- Cold coil at +125° C
- During high temp test at +125° C
- During continuous current test at +125° C
Maximum drop-out voltage
Coil current maximum milliAmperes at +25° C
90
95.4
103.5
30
40
23
24.6
25.9
10
120
95
100
105
30
28
F
115
122
J
28
30
K
115
122
YCA
Vac 50 thru 400 Hz
GENERAL CHARACTERISTICS
Temperature range
Minimum operating cycles (life) at rated load
Minimum operating cycles (life) at 25% rated load
Dielectric strength at sea level
- All circuits to ground and circuit to circuit
- Coil to ground
Dielectric strength at altitude 25,000 m
Insulation resistance
- Initial (500 Vdc)
- After environmental tests (500 Vdc)
Sinusoidal vibration (A and D mounting)
Sinusoidal vibration (G and J mounting)
Random vibration
- Applicable specification
- Method
- Test condition - A and D mounting
- Test condition - E, J and G mounting (E in track)
- Duration
Shock (A and D mounting)
Shock (G and J mounting)
Maximum contact opening time under vibration and shock
Operate time at nominal voltage@25°C
Release time at nominal voltage@25°C
Contact make bounce at nominal voltage@25°C
Contact release break bounce at nominal voltage@25°C
Weight maximum
MIL-STD-202
214
1G (0.4G
2
/Hz, 50 to 2000 Hz)
1E (0.2G
2
/Hz, 50 to 2000 Hz)
15 minutes each plane
200G / 6 ms
100G / 6 ms
10 µs
15 ms max
25 ms max
1 ms max
0.1 ms max
30 grams
100 M
Ω
min
50 M
Ω
min
0.12DA / 10 to 70 Hz
30G / 70 to 3000 Hz
0.12DA / 10 to 57 Hz
20G /57 to 3000 Hz
1250 Vrms
1000 Vrms
500 Vrms [5]
-70°C to +85°C
50,000 [2]
200,000
Date of issue:
01/07
- 118 -
Page 2 of 4
NOTES
YCA
[1] Standard Intermediate current test applicable, relay can also switch low level load while switching any of the
other rated loads on adjacent contacts.
[2] Inductive load life, 10,000 cycles.
[3] Low level endurance test: contact load of 10 to 50 millivolt, 10 to 50 microamp, 100 Ohm max contact
resistance.
[4] Refer to MIL-PRF-83536 for details.
[5] 500 Vrms with silicone gasket compressed, 250 Vrms all other conditions.
NUMBERING SYSTEM
YCA A
1
F
Basic series designation__________________________|
|
|
|
1-Mounting Style (A,D,G or J)_________________________|
|
|
2-Terminal Types (1,2,4)__________________________________|
|
3-Coil Voltage, see coil characteristics (F,J,K)______________|
MOUNTING STYLES
.64
D
16.26 MAX
3.96
A
16.26 MAX
27.38
20.57
MAX
6.35
3.38
FULL R
6 PLACES
20.57 18.08
20.57 MAX
12.70
3.58 TYP
26.97
32.51
MAX
20.57 MAX
5.69 DIA
#4-40 UNC-2A
STUD
3 PLACES
3.38
TYP
16.26 MAX
26.97
9.53
.81
J
3.58
TYP
45.21
10.29
15.24
16.26 MAX
G
12.70
20.57 MAX
20.57 MAX
12.70
.64
20.57 MAX
6.35
32.51 MAX
Date of issue:
01/07
- 119 -
Page 3 of 4

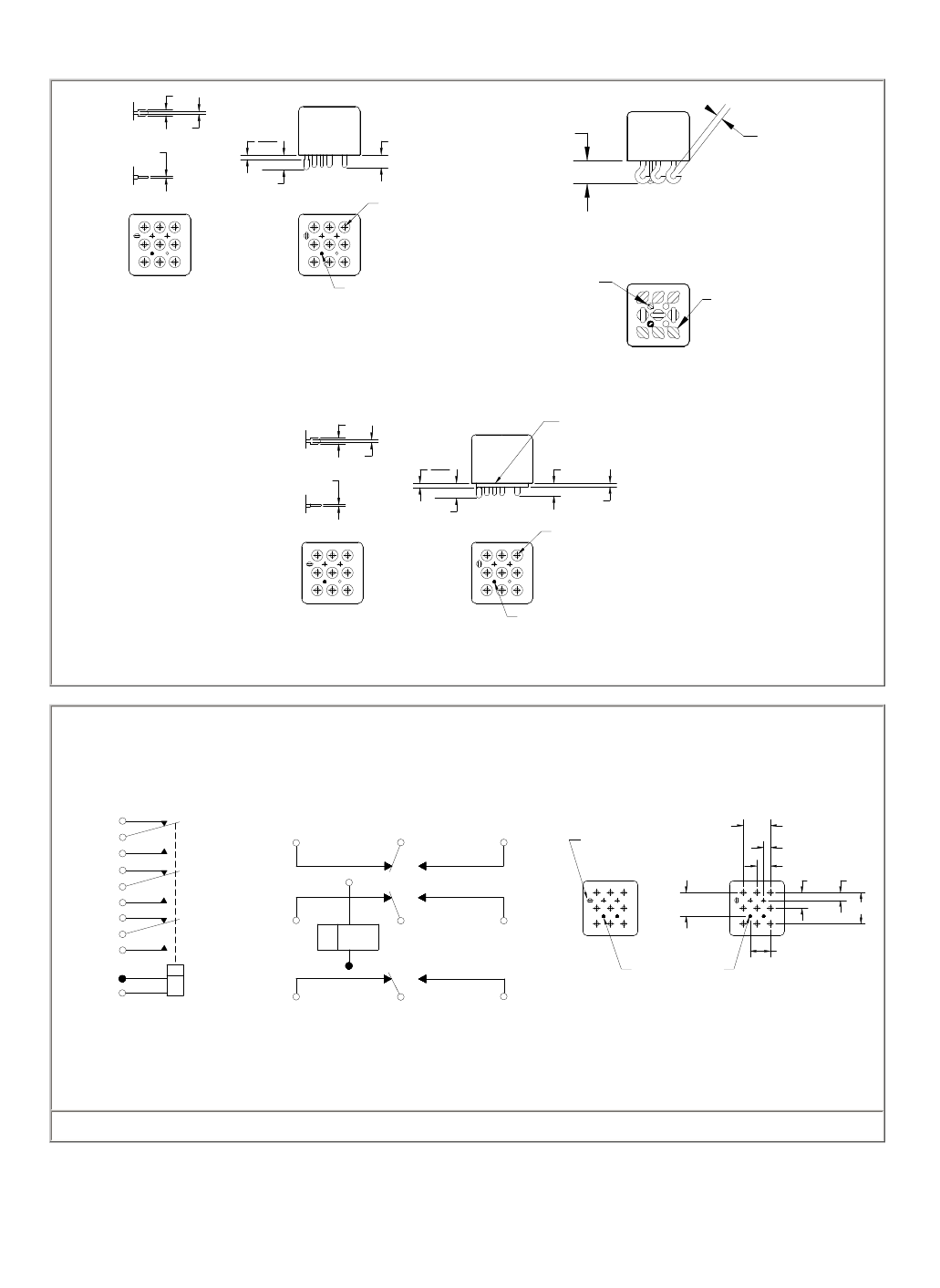

TERMINAL TYPES
1.88
1.02
.43
+
.03
-
YCA
1.78
1.27
1
4.32
7.62
2
2.03
5.08
1.57
+
.05
-
9 PLACES
-X2
-X1
X2
X1
1.02
+
.05
-
2 PLACES
Ø.76±.05
2 PLACES
Ø1.57±.05
9 PLACES
COIL CODE J
TERMINALS-TIN/LEAD
COIL CODE F,K
TERMINALS-TIN/LEAD
1.88
1.02
.43
+
.03
-
SILICONE RUBBER
GASKET
1.78
1.27
4
4.32
1.27
5.08
1.57
+
.05
-
9 PLACES
-X2
-X1
X2
X1
1.02
+
.05
-
2 PLACES
COIL CODE J
COIL CODE F,K
TERMINALS-GOLD PLATED
SCHEMATIC DIAGRAM
C3
C2
C1
B3
B2
B1
A3
A2
A1
COIL POLARITY NOT APPLICABLE
WIRING DIAGRAM
STANDARD TERMINAL LAYOUT
10.16
C3
C2
C1
POLARIZING PIN
2.54
5.08
X2
3
2
1
-X2
-X1
C
B
A
3
X2
2
1
C
B
A
5.84
2.92
11.68
8.76
X1
B3
B2
B1
7.62
X1
X1
X2
A3
A2
A1
CONTRASTING BEAD
COIL TYPE J
COIL TYPE F,K
TOL: .XX ±.03; .XXX ±.010
Date of issue:
01/07
- 120 -
Page 4 of 4
Application notes
RELAYS AND TEMPERATURE VARIATIONS
N°102
Most relay parameters are specified as maximum values over the rated temperature range of the specific relay. Users often
find that key parameters differ significantly at ambient temperature (20-25°C) and sometimes fall into the trap of specifying
their system around these ambient parameters. Additionally the actual temperature experienced by the relay can be far in
excess of existing ambient temperatures due to the heat generated by the coil current and the contact load. Figure 1 is the
summary of temperature effects on relay electrical characteristics.
Temperature
Increase
Decrease
Resistance
UP
DOWN
Current
DOWN
UP
Operating
Voltage
UP
DOWN
Release
Voltage
UP
DOWN
Operate Time
UP
DOWN
Release Time
UP
DOWN
Fig. 1
The following formulas are sometimes useful in calculating the effects shown above.
1. Change in coil resistance due to change of ambient temperature can be calculated by the following formula.
R = R
20
[1 + .0039 (T-20)]
Where: R = Coil resistance at given temperature
R
20
= Coil resistance at 20°C
T = °C Ambient temperature
"Rule of Thumb" : For each 10°C change of temperature, coil resistance will change approximately 4%.
2. High and low temperature pick up voltage:
E
2
= E
1
K
2,
Where: E
2
= Pick Up Voltage at T
2
temperature
E
1
= Pick Up Voltage at 20°C
K
2
= Coefficient of correction found on the graph in Fig. 2 at T
2
Date of issue: 6/00
- 15 -
Page 1 of 2
