TCS2230-01-1101 datasheet, PDF

Datasheet> All Categories > The connector> The connector> TCS2230-01-1101

TCS2230-01-1101: DescriptionCircular DIN Connector, 3 Contact(s), Female, Panel Mount, Solder Lug Terminal, Socket; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerHosiden Corporation

Download Datasheet Parametric View All

TCS2230-01-1101 Overview

Circular DIN Connector, 3 Contact(s), Female, Panel Mount, Solder Lug Terminal, Socket

TCS2230-01-1101 Parametric

Parameter Name	Attribute value
Maker	Hosiden Corporation
Reach Compliance Code	unknown
Body/casing type	SOCKET
Connector type	CIRCULAR DIN CONNECTOR
Contact point gender	FEMALE
Contact pitch circle diameter	7 mm
DIN compliance	YES
DIN standard	41524
Electromagnetic interference shielding	NO
IEC compliance	NO
MIL compliance	NO
Installation method	STRAIGHT
Installation type	PANEL
Options	GENERAL PURPOSE
Termination type	SOLDER LUG
Total number of contacts	3

Preview

Download Datasheet

View All

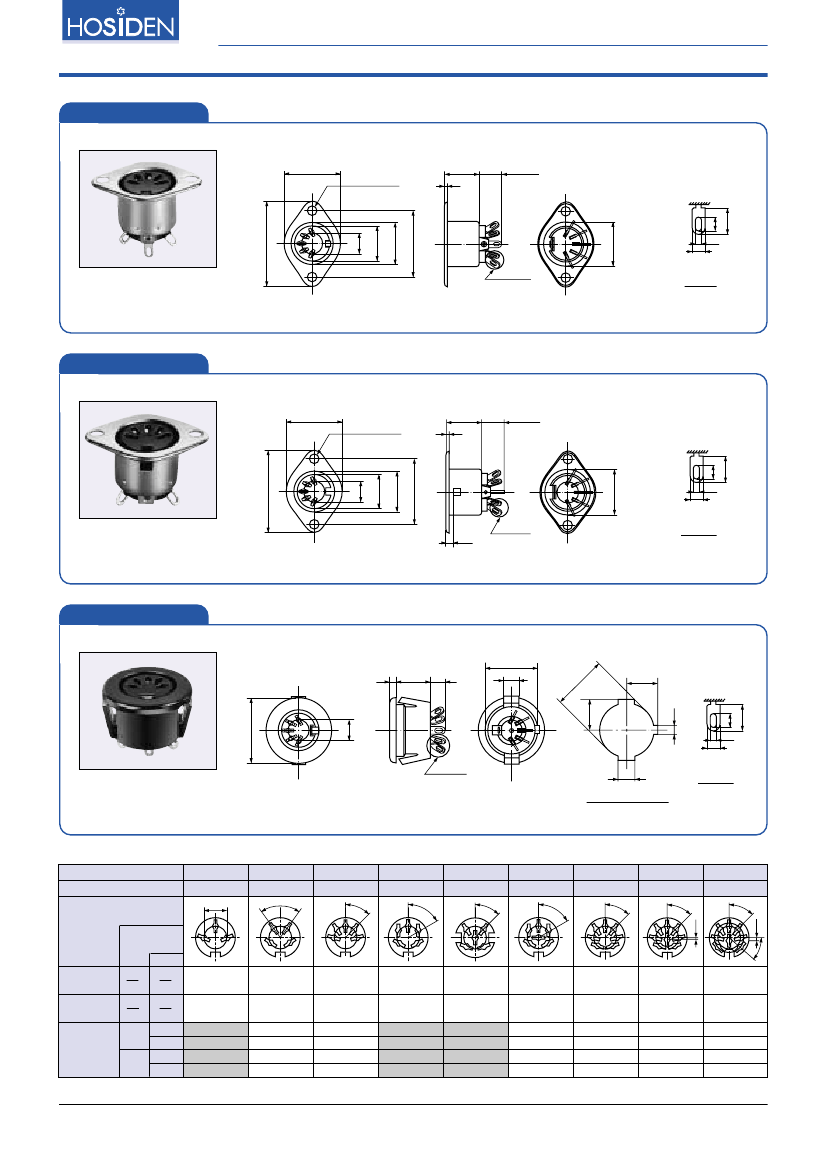

DIN Connectors (Metal Cover Type Sockets / Vertical Type Molded Sockts)

Unit: mm

TCS0200 Series

φ19

φ3.2

12.1

8 MAX

29MAX

φ11.8

φ13.9

φ14.8

22.2

φ7

1.2

2.4

DETAIL

TCS0250-01-1201

DETAIL

TCS2200 Series

19 MAX

3.2

12.1

8 MAX

29MAX

φ11.8

φ13.9

φ14.8

22.2

φ7

1.2

2.4

DETAIL

TCS2250-01-2011

2.2

DETAIL

TCS0830 Series

φ17.8

11.4

6.5

2.8

10.3

φ22

φ7

1.2

2.4

DETAIL

TCS0835-01-2011

5.5

MOUNTING HOLE

DETAIL

DIN Standard No.

Number of Contact

Arrangment

Chassis Material

Thickness

Color

41524

72°

41524

(Front View)

45327

45322

45329

45326

5.2

0.7

5.2

0.9

TCS0200

Series

TCS2200

Series

TCS0830

Series

2.0

1.0

Black

Gray#1

Black

Gray#1

TCS0230-01-1101 TCS0240-01-1201 TCS0250-01-1201 TCS0350-01-1201 TCS0450-01-1101 TCS0260-01-1201 TCS0270-01-1201 TCS1080-01-2011 TCS0280-01-1201

TCS2230-01-1101 TCS2240-01-2011 TCS2250-01-2011 TCS2220-01-0301 TCS2210-01-1101 TCS2260-01-2011 TCS2270-01-2011 TCS2280-01-2011 TCS2290-01-2011

TCS0834-01-2011 TCS0835-01-2011

TCS0834-01-2021 TCS0835-01-2021

TCS0834-01-2051 TCS0835-01-2051

TCS0834-01-2061 TCS0835-01-2061

TCS0836-01-2011 TCS0837-01-2011 TCS0838-01-2011 TCS0839-01-2011

TCS0836-01-2021 TCS0837-01-2021 TCS0838-01-2021 TCS0839-01-2021

TCS0836-01-2051 TCS0837-01-2051 TCS0838-01-2051 TCS0839-01-2051

TCS0836-01-2061 TCS0837-01-2061 TCS0838-01-2061 TCS0839-01-2061
