LF355MX datasheet, PDF - EEWORLD Datasheet

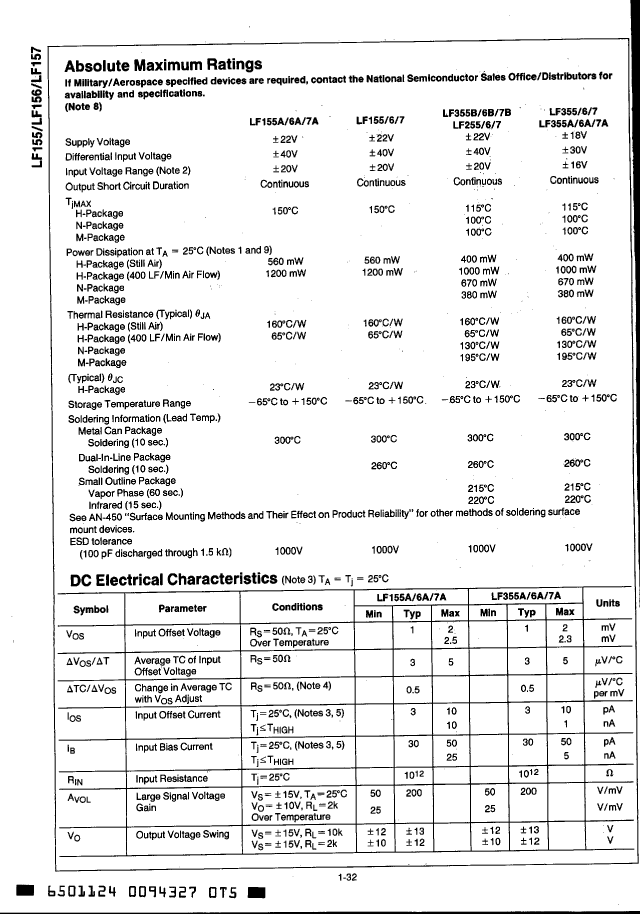

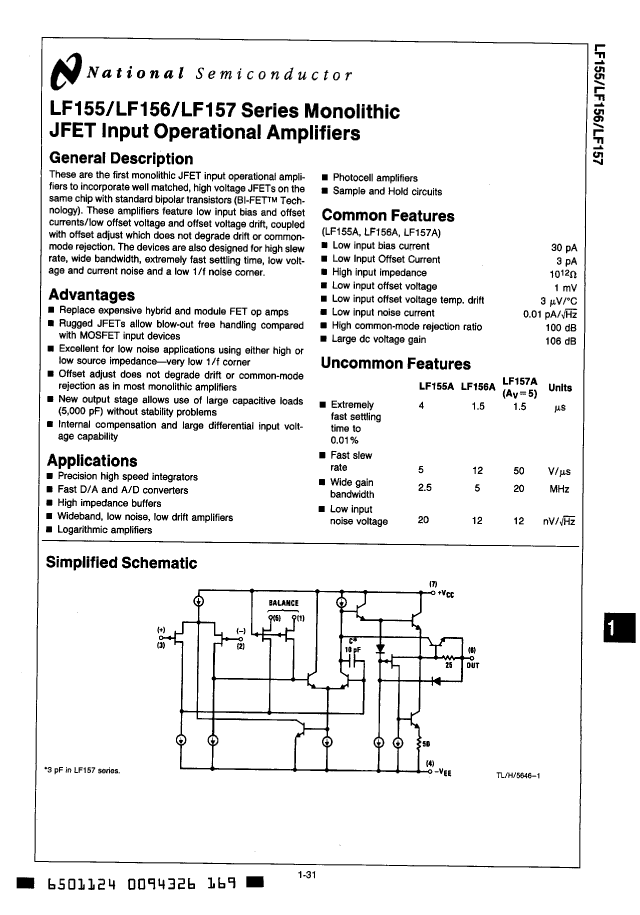

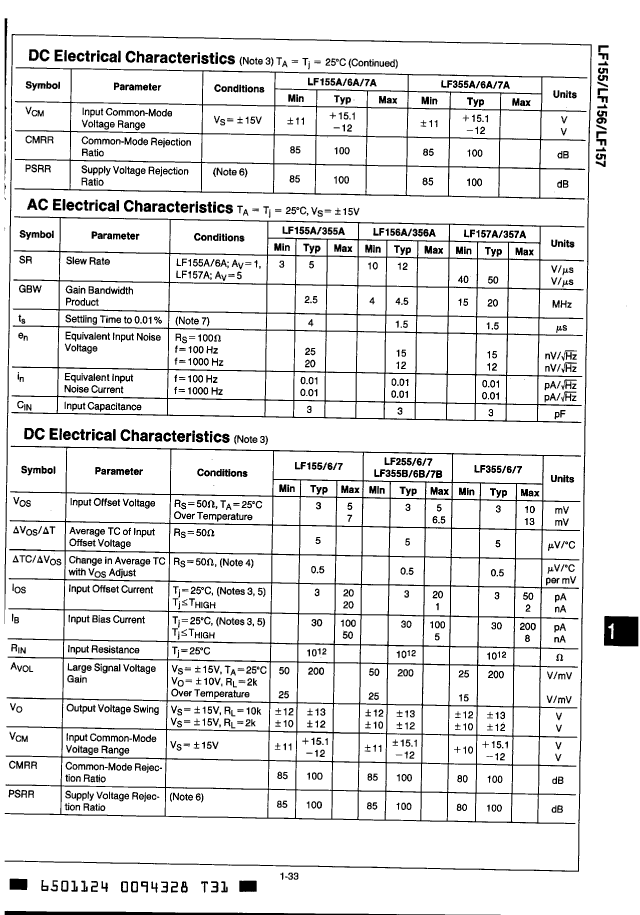

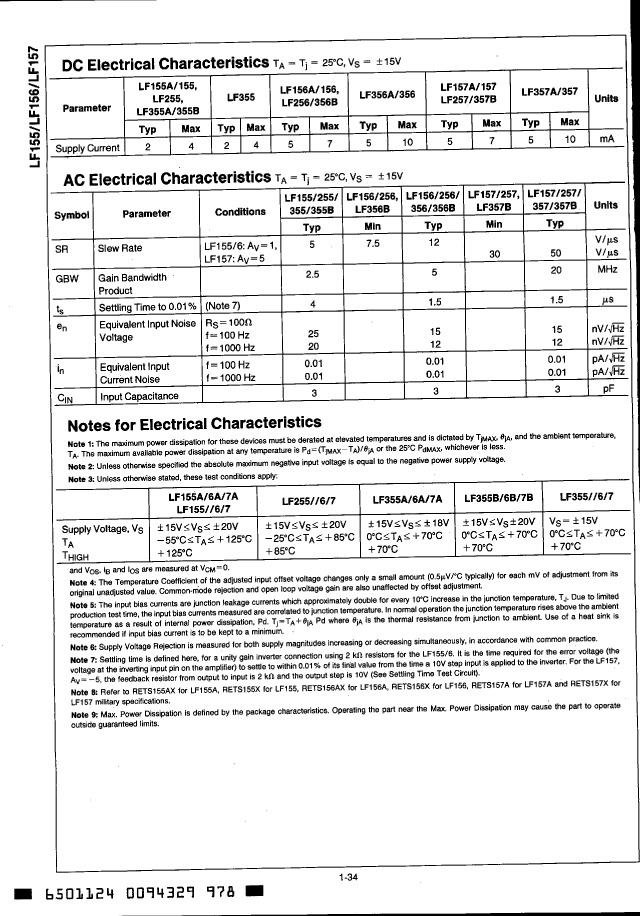

LF355MX: DescriptionOperational Amplifier, 1 Func, 13000uV Offset-Max, BIPolar, PDSO8, 0.150 INCH, PLASTIC, SOP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size939KB，16 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

LF355MX Overview

Operational Amplifier, 1 Func, 13000uV Offset-Max, BIPolar, PDSO8, 0.150 INCH, PLASTIC, SOP-8

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	SOP,
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.0002 µA
Nominal Common Mode Rejection Ratio	100 dB
Maximum input offset voltage	13000 µV
JESD-30 code	R-PDSO-G8
length	4.9 mm
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum seat height	1.75 mm
Nominal slew rate	5 V/us
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	2500 kHz
width	3.9 mm

National Semiconductor is now part of

Texas Instruments.

http://www.ti.com/

for the latest technical

information and details on our current products and services.
