Coaxial Pin Diode Switch
0.5 - 18.0 GHz
Features
q
q
q
q
q
ML 6510-400D Series
V3.00
Broad Frequency Ranges
High Isolation
SMA Connectors
Hermetically Sealed
TTL Compatible
Description
The ML 6510-400D Series of SP4T switches from
M/A-COM offers high isolation and low insertion loss in
a standard outline. All the switches have an integral TTL
compatible driver with fast switching or higher power
handling options available as standard. Devices are sup-
plied with SMA male or female connectors. As an
option a multiway D connector can be specified for d.c.
connections.
Specifications
@ +25°C
Frequency
Range
(GHz)
0.5 - 2.0
2.0 - 6.0
6.0 - 12.0
12.0 - 18.0
6.0 - 18.0
0.5 - 18.0
Max.
Insertion
Loss
(dB)
1.6
2.0
2.7
3.1
3.1
3.1
Min.
Isolation
(dB)
65
65
65
60
60
60
Max.
Transition
Time
(ns)
10
50
10
50
10
50
10
50
10
50
10
50
Max.
Switching
Speed
(ns)
30
250
30
250
30
250
30
250
30
250
30
250
Max.
Peak
Power
(W)
0.1
1.0
0.1
1.0
0.1
1.0
0.1
1.0
0.1
1.0
0.1
1.0
Max.
CW
Power
(W)
0.1
0.5
0.1
0.5
0.1
0.5
0.1
0.5
0.1
0.5
0.1
0.5
Max.
VSWR
1.4
1.6
1.8
2.0
2.0
2.0
Part
Number
ML6513-401D
ML6513-402D
ML6514-401D
ML6514-402D
ML6515-401D
ML6515-402D
ML6516-401D
ML6516-402D
ML6517-401D
ML6517-402D
ML6518-401D
ML6518-402D
Specifications Subject to Change Without Notice.
M/A-COM, Inc.
North America:
Tel. (800) 366-2266
Fax (800) 618-8883
s
1
Asia/Pacific: Tel. +81 (03) 3226-1671
Fax +81 (03) 3226-1451
s
Europe: Tel. +44 (1344) 869 595
Fax +44 (1344) 300 020

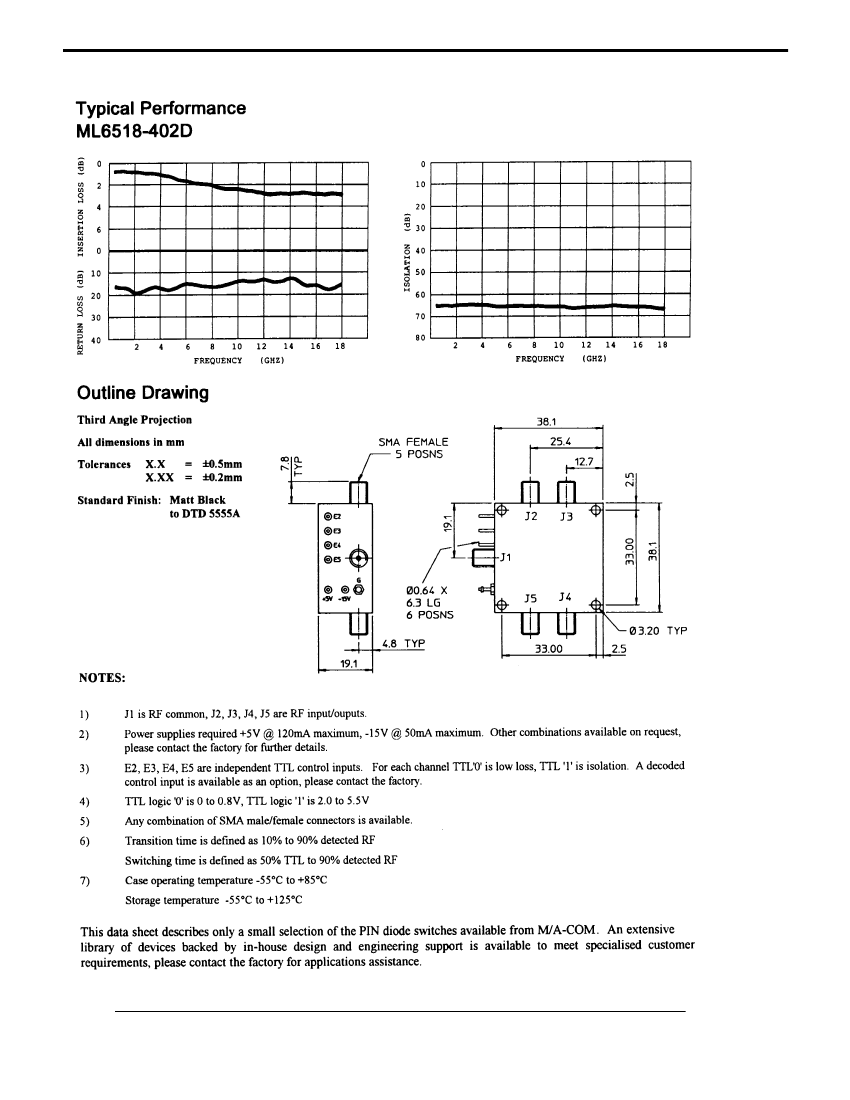

Coaxial Pin Diode Switch
ML 6510-400D Series
V3.00
Specifications Subject to Change Without Notice.
2
North America:
Tel. (800) 366-2266
Fax (800) 618-8883
s
M/A-COM, Inc.
Asia/Pacific: Tel. +81 (03) 3226-1671
Fax +81 (03) 3226-1451
s
Europe: Tel. +44 (1344) 869 595
Fax +44 (1344) 300 020
