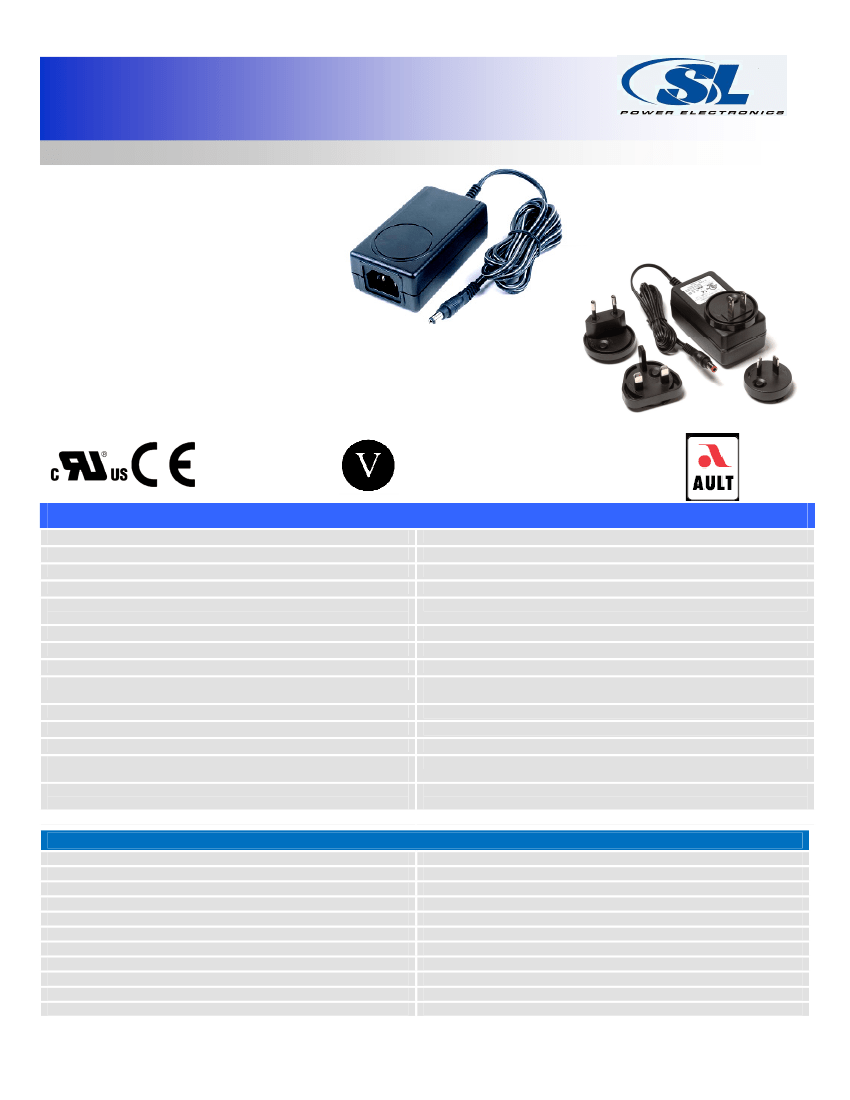

MENB1030
Universal 30 Watt Series
Medical Switch-Mode Power Supply
•
100-240VAC Universal Input
•
Meets EISA2007, CEC Efficiency Level V,
3 Year Warranty
EU (EC) No 278/2009 Phase II
•
Certified to UL/EN60601-1
•
5V to 48V outputs, up to 32W
•
Modified and Custom Designs Available
•
Regulated Output with Low Ripple
•
Impact-Resistant Polycarbonate Enclosure
•
No load Power Consumption <0.3W
•
Desktop & Wall Plug Styles
RoHS
Specifications
AC Input
Input Current
Inrush Current
Input Fuse
Efficiency
Output Voltage
Output Power
Ripple and Noise
Line & Load Voltage Regulation
Transient Response
Minimum Load
Case Material:
Case Dimensions:
Output Connector:
All Specifications are typical at nominal input, full load at 25
°
C unless otherwise stated.
100-240VAC, -/-10%, 47-63 Hz, 1∅
100VAC: 0.9A
60A peak, 264Vac, cold start
3.15A Internal Primary Current Fuse is provided
Meets EISA2007, CEC Efficiency Level V,
and EU(EC) No. 278/2009 Phase II requirements
See chart
See chart
1% pk-pk max., 20MHz BW
Line: +/- 1%, Load: +/-5%
500µs max., 50% load step, typical
Not required
Black 94V0 Polycarbonate
95 x 54 x 31mm. See outline drawing
Weight = 200g
2.5mm barrel type (Ault #3) connector,
center contact (+). Other options available
MTBF
Hold-up Time
Turn-on Time
Topology
Overload Protection
Short Circuit Protection
EMC
Safety Standards
Dielectric Withstand
Operating Temperature
Storage Temperature
Relative Humidity
Altitude
Output Cable:
>100,000
hours calculated
18 ms min. @ 115VAC, 60 msec @ 230VAC
2 seconds, max.
Switching – Fixed Frequency Flyback
Hiccup Mode
Hiccup Mode
See chart below
EN/IEC/CSA/UL60601-1
Input-Output: 5,656VDC, Input-GND: 1,500 Vac,
Output-GND: 500Vdc
0° to 40°C, no derating
-30 to +85°C
5% to 95%, non-condensing
0 to 10,000 ft
5V – 9V models:
#18AWG
(SPT-1), 1,500mm, 2 conductor
12V – 24V models: #18AWG (UL1185), 1,500mm, 2 conductor
EMC Specifications
Conducted Emissions
Radiated Emissions
Line Frequency Harmonics
Voltage Fluctuations/Flicker
Static Discharge Immunity
Radiated RF Immunity
EFT/Burst Immunity
Line Surge Immunity
Conducted RF Immunity
Power Frequency Magnetic Field Immunity
Voltage Dip Immunity
EN55011 Class B, FCC Part 15, Class B.
EN55011 Class B, FCC Part 15, Class B.
EN61000-3-2, Class A
EN61000-3-3
EN61000-4-2, 6kV Contact Discharge, 8kV air discharge
EN61000-4-3, 3V/m.
EN61000-4-4, 2kV/5kHz.
EN61000-4-5, 1kV differential, 2kV common-mode
EN61000-4-6, 3Vrms
EN61000-4-8, 3A/m
EN61000-4-11, Criteria A
______________________________________________________________________________________________________________________________
1 of 2
SL Power Electronics Corp
•
6050 King Drive Ventura, CA 93003
•
Phone 805.486.4565
•
Fax 858.712.2040
•
Email: info@slpower.com
•
www.slpower.com
MENB1030
Universal 30 Watt Series
Medical Switch-Mode Power Supply
Model Number
MENB1030A0503F01
MENB1030A0703F01
MENB1030A0903F01
MENB1030A1203F01
MENB1030A1403F01
MENB1030A1503F01
MENB1030A1803F01
MENB1030A2403F01
MENB1030A4803F01
3 Year Warranty
Output Current (max)
4.00 A
3.00 A
3.00 A
2.50 A
2.10 A
2.00 A
1.67 A
1.33 A
0.63 A
Volts (V)
5V
7.5 V
9V
12 V
14 V
15 V
18 V
24 V
48 V
Max Watts
20.0 W
22.5 W
27.0 W
30.0 W
29.4 W
30.0 W
30.0 W
31.9 W
30.0 W
Ripple (Vp-p max)
50 mV
75 mV
90 mV
120 mV
140 mV
150 mV
180 mV
240 mV
480 mV
Notes: Part numbers above include #3 output connector and IEC320 C14 grounded input receptacle. See below for other options.
Model Number Key
MENB 1 030 A VV 03 F 01
Model
Input Connector:
Output Connector:
Output Voltage:
Model
Output Pow er:
# of Outputs
Product Fam ily:
Desktop
"01" = Standard. "02" and higher indicates a m odified m odel.
"F" = IEC320 C14 grounded, Other options available, see below
"03" = 2.5m m Barrel Type Connector. Other options available, contact factory.
"05" = 5Vdc, "12" = 12Vdc, "24" = 24Vdc, etc.
"A" = Original Configuration
"030" = 30 Watts
"1" = Single Output
"M" = Medical, "E" = External, "NB" = Model Series Designator
AC Input Receptacle Options
Wall-Plug
Output Connector
IEC320 - C14
Class I
Grounded
IEC320 - C18
Class II
Ungro unde d
IEC320 - C8
Class II
"Shaver"
N. Am erica
Japan
Int e rc ha nga ble
Fixed
N. Am erica
Japan
Europe
Fixed
United
Kingdom
Fixed
Australia
Fixed
(F)
Notes:
(Q)
(N)
(C)
(B)
(M)
(G)
(H)
1. Ault #3 Connector, center contact (+).
2. Connector is Sw itchcraft 760 plug or equivalent.
Mating connector is Sw itchcraft 712A or equivalent.
3. Other connector options are available. Contact your local
SL Pow er Representative for details.
1. For desktop options, choose applicable letter above.
Notes:
2. For Wall-Plug options, choose the applicable letter above and the unit w ill be fitted w ith
the receptacle chosen. The N. A. blade version (C) w ill be an interchangeable blade.
The other options (B), (M), (G), and (H) w ill be fixed blades m olded in the case.
3. Blade Kit is available w hich w ill include one each of a EU, UK, and Australian blade. Kit part #
is KT1027K. These can be used w ith the (C) version, to allow blades to be changed.

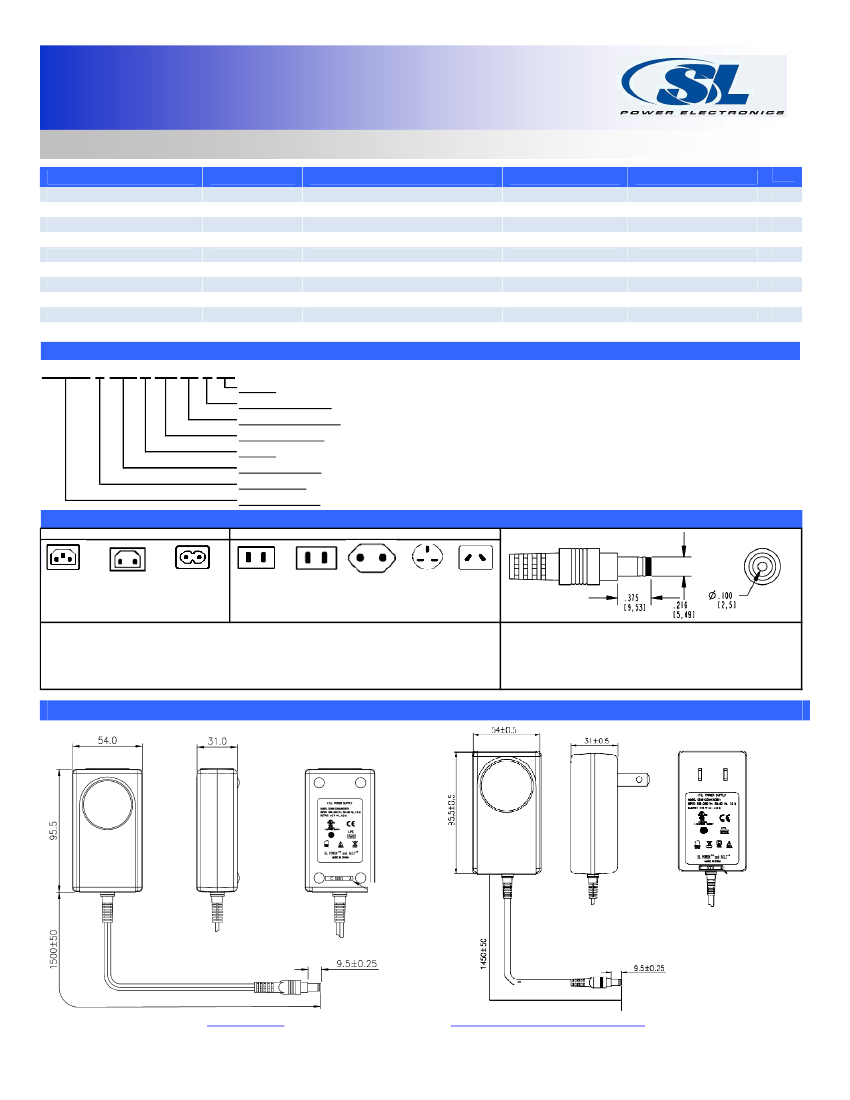

Outline Drawings
DATE
CODE
DATE
CODE
Desktop Style
Wall-plug Style (“B” Option Shown)
Data Sheet © 2011 SL Power Electronics Corp. The information and specifications contained herein are believed to be correct at the time of publication.
Rev. 5-12-2011
However, SL Power accepts no responsibility for consequences arising from reproduction errors or inaccuracies. Specifications are subject to change without notice.
