B37627K9561J060 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> B37627K9561J060

B37627K9561J060: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 16V, 0.00056uF, SURFACE MOUNT, 0402, CHIP; CategoryPassive components capacitor; File Size164KB，7 Pages; ManufacturerEPCOS (TDK)

Download Datasheet Parametric Compare View All

B37627K9561J060 Overview

CAPACITOR, CERAMIC, MULTILAYER, 16V, 0.00056uF, SURFACE MOUNT, 0402, CHIP

B37627K9561J060 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	EPCOS (TDK)
package instruction	, 0402
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.00056 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Manufacturer's serial number	B37627
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, CARDBOARD, 7 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	16 V
size code	0402
surface mount	YES
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

Multilayer Ceramic Capacitor

HC1 - Chip / Size 0402

Preleminary Data Sheet

(parameters may be changed if necessary)

HC1 / 0402 / 16V

B37627K9******

0402 High Cap Class 1 Capacitor

Todays electronic devices need more and more capacitors of small dimensions but high cap values of

class 1 characteristic (based on non-ferroelectric materials)

EPCOS HC1 capacitors provide high cap values in small chip sizes due to their special ceramic

material with a very high dielectric constant (ε) which is more than 5 times higher than the

of the

conventional C0G – material.

The electrical behaviour of these capacitors are very close to that of the C0G-material, except for the

Temperature coefficient of capacitance (TCC) which is higher but does not exceed ± 4% between –

25°C and +85°C.

Features

•

High capacitance values in class 1 dielectric

No ageing effects

No voltage dependence

No piezoelectric effect

Nearly linear temperature coefficient of capacitance (TCC)

Low dielectric absorption

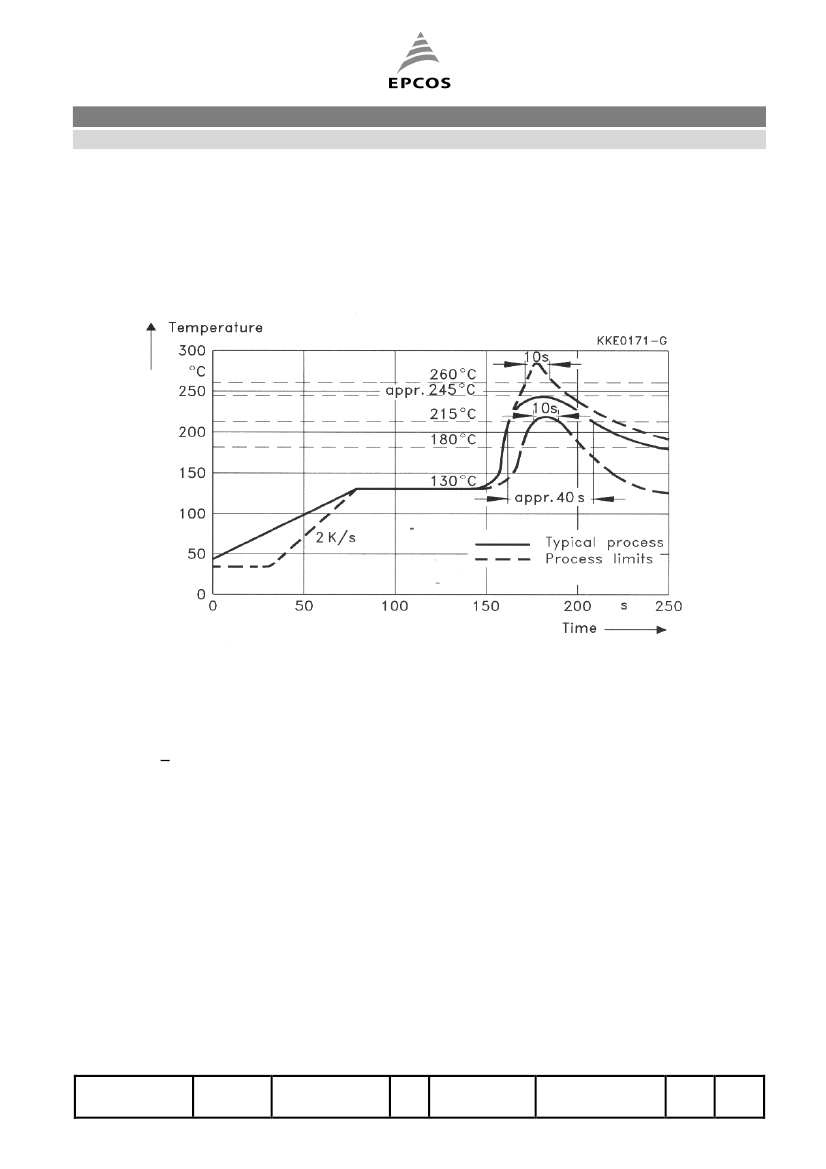

Suitable for Pb-free soldering processes

Applications

•

Mobile phones

Portable handheld products (e.g. PDA)

Notebook

Bluetooth applications

Remote keyless entry systems

ADSL – applications

USB Hub controllers

Set top boxes

ISSUE DATE

28.03.02

ISSUE

PUBLISHER

EPCOS AG

PAGE

1/7

B37627K9561J060 Related Products

	B37627K9561J060	B37627K9271K060	B37627K9471K060	B37627K9821K060	B37627K9331K060	B37627K9391K060	B37627K9391J060	B37627K9681K060
Description	CAPACITOR, CERAMIC, MULTILAYER, 16V, 0.00056uF, SURFACE MOUNT, 0402, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, 0.00027uF, SURFACE MOUNT, 0402, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, 0.00047uF, SURFACE MOUNT, 0402, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, 0.00082uF, SURFACE MOUNT, 0402, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, 0.00033uF, SURFACE MOUNT, 0402, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, 0.00039uF, SURFACE MOUNT, 0402, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, 0.00039uF, SURFACE MOUNT, 0402, CHIP	CAPACITOR, CERAMIC, MULTILAYER, 16V, 0.00068uF, SURFACE MOUNT, 0402, CHIP
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)
package instruction	, 0402	, 0402	, 0402	, 0402	, 0402	, 0402	, 0402	, 0402
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	0.00056 µF	0.00027 µF	0.00047 µF	0.00082 µF	0.00033 µF	0.00039 µF	0.00039 µF	0.00068 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	B37627	B37627	B37627	B37627	B37627	B37627	B37627	B37627
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
multi-layer	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
negative tolerance	5%	10%	10%	10%	10%	10%	5%	10%
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, CARDBOARD, 7 INCH	TR, CARDBOARD, 7 INCH	TR, CARDBOARD, 7 INCH	TR, CARDBOARD, 7 INCH	TR, CARDBOARD, 7 INCH	TR, CARDBOARD, 7 INCH	TR, CARDBOARD, 7 INCH	TR, CARDBOARD, 7 INCH
positive tolerance	5%	10%	10%	10%	10%	10%	5%	10%
Rated (DC) voltage (URdc)	16 V	16 V	16 V	16 V	16 V	16 V	16 V	16 V
size code	0402	0402	0402	0402	0402	0402	0402	0402
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
