HDSP Series
14.2 mm (0.56 inch)
Seven Segment Displays
Data Sheet
HDSP-K40x, HDSP-550x, HDSP-552x, HDSP-560x,
HDSP-562x, HDSP-570x, HDSP-572x, HDSP-H15x,
HDSP-H40x Series
Description

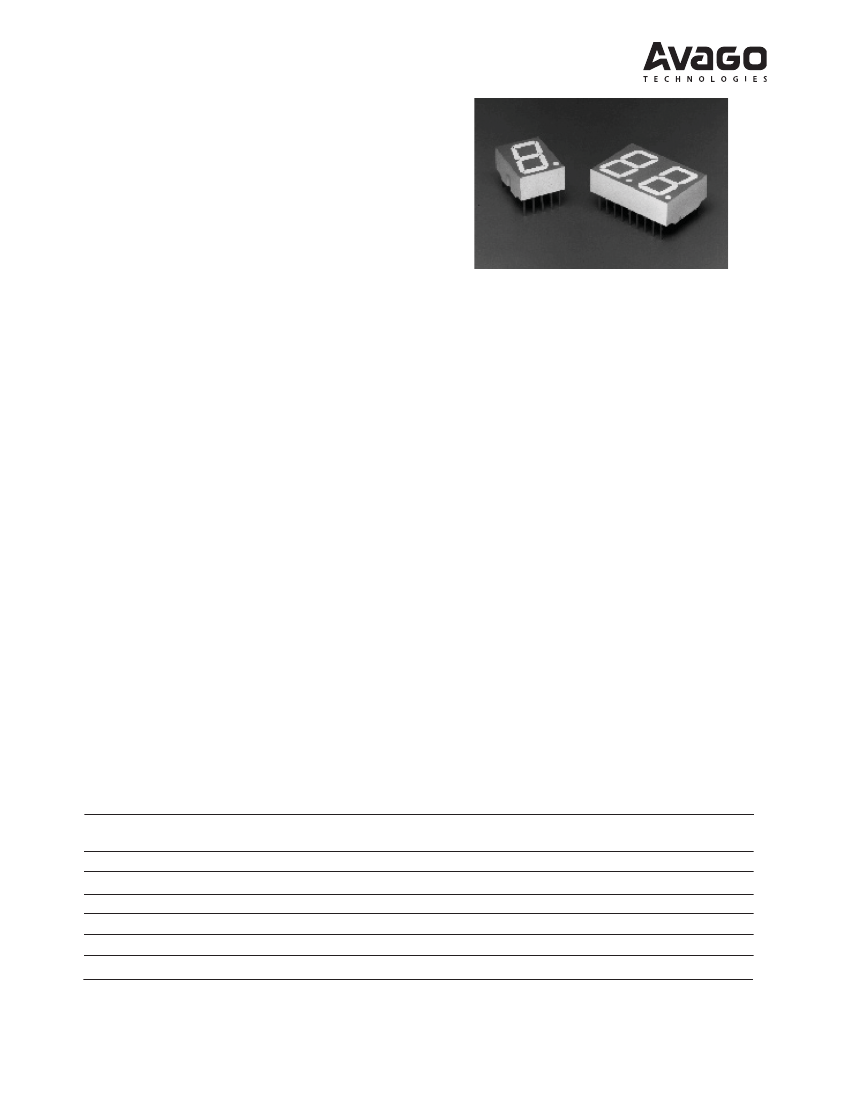

The 14.2 mm (0.56 inch) LED seven segment displays are
designed for viewing distances up to 7 metres (23 feet).
These devices use an industry standard size package and
pinout. Both the numeric and ±1 overflow devices feature a
right hand decimal point. All devices are available as either
common anode or common cathode.
These displays are ideal for most applications. Pin for pin
I
F
AVG DATA SHEET = 10 mA
K
Peak
= 1.3
I
V
DATA SHEET = 2800
Pcd
Therefore
I
v
AVG = (10 mA/10 mA)
(1.3)(2800
Pcd)
= 3640
Pcd
Features
x
Industry Standard Size
x
Industry Standard Pinout
15.24 mm (0.6 in.) DIP Leads on 2.54 mm (0.1 in.) Cen-
ters
x
Choice of Colors
AlGaAs Red, High Efficiency Red, Yellow, Green, Orange
x
Excellent Appearance
Evenly Lighted Segments
Mitered Corners on Segments
Gray Package Gives Optimum Contrast
±50° Viewing Angle
x
Design Flexibility
Common Anode or Common Cathode
Single and Dual Digits
Right Hand Decimal Point
±1. Overflow Character
x
Categorized for Luminous Intensity
Yellow and Green Categorized for Color
Use of Like Categories Yields a Uniform Display
x
High Light Output
x
High Peak Current
x
Excellent for Long Digit String Multiplexing
x
Intensity and Color Selection Option
See Intensity and Color Selected Displays Data Sheet
x
Sunlight Viewable AlGaAs
Package
Drawing
A
B
C
D
E
F
Devices
Orange
HDSP-
H401
H403
AlGaAs Red
HDSP-
[1]
H151
H153
H157
H158
HER
HDSP-
[1]
5501
5503
5507
5508
5521
5523
Yellow
HDSP-
5701
5703
5707
5708
5721
5723
Green
HDSP-
5601
5603
5607
5608
5621
5623
Description
Common Anode Right Hand Decimal
Common Cathode Right Hand Decimal
Common Anode ±1. Overflow
Common Cathode ±1. Overflow
Two Digit Common Anode Right Hand Decimal
Two Digit Common Cathode Right Hand Decimal
K401
K403
Note:
1. These displays are recommended for high ambient light operation. Please refer to the HDSP-H10X/K12X AlGaAs and HDSP-555X HER data sheet
for low current operation.
Contrast Enhancement
The objective of contrast enhancement is to provide good
display readability in the end use ambient light. The con-
cept is to employ both luminance and chrominance con-
trast techniques to enhance the readability. This is accom-
plished by having the OFF dots blend into the display
background and the ON dots stand out vividly against this
same background. Therefore, these display devices are as-
sembled with a gray package and matching encapsulat-
ing epoxy in the dots.
Contrast enhancement may be achieved by using one of
the following suggested filters:
Standard Red and AlGaAs Red (HDSP-5300/H150)
Panelgraphic RUBY RED 60
SGL-Homalite H100-1605 RED
3M Louvered Filter R6610 RED or N0210 GRAY
HER (HDSP-5500)
Panelgraphic SCARLET RED 60
SGL-Homalite H100-1670 RED or H100-1250 GRAY
3M Louvered Filter R6610 RED or N0210 GRAY
Yellow (HDSP-5700)
Panelgraphic YELLOW 27 or GRAY 10
SGL-Homalite H100-1720 AMBER or H100-1250 GRAY
3M Louvered Filter A5910 AMBER or N0210 GRAY
Green (HDSP-5600)
Panelgraphic GREEN 48
SGL-Homalite H100-1440 GREEN or H100-1250 GRAY
3M Louvered Filter YG6610 RED or N0210 GRAY
For further information on contrast enhancement please
see Application Note 1015.
Mechanical
Specially developed plastics are used to optimize the
displays optical performance. These plastics restrict the
solvents that may be used for cleaning. Only mixtures of
Freon (F113) and alcohol should be used for vapor clean-
ing processes. Total immersion time in the vapors is two
minutes. Some suggested mixtures are Freon TE, Arklone
A or K, or Genesolv DI-15 or DE-15. A 60°C (140°F) water
cleaning process may also be used. This process includes
a neutralizer rinse (3% ammonia solution or equivalent),
a surfactant rinse (1% detergent solution or equivalent),
a water rinse, and a thorough air dry. Room temperature
cleaning may be done with Freon T-E35 or T-P35, Ethanol,
Isopropanol, or water with a mild detergent.
Cleaning agents from the ketone family (acetone, methyl
ethyl ketone, etc.) and from the chlorinated hydrocarbon
family (methylene chloride, trichloroethylene, carbon tet-
rachloride, etc.) are not recommended for cleaning LED
parts. All of these various solvents attack or dissolve the
encapsulating epoxies used to form the package of plastic
LED parts.
2
These displays are ideal for most applications. Pin for pin
equivalent displays are also available in a low current design.
The low current displays are ideal for portable applications.
For additional information see the Low Current Seven Seg-
ment Displays data sheet.
Part Numbering System
5082 -X XX X-X X X XX
HDSP-X XX X-X X X XX
Mechanical Options
[1]
00: No Mechanical Option
Color Bin Options
[1,2]
0: No Color Bin Limitation
Maximum Intensity Bin
[1,2]
0: No Maximum Intensity Bin Limitation
Minimum Intensity Bin
[1,2]
0: No Minimum Intensity Bin Limitation
Device Configuration/Color
[1]
1: Common Anode
3: Common Cathode
Device Specific Configuration
[1]
Refer to Respective Datasheet
Package
[1]
H: 14.2 mm (0.56 inch) Single Digit Seven Segment Display
Notes:
1. For codes not listed in the figure above, please refer to the respective datasheet or contact your nearest Avago rep-
resentative for details.
2. Bin options refer to shippable bins for a part number. Color and Intensity Bins are typically restricted to 1 bin per
tube (exceptions may apply). Please refer to respective datasheet for specific bin limit information.
3

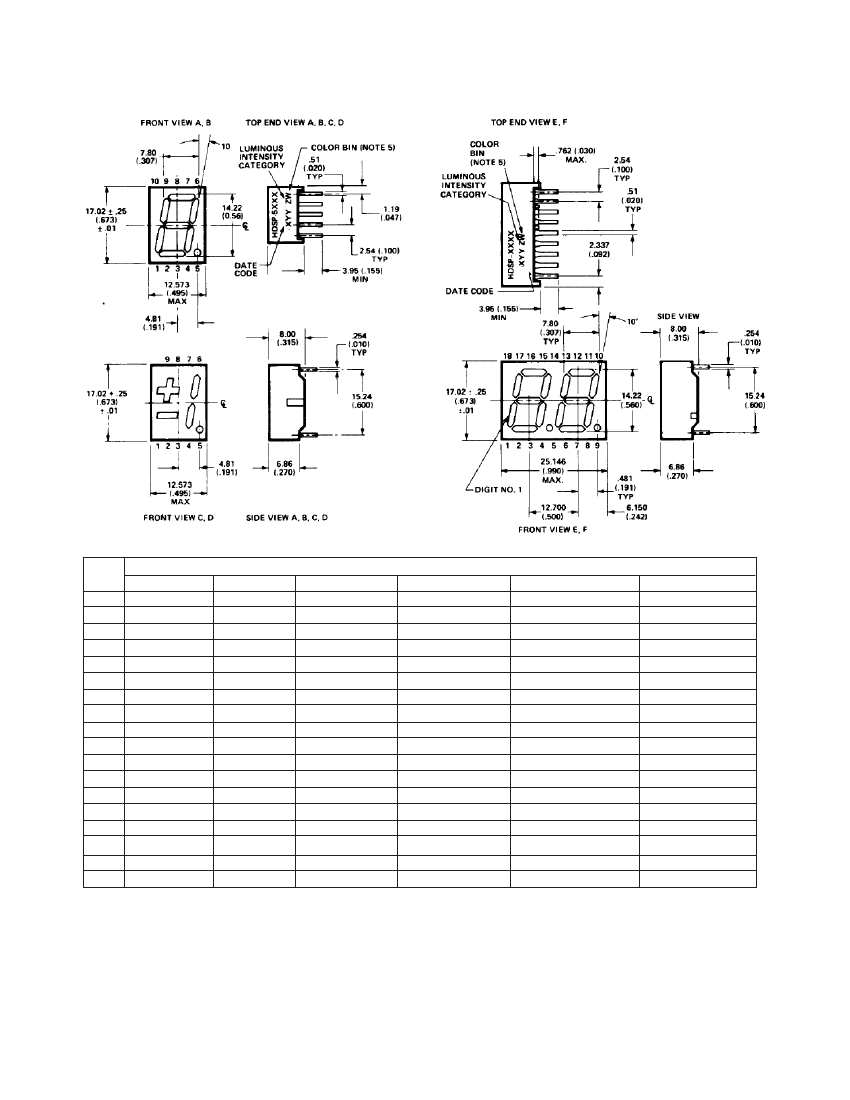

Package Dimensions
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
A
CATHODE e
CATHODE d
ANODE
[3]
CATHODE c
CATHODE DP
CATHODE b
CATHODE a
ANODE
[3]
CATHODE f
CATHODE g
B
ANODE e
ANODE d
CATHODE
[4]
ANODE c
ANODE DP
ANODE b
ANODE a
CATHODE
[4]
ANODE f
ANODE g
C
CATHODE c
ANODE c, d
CATHODE b
ANODE a, b, DP
CATHOPDE DP
CATHODE a
ANODE a, b, DP
ANODE c, d
CATHODE d
NO PIN
FUNCTION
D
ANODE c
CATHODE c, d
ANODE b
CATHODE a, b, DP
ANODE DE
ANODE a
CATHODE a, b, DP
CATHODE c, d
ANODE d
NO PIN
E
E CATHODE NO. 1
D CATHODE NO. 1
C CATHODE NO. 1
DP CATHODE NO. 1
E CATHODE NO. 2
D CATHODE NO. 2
G CATHODE NO. 2
C CATHODE NO. 2
DP CATHODE NO. 2
B CATHODE NO. 2
A CATHODE NO. 2
F CATHODE NO. 2
DIGIT NO. 2 ANODE
DIGIT NO. 1 ANODE
B CATHODE NO. 1
A CATHODE NO. 1
G CATHODE NO. 1
F CATHODE NO. 1
F
E ANODE NO. 1
D ANODE NO. 1
C ANODE NO. 1
DP ANODE NO. 1
E ANODE NO. 2
D ANODE NO. 2
G ANODE NO. 2
C ANODE NO. 2
DP ANODE NO. 2
B ANODE NO. 2
A ANODE NO. 2
F ANODE NO. 2
DIGIT NO. 2 CATHODE
DIGIT NO. 1 CATHODE
B ANODE NO. 1
A ANODE NO. 1
G ANODE NO. 1
F ANODE NO. 1
NOTES:
1. ALL DIMENSIONS IN MILLIMETRES (INCHES).
2. ALL UNTOLERANCED DIMENSIONS ARE FOR REFERENCE ONLY.
3. REDUNDANT ANODES.
4. REDUNDANT CATHODES.
5. FOR HDSP-5600/-5700 SERIES PRODUCT ONLY.
4

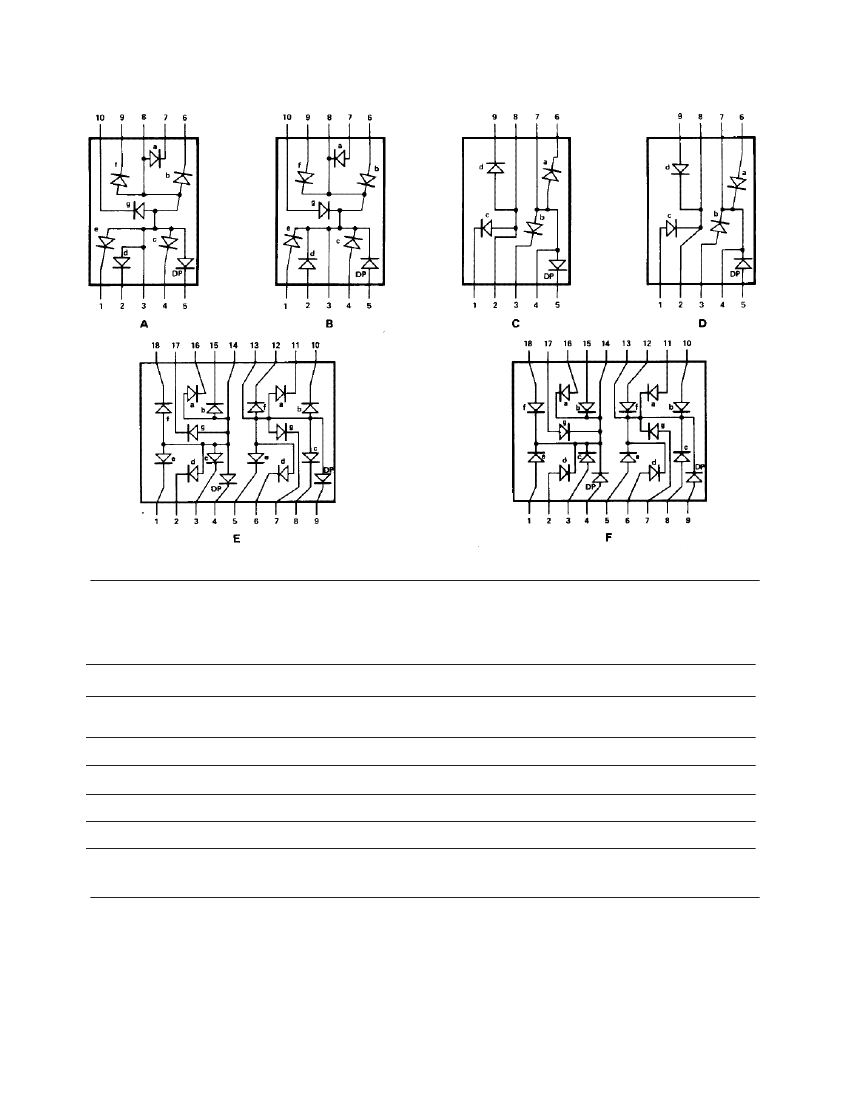

Internal Circuit Diagram
Absolute Maximum Ratings
HER/Orange
HDSP-5500
HDSP-H40x
HDSP-K40x
Series
105
90
[3]
Description
Average Power per Segment or DP
Peak Forward Current per
Segment or DP
DC Forward Current per Segment or DP
Operating Temperature Range
Storage Temperature Range
Reverse Voltage per Segment or DP
Wavesoldering Temperature for 3 Seconds
(1.60 mm [0.063 in.] below body)
AlGaAs Red
HDSP-H150
Series
96
160
[1]
Yellow
HDSP-5700
Series
80
60
[5]
Green
HDSP-5600
Series
105
90
[7]
Units
mW
mA
40
[2]
-20 to +100
[9]
30
[4]
20
[6]
-40 to +100
30
18]
mA
°C
°C
V
°C
-55 to +100
3.0
250
Notes:
1. See Figure 2 to establish pulsed conditions.
2. Derate above 46°C at 0.54 mA/°C.
3. See Figure 7 to establish pulsed conditions.
4. Derate above 53°C at 0.45 mA/°C.
5. See Figure 8 to establish pulsed conditions.
6. Derate above 81°C at 0.52 mA/°C.
7. See Figure 9 to establish pulsed conditions.
8. Derate above 39°C at 0.37 mA/°C.
9. For operation below -20°C, contact your local Avago
components sales office or an authorized distributor.
5
