HIGH-CURRENT MULTILAYER FERRITE CHIP BEAD
ACML-0402H
STANDARD SPECIFICATIONS - continued:
Part No.
ACML-0402H-421
ACML-0402H-481
ACML-0402H-601
ACML-0402H-102
ACML-0402H-152
ACML-0402H-182
RoHS
Compliant
1.0 x 0.5 x 0.5mm
| | | | | | | | | | | | | | |
Impedance
(Ω) ±25%
420
480
600
1000
1500
1800
Test Freq.
(MHZ)
100 MHZ,200 mV
100 MHZ,200 mV
100 MHZ,200 mV
100 MHZ,200 mV
100 MHZ,200 mV
100 MHZ,200 mV
RDC
(Ω)Max.
0.5
0.5
0.6
0.95
1.15
1.4
Rated
Current
(mA)Max.
300
300
300
200
100
100
Ir: Rate Current. Applied the current to coils, the temperature rise shall not be more than 30
Standard Testing Condition
Temperature
Humidity
Unless otherwise specified
Ordinary Temperature(15 to 35 )
Ordinary Humidity(25 to 85% RH)
In case of doubt
20±2
60 to 70 % RH
OPTIONS AND PART IDENTIFICATION
ACML-0402H-
Inductance Code
Please refer to the
table on Page 2
Tolerance
N: ±30%
-
Packaging
Blank: Bulk
T: Tape and Reel

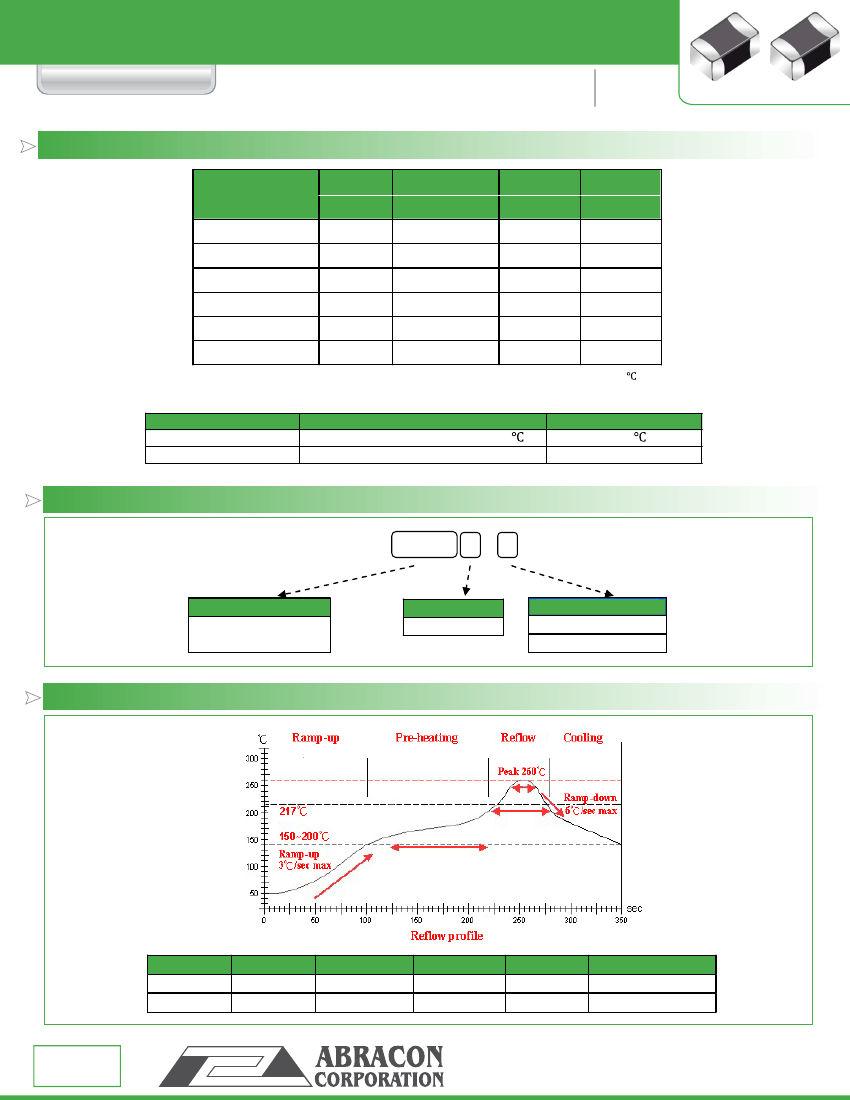

REFLOW PROFILE
Item
Temp. scope
Time spec.
Ramp-up
R.T. ~ 150°C
--
Pre-heating
150°C ~ 200°C
60 ~ 180 sec
Reflow
217°C
60 ~ 150 sec
Peak Temp.
260? 5°C
20 ~ 40 sec
Cooling
Peak Temp. ~ 150°C
--
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 08.11.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
HIGH CURRENT MULTILAYER FERRITE CHIP BEAD
ACML-0402H

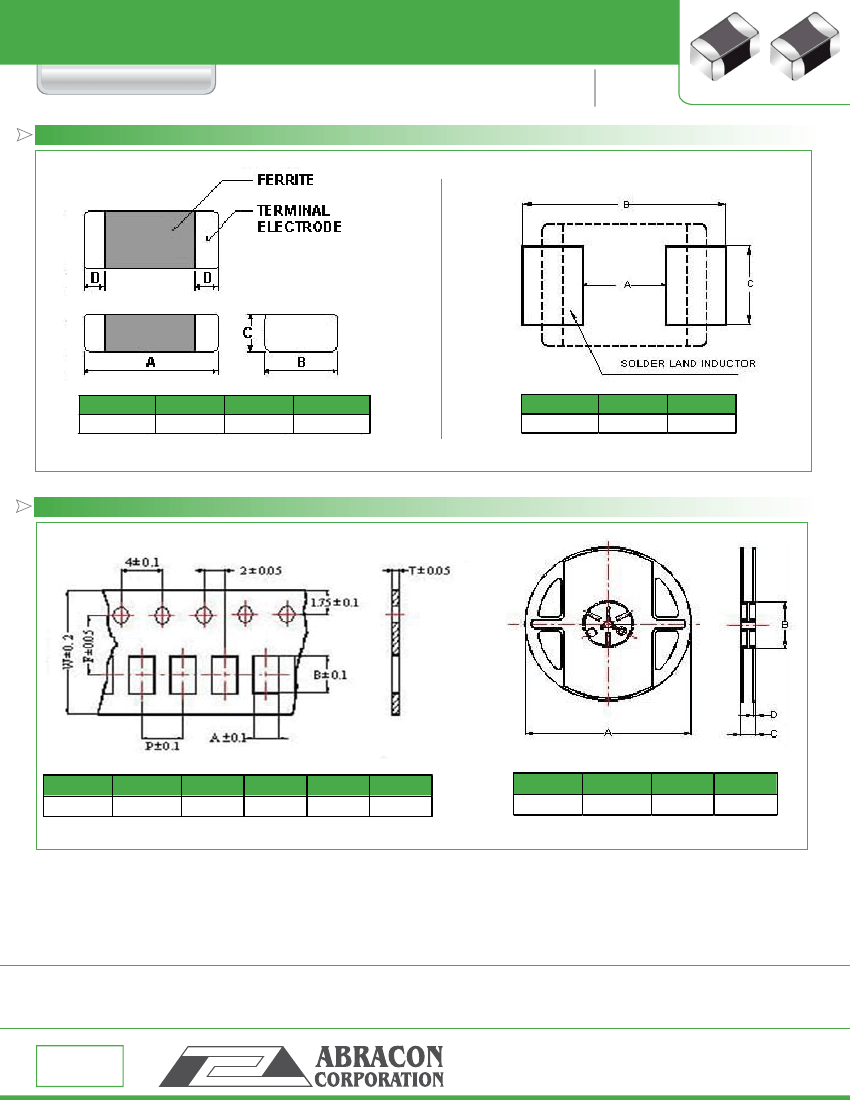

OUTLINE DRAWING:
Recommended Land Pattern
RoHS
Compliant
1.0 x 0.5 x 0.5mm
| | | | | | | | | | | | | | |
Tape and reel 10,000 pcs/reel
A
B
C
D
1.00±0.1 0.5±0.1 0.5±0.1 0.25±0.1
A
0.4
B
1.2~1.4
C
0.5
Dimension : mm
TAPE & REEL:
T= tape and reel (10,000pcs/reel)
A
0.65
B
1.15
T
0.60
W
8
P
2
F
3.5
A
178
B
60
C
10
D
2
Dimension : mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s
products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss
of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon Corporation is required.
Please contact Abracon Corporation for more information.
ABRACON IS
ISO9001:2008
CERTIFIED
