50 Ohm SMA To SMA Adjustable Phase Trimmer Operating From
DC to 4 GHz With an Adjustable Phase of 60.00 Deg. Per GHz
TECHNICAL DATA SHEET
PE8244
50 Ohm SMA To SMA Adjustable Phase Trimmer Operating From DC to 4 GHz With an Adjustable Phase
of 60.00 Deg. Per GHz
Configuration
Design
Phase Adjustment, deg/GHz
Connector 1
Impedance 1
Connector 2
Impedance 2
Adjustable Phase Trimmer
60
SMA Female
50 Ohms
SMA Female
50 Ohms
Electrical Specifications
Frequency Range, GHz
Maximum VSWR
Maximum Insertion Loss, dB
Maximum Input Power, Watts
Peak Power, KWatts
DC to 4
1.5:1
0.5
100
3,000
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
6.9 [175.26]
2 [50.8]
1 [25.4]
Connector 1
Type
Dielectric Type
Connector 2
Type
Dielectric Type
SMA Female
PTFE
SMA Female
PTFE
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm SMA To SMA Adjustable Phase Trimmer Operating From DC to 4 GHz With an Ad-
justable Phase of 60.00 Deg. Per GHz PE8244
PE8244 REV
1
50 Ohm SMA To SMA Adjustable Phase Trimmer Operating From
DC to 4 GHz With an Adjustable Phase of 60.00 Deg. Per GHz
TECHNICAL DATA SHEET
Compliance Certifications
(visit www.Pasternack.com for current document)
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE8244
50 Ohm SMA To SMA Adjustable Phase Trimmer Operating From DC to 4 GHz With an Adjustable Phase of 60.00 Deg. Per
GHz from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber
optic products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm SMA To SMA Adjustable Phase Trimmer Operating From DC to 4 GHz With an Adjustable
Phase of 60.00 Deg. Per GHz PE8244
URL:
http://www.pasternack.com/sma-female-sma-female-adjustable-phase-trimmer-dc-4-ghz-pe8244-p.aspx
PE8244 REV
2
© 2013 Pasternack Enterprises All Rights Reserved
PE8244

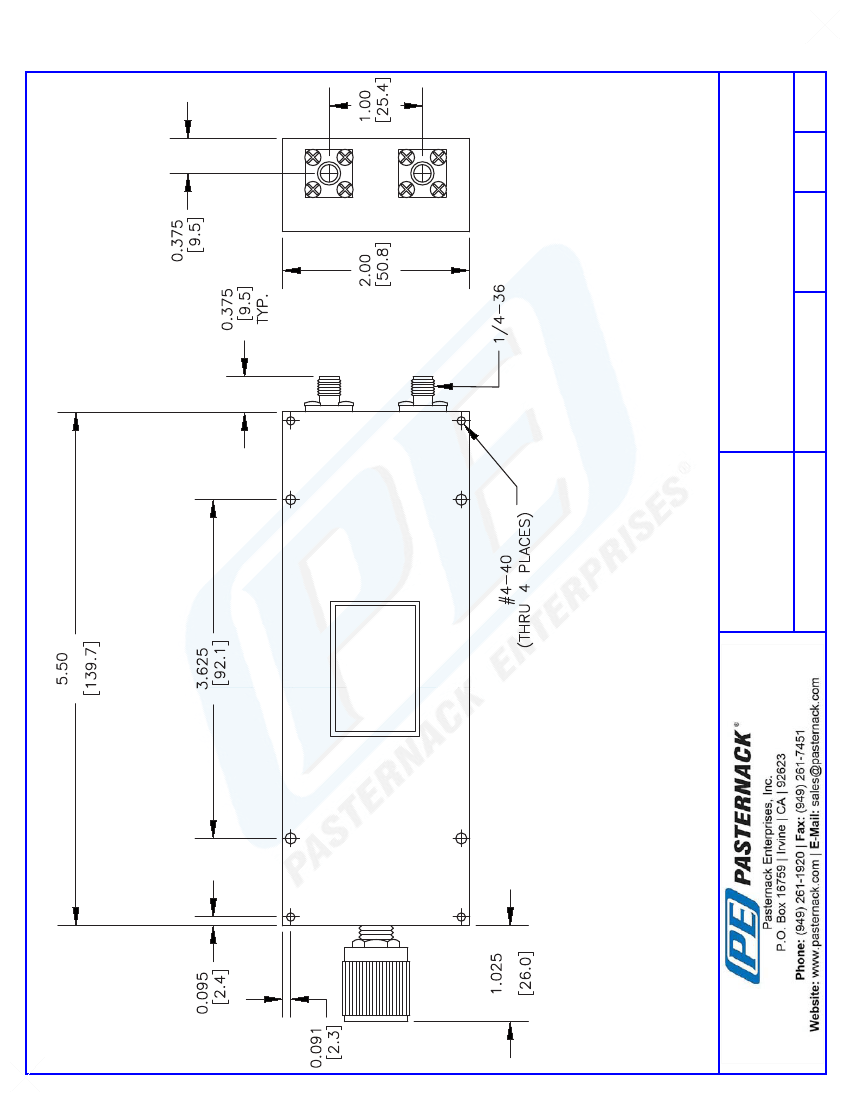

CAD Drawing
50 Ohm SMA To SMA Adjustable Phase Trimmer Operating From DC
to 4 GHz With an Adjustable Phase of 60.00 Deg. Per GHz
PASTERNACK
ENTERPRISES
PE8244
PE8244 REV
DWG TITLE
PE8244
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
CAD FILE
090909
SCALE N/A
SIZE A
XXXX
3
