75 Ohm N Male to N Female Right Angle Adapter
TECHNICAL DATA SHEET
75 Ohm N Male to N Female Right Angle Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
N Male
75 Ohms
N Female
75 Ohms
Standard
Right Angle
PE9307

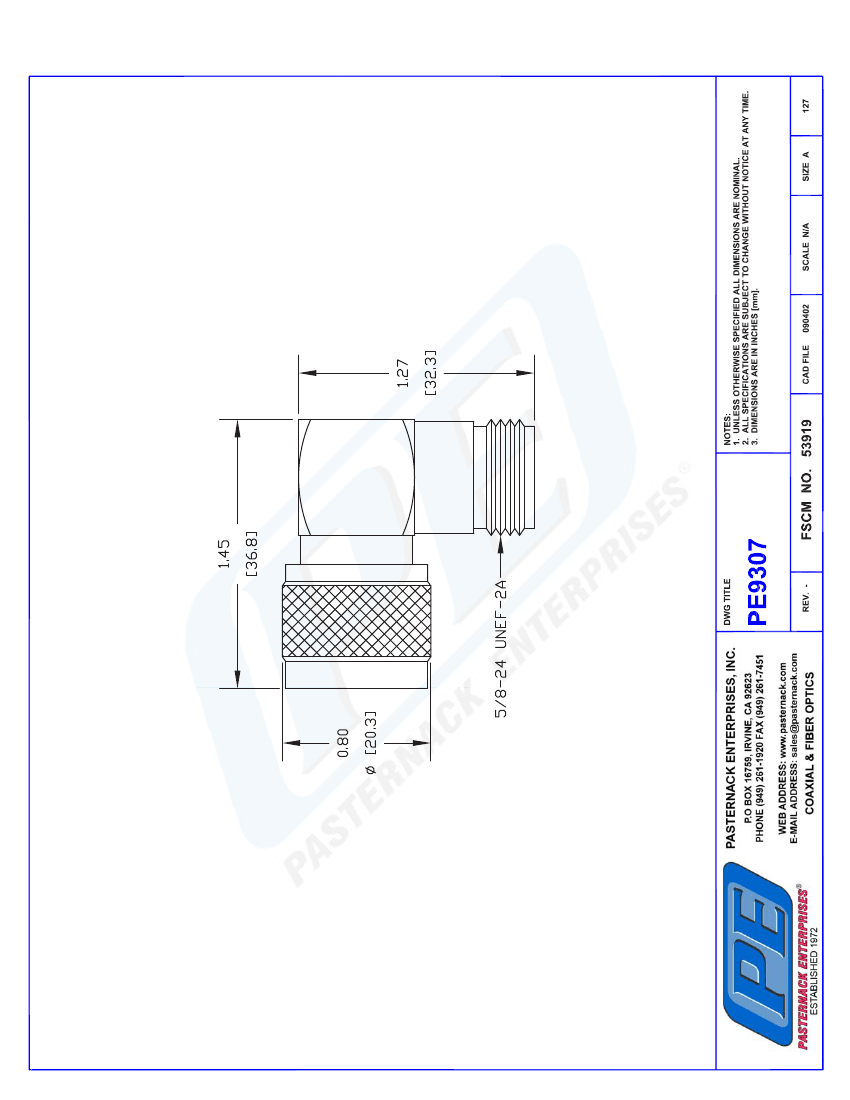

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
1.45 [36.83]
0.8 [20.32]
1.27 [32.26]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
N Male
Brass, Gold
3µ~5µ in. minimum
Brass, Nickel
100µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
N Female
Brass, Gold
3µ~5µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/n-male-n-female-right-angle-adapter-pe9307-p.aspx
75 Ohm N Male to N Female Right Angle Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
PE9307 REV
1
