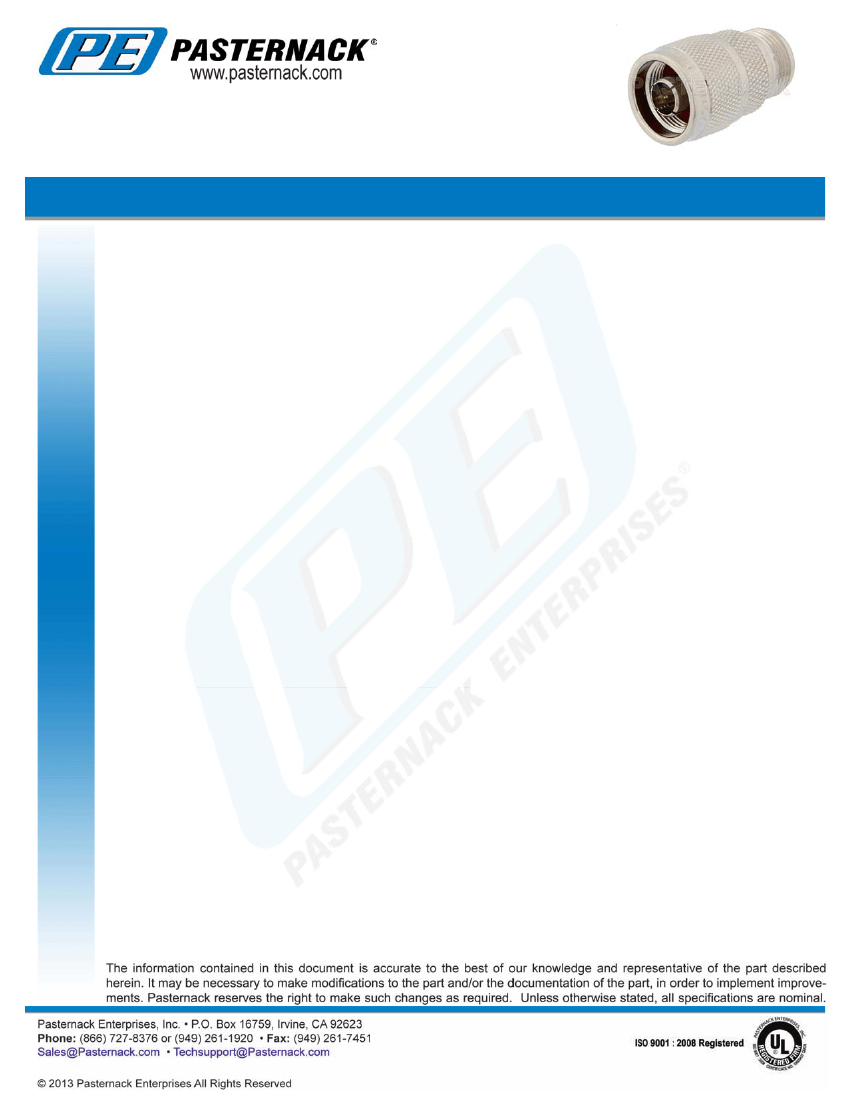

50 Ohm N Female to 75 Ohm N Male Adapter
TECHNICAL DATA SHEET
50 Ohm N Female to 75 Ohm N Male Adapter
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Connector Specification 2
Adapter Design
Body Style
N Female
50 Ohms
MIL-C-39012
N Male
75 Ohms
MIL-C-39012
Standard
Straight
PE9350

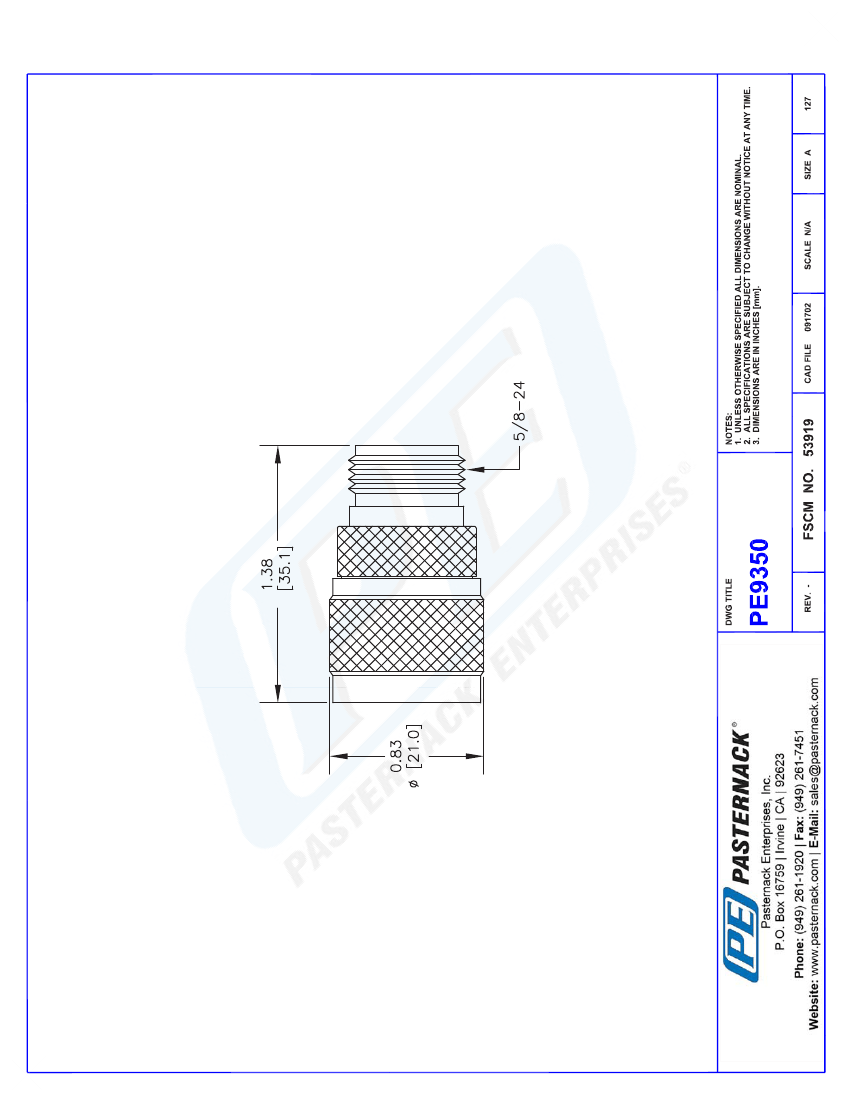

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.381 [35.08]
0.827 [21.01]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
N Female
Brass, Gold
3µ-5µ in. minimum
Brass, Nickel
70µ in. minimum
Teflon
N Male
Brass, Gold
3µ-5µ in. minimum
Brass, Nickel
70µ in. minimum
Brass, Nickel
70µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm N Female to 75 Ohm N Male Adapter PE9350
PE9350 REV
1
50 Ohm N Female to 75 Ohm N Male Adapter
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE9350
50 Ohm N Female to 75 Ohm N Male Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm N Female to 75 Ohm N Male Adapter PE9350
URL:
http://www.pasternack.com/n-female-n-male-straight-adapter-pe9350-p.aspx
PE9350 REV
2
