SSMB Jack to BNC Male Adapter
TECHNICAL DATA SHEET
SSMB Jack to BNC Male Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
SSMB Jack
50 Ohms
BNC Male
50 Ohms
Standard
Straight
PE9392
Mechanical Specifications
Temperature
Operating Range,deg C

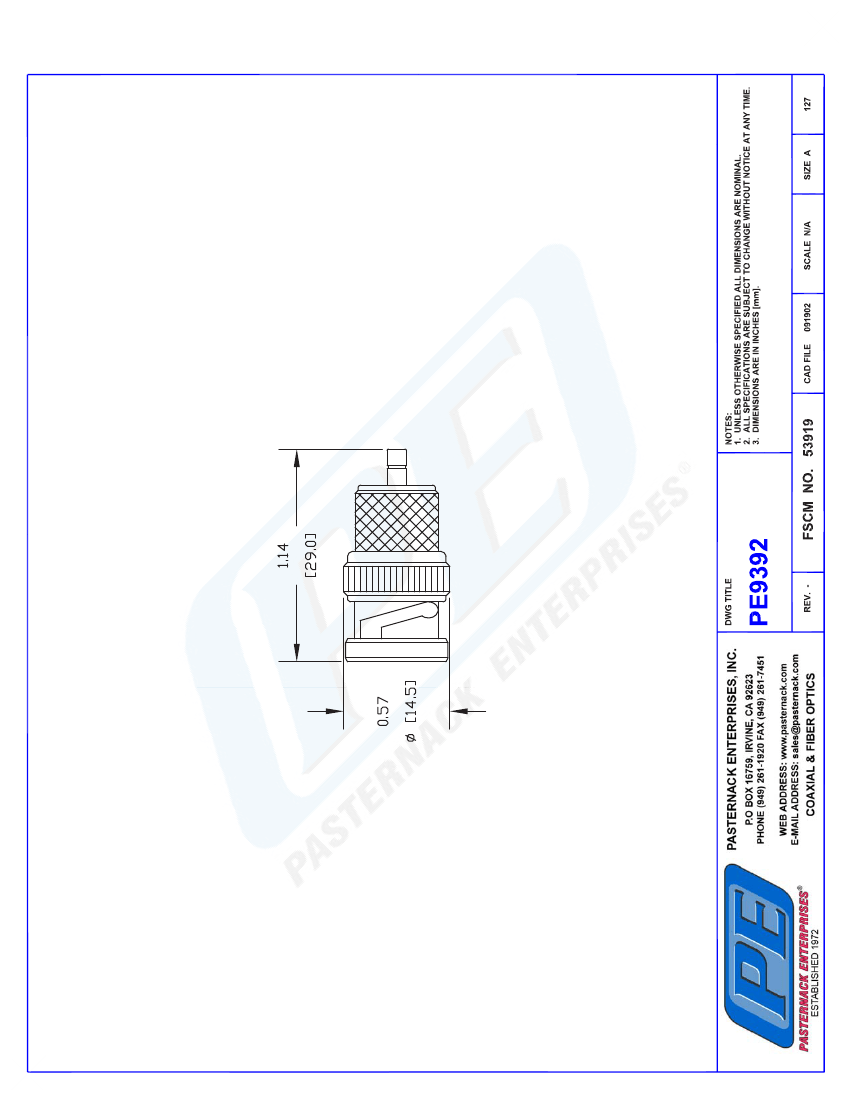

Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
1.135 [28.83]
0.57 [14.48]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
SSMB Jack
Gold
MIL-G-45204
Brass, Nickel
Teflon
BNC Male
Gold
MIL-G-45204
Brass, Nickel
Brass, Nickel
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/ssmb-jack-bnc-male-straight-adapter-pe9392-p.aspx
SSMB Jack to BNC Male Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
PE9392 REV
1
