rBOX200
Robust Din-rail Fanless Embedded System
with AMD LX800 + CS5536AF and
1 Isolated DIO (8-IN/8-OUT)
Features
●
Fanless and cableless design
●
Supports AMD LX800 processor
●
Wide temperature operation of -40°C ~ +70°C
●
1 isolated DIO (8-IN/8-OUT)
●
2 isolated 10/100Mbps Ethernet
●
2 watchdog timer
●
LED indicators
●
SNMP V1/V2c
●
Supports one CompactFlash™
●
2 power paths with terminal block and 12-48VDC
●
Supports AXView monitoring software package
LED indicators (power, alarm,
ready/active, COM)
1 isolated DIO
(8-IN/OUT)

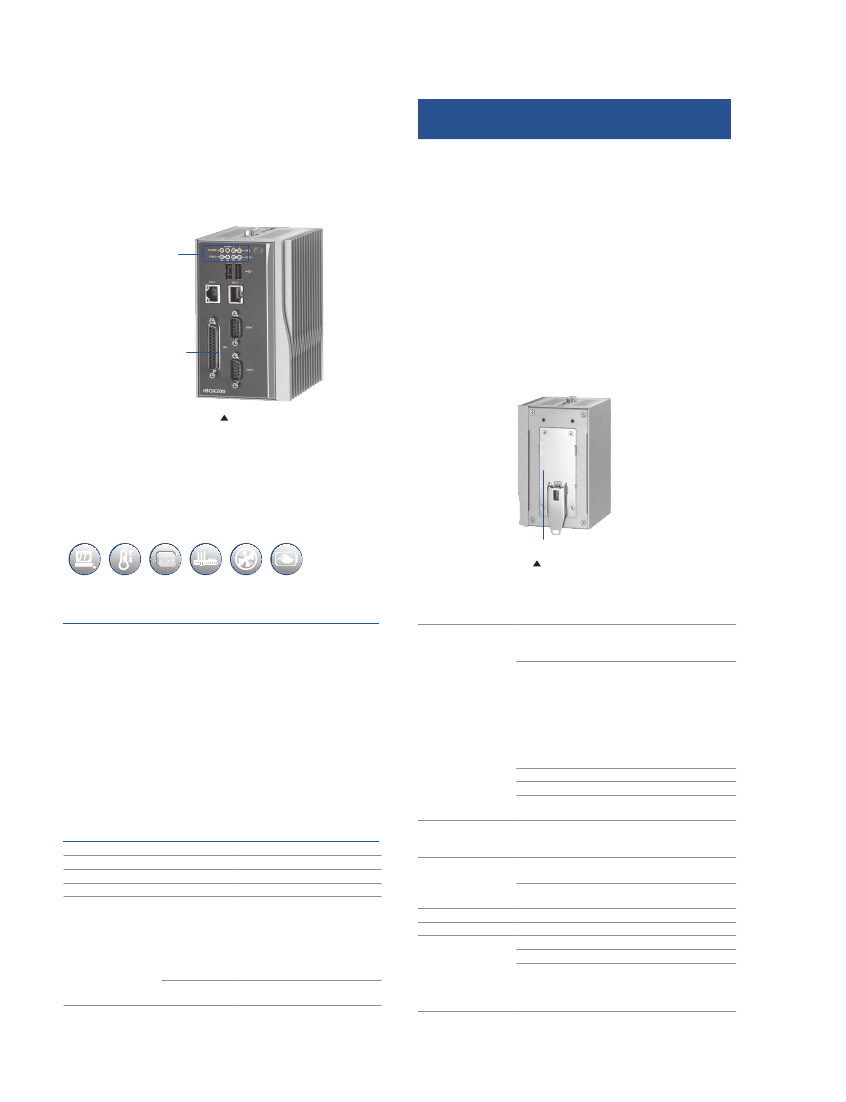

Front view
Din-rail kit
Rear view
EN60950
Extended
Temperature
IP30
UL508
Fanless
Low Power
Introduction
rBOX200 cost-effective din-rail fanless embedded system utilizes the low power AMD
LX800 processor and is designed to withstand temperatures ranging from -40°C to +70°C
for use in extreme operating environments.
Its 8-IN/8-OUT DIO port provides users with the digital devices connection, and its
redundant Ethernet connection provides greater availability and reliability. Two power
paths input minimizes the risk of data loss in the event of a single power failure. With
its built-in VGA output interface, the rBOX200 is suitable for use with SCADA systems.
The robust rBOX200 is specifically designed for remote control/ monitoring management
applications like unmanned control room, industrial machine, automatic parking lot, traffic
cabinet and more.
The ready-to-run rBOX200 equipped with AXView monitoring software is a total solution
for intelligent transportation systems, power plant automation, intelligent transportation
systems, facility monitoring systems, IP video surveillance, APs, intercoms, and more.
VGA
Power Input
Alarm Contact
Watchdog Timer
Sliver-Black
Extruded aluminum and heary-duty steel, IP30
AMD LX800 processor
1 x 200-pin DDR400 SO-DIMM max. up to 1 GB
Serial Port
2 x RS-232/422/485 (COM 1/2) (isolated
COM as option)
Interface select by software or BIOS
Supports Auto Flow Control in RS-485
mode
ESD protection 15 KV
Serial port speed up to 115.2kbps
LAN
2 x 10/100Mbps Ethernet
Magnetic isolation protection 1.5 KV
System I/O Outlet
USB
2 x USB2.0
USB power distribution control by
software
1 x DIO (8-IN/8-OUT)
DI:
Input range : 0~30 VDC
Logic level 0 : +/- 3V max.
Logic level 1 : +/- 10V min. (COM to DI)
DO:
Max. 200 mA per channel, current sink
type 24VDC normal, open collector to 30V
Optical isolation protection 3 KV
1 x DB15 connector
2 x DC power input with terminal block
One relay output with current
0.5A@30VDC
DIO
Specifications
Standard Color
Construction
CPU
System Memory
System I/O Outlet
LEDs
Storage
Installation
Power Supply
2 WDT
WDT 1: one step is 1 sec, 255 levels
WDT 2: one step is 250ms, 255 levels
System
Power, Alarm, Ready/Active, COM
(TXD,RXD)
Alarm
DC PWR1 or PWR2 is lost (default)
User define event
Supports 1 x CompactFlash™
Din-rail, wall mount
2 power paths
Power Input Range 12-48VDC
Power Protection
DC Version:
OVP (over voltage protection)
UVP (under voltage protection) Reverse
protection
295
* All specifications and photos are subject to change without notice.
Specifications
With no load on 2 USB ports:
0.77A @ 12V, 9.24W
0.37A @ 24V, 8.8W
0.27A @ 36V, 9.72W
0.19A @ 48V, 9.12W
With full load on 2 USB ports:
1.22A @ 12V, 14.64W
0.62A @ 24V, 14.88W
0.41A @ 36V, 14.76W
0.32A @ 48V, 15.36W
-40°C ~ +70°C (-40°F ~ +158°F)
-45°C ~ +85°C (-49°F ~ +185°F)
5% ~ 95%
1.38 kg (3 lb)/1.72 kg (3.78 lb)
81 mm (3.18") (W) x 110 mm (4.33") (D) x 135 mm (5.31") (H)
XPE, WinCE, Linux
Manufactured in an ISO9001 facility
Heavy Industrial CE, including:
EN60950-1, IEC60950-1
UL508, UL60950-1
FCC Part 18
Heavy Industrial CE, including:
EN61000-6-4, EN61000-3-2, EN61000-3-3
Heavy Industrial CE, including:
EN61000-6-2
EN61000-4-2 (ESD standards)
* Contact: +/- 6 KV; criteria B
* Air: +/- 8 KV; criteria B
EN61000-4-3 (radiated RFI standards)
* 10V/m, 80 to 1000 MHz; 80% AM criteria A
EN61000-4-4 (burst standards)
* Signal ports: +/- 2 KV; criteria B
* DC power ports: +/- 2 KV; criteria B
Power
Consumption
EN61000-4-5 (surge standards)
* Signal ports: +/- 1 KV; line-to-line; criteria B
* DC power ports: +/- 0.5 KV; line-to-earth; criteria B
EN61000-4-6 (induced RFI standards)
* Signal ports: 10 Vrms @ 0.15 ~ 80 MHz; 80% AM
criteria A
* DC power ports: 10 Vrms @ 0.15 ~ 80 MHz; 80% AM
criteria A
EN61000-4-8 (magnetic field standards)
* 30 A/m @ 50, 60 Hz; criteria A
IEC60068-2-6 Fc (vibration resistance)
5 g @ 10 ~ 150 Hz, amplitude 0.35 mm (operation/storage/
transport)
IEC60068-2-27 Ea (shock) 25 g @ 11 ms (half-sine shock
pulse; operation); 50 g @ 11 ms (half-sine shock pulse;
storage/transport)
IEC60068-2-32 Ed (free fall) 1 M (3.281ft)
Overview
Embedded
Systems
Embedded
Systems for
Transportation
Embedded
Field
Controllers
Embedded
MicroBoxes
Operating Temperature
Storage Temperature
Humidity
Weight (net/gross)
Dimensions
EOS Support
ISO
Safety
Safety
Compliance
EMI
Environmental Test
Compliance
Ordering Information
Standard
rBOX200-FL
Robust Din-rail fanless embedded system with AMD LX800
proceor and 1 isolated DIO (8-IN/8-OUT) (-40°C ~ +70°F)
Industrial
Barebone
Systems
Industrial
Chassis
Backplanes
EMS
Optional
DDR SO-DIMM
512 MB ~ 1 GB (with W.T. memory)
CompactFlash™
2 GB or above (with W.T. CF)
Wall mount kit
*Specifications and certifications are based on options and may vary.
Power
Supplies
Peripherals &
Accessories
Dimensions
* All specifications and photos are subject to change without notice.
