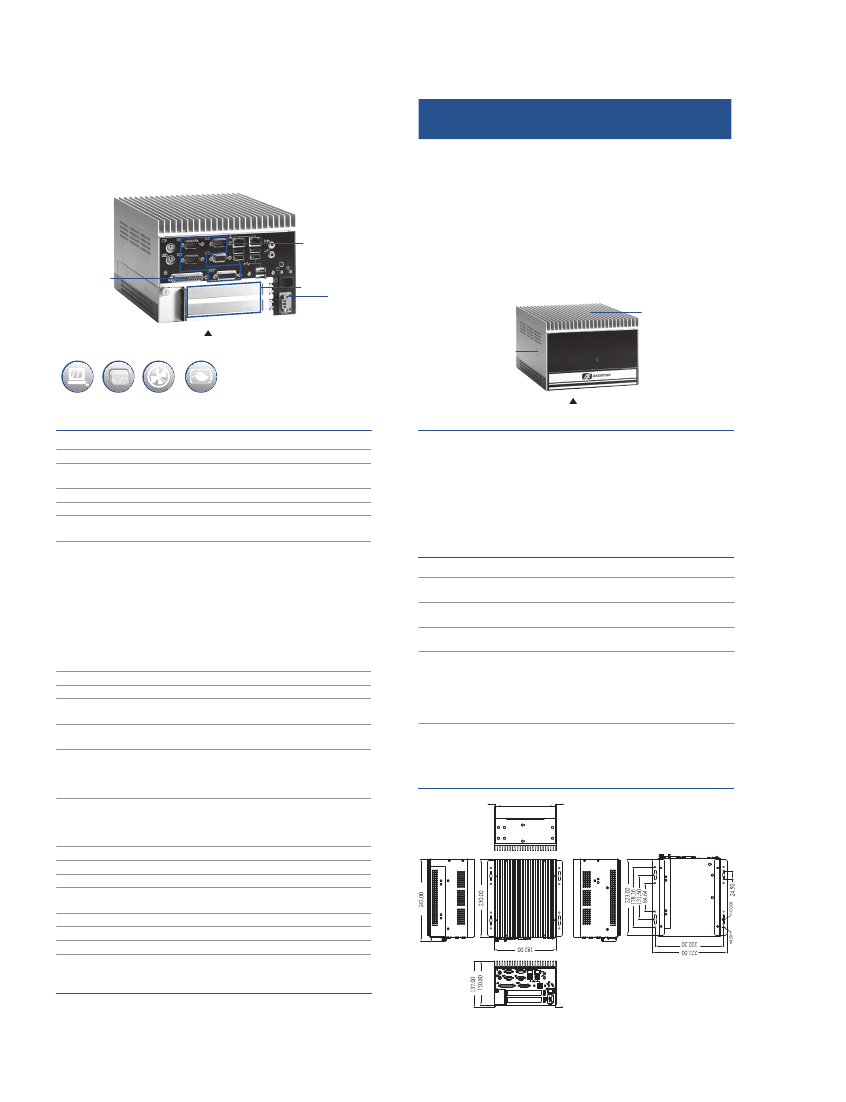

eBOX639-822-FL
Fanless Embedded System Featuring
Socket 478 Intel
®
Pentium
®
M Processor
up to 2.0 GHz and 2 PCI Slots
Features
●
Fanless Design with full feature I/O
®
®
®
●
Socket 478 for Intel Celeron M/ Pentium Mprocessor up to
2.0 GHz
●
Intel 910GMLE + ICH6M chipset
●
Supports dual 32 bit/33 MHz PCI slots
●
DDR2 DIMM max. up to 2 GB
●
One 2.5" SATA HDD drive bay
●
ATX 107W 16V ~ 28VDC-in power supply
Intel
®
910GMLE
chipset
Dual DDR2 DIMM slots
6 RS-232
LPT
Dual PCI slots
16 ~ 28V DC-in
Front view
EN60950
IP30
Fanless
Low Power
Rear view
Specifications
Standard Color
Construction
CPU
Silve-Black
Aluminum extrusion and heavy-duty cold-rolled steel, IP30
Socket 478 for Intel
®
Celeron
®
M 1.0 GHz/0K/ Pentium
®
M /
Celeron M up to 2.0 GHz
System Memory
2 x 240-pin DDR2 DIMM max. up to 2 GB
Chipset
Intel 910GMLE + ICH6M
BIOS
Phoenix-Award 4Mbit with RPL/PXE LAN Boot ROM,
SmartView and Customer CMOS backup
System I/O Outlet
6 x RS-232 (COM 1~6, COM 4~6 through 26-pin high denisity
connector)
1 x VGA
1 x Audio (Mic-in/Line-out)
1 x LPT
1 x PS/2 keyboard
1 x PS/2 mouse
2 x 10/100/1000Mbps Ethernet
6 x USB 2.0
1 x VDC power input connector (DC version)
1 x screw lock adapter connector (AC version)
Watchdog Timer
255 levels, 1 ~ 255 sec.
Storage
1 x 2.5" SATA HDD drive bay
Expansion Interface
2 x 32 bit/33 MHz PCI slot, support max. length of 200 mm
of PCB boards expansion
System Indicator
1 x green LED for system power-on
1 x orange LED for HDD active
Power Supply
DC ATX 107W
Input: 16 ~ 28VDC
Output: +3.3V @ 6A, +5V @ 9A, +12V @ 3A, -12V @ 0.1A,
+5Vsb @ 1A
Operating Temperature
-10°C ~ +50°C (14°C ~ 122°C)
(with C-M 1 GHz CPU, W.T. HDD, DC PSU)
-10°C ~ +45°C (14°C ~ 113°C)
(with P-M 2.0 GHz CPU, W.T. HDD, DC PSU)
Storage Temperature
-20°C ~ +80°C (-4°C ~ +176°C)
Humidity
10% ~ 90%, non-condensing
Vibration Endurance
1 Grms with HDD (5 ~ 500Hz, X, Y, Z directions)
Dimensions
182 mm (7.17") (W) x 230 mm (9.06") (D) x
130.8 mm (5.15") (H)
Weight (net/gross)
4.1 kg (9.03 lb)/4.8 kg (10.58 lb)
Certification
CE, EN60950 compliance
EOS Support
XPE, WinCE, Linux
* XPE: Windows
®
XP Embedded
Power Protection
AC Version
OVP (over voltage protection)
OCP (over current protection)
SCP (short circuit protection)
DC Version
OCP (over current protection)
SCP (short circuit protection)
Ordering Information
Standard
eBOX639-822-1GE-FL DC
eBOX639-822-FL DC
Fanless embedded system with Intel
®
Celeron
®
M 373 1
GHz/0KB processor, DC-in ATX 107W P/S
Fanless embedded system with Intel
®
socket 478 processor,
DC-in ATX 107W P/S
Optional
2.5" SATA HDD
40 GB or above
2.5" SATA SSD
4 GB or above
DDR2 DIMM
512 MB ~ 2 GB
AC power kit
Power cord
Wall mount bracket
*Specifications and certifications are based on options and may vary.
Dimensions
Packing List
1 x quick manual, 1 x driver CD, 1 x screw pack, 4 x foot pad,
4 x HDD anti-vibration damper, 1 x high-density COM 4~COM 6 cable
257
* All specifications and photos are subject to change without notice.
