SMA Male to SMA Female Bulkhead Precision Cable

18 Inch Length Using 150 Series Coax, RoHS

TECHNICAL DATA SHEET

PE35475-18

SMA Male to SMA Female Bulkhead Precision Cable 18 Inch Length Using 150 Series Coax, RoHS

Configuration

Connector 1

Connector 2

Cable Type

SMA Male

SMA Female Bulkhead

150 Series

Electrical Specifications

Frequency Range, GHz

Impedance, Ohms

Maximum VSWR

Velocity of Propagation, %

RF Shielding, dB

Maximum Operating Voltage, Vrms

Electrical Specification Notes:

DC to 26.5

1.4:1

69.5

1,900

Short lengths up to 24” long may exhibit VSWR

measurements up to 9% higher.

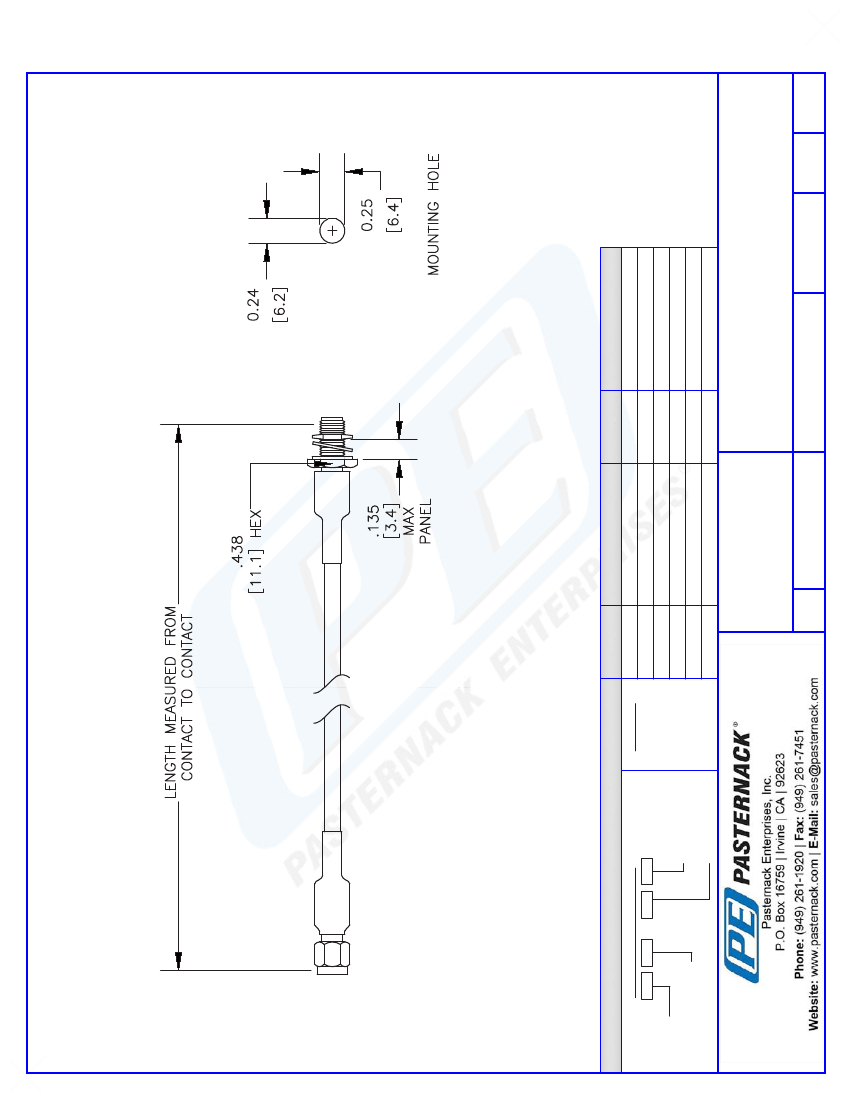

Mechanical Specifications

Cable Assembly

Cable Type

Temperature

Temperature Operating Range, deg C

Size

Length, in [mm]

150 Series

-50 to +205

18 [457.2]

1 [25.4]

One Time Minimum Bend Radius, in [mm]

Cable

Center Conductor Type

Cable Inner Conductor

No of Shields

Dielectric Type

Jacket Material

Jacket Diameter, in [mm]

Solid

Copper Clad Steel, Silver

PTFE

FEP

0.15 [3.81]

Connector 1

Type

Configuration

Inner Conductor Material and Plating

Coupling Nut Material and Plating

Hex Size, in.

Torque, in-lbs [Nm]

SMA Male

Straight

Copper Clad Steel, Silver

Passivated Stainless Steel

5/16

8 [0.9]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

SMA Male to SMA Female Bulkhead Precision Cable 18 Inch Length Using 150 Series Coax,

RoHS PE35475-18

PE35475-18 REV
