N Male to N Female Bulkhead Precision Cable
30 Inch Length Using 150 Series Coax, RoHS
TECHNICAL DATA SHEET
PE35952-30
N Male to N Female Bulkhead Precision Cable 30 Inch Length Using 150 Series Coax, RoHS
Configuration
Connector 1
Connector 2
Cable Type
N Male
N Female Bulkhead
150 Series
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Velocity of Propagation, %
RF Shielding, dB
Maximum Operating Voltage, Vrms
Electrical Specification Notes:
DC to 18
50
1.4:1
69.5
90
1,900
Short lengths up to 24” long may exhibit VSWR
measurements up to 9% higher.
Mechanical Specifications
Cable Assembly
Cable Type
Temperature
Temperature Operating Range, deg C
Size
Length, in [mm]
.
150 Series
-50 to +205
30 [762]
1 [25.4]
One Time Minimum Bend Radius, in [mm]
Cable
Center Conductor Type
Cable Inner Conductor
No of Shields
Dielectric Type
Jacket Material
Jacket Diameter, in [mm]
Solid
Copper Clad Steel, Silver
1
PTFE
FEP
0.15 [3.81]
Connector 1
Type
Configuration
Inner Conductor Material and Plating
Outer Conductor Material and Plating
Coupling Nut Material and Plating
Body Material and Plating
N Male
Straight
Gold
Passivated Stainless Steel
Brass, Nickel
Passivated Stainless Steel
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Male to N Female Bulkhead Precision Cable 30 Inch Length Using 150 Series Coax, RoHS
PE35952-30
PE35952-30 REV
1
N Male to N Female Bulkhead Precision Cable
30 Inch Length Using 150 Series Coax, RoHS
TECHNICAL DATA SHEET
Dielectric Type
PTFE
PE35952-30
Connector 2
Type
Configuration
Mount Method
Inner Conductor Material and Plating
Body Material and Plating
Dielectric Type
N Female Bulkhead
Straight
Bulkhead
Gold
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
N Male to N Female Bulkhead Precision Cable 30 Inch Length Using 150 Series Coax, RoHS from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Male to N Female Bulkhead Precision Cable 30 Inch Length Using 150 Series Coax, RoHS
PE35952-30
URL:
http://www.pasternack.com/n-male-n-female-150-series-cable-assembly-pe35952-30-p.aspx
PE35952-30 REV
2
© 2013 Pasternack Enterprises All Rights Reserved
PE35952-30

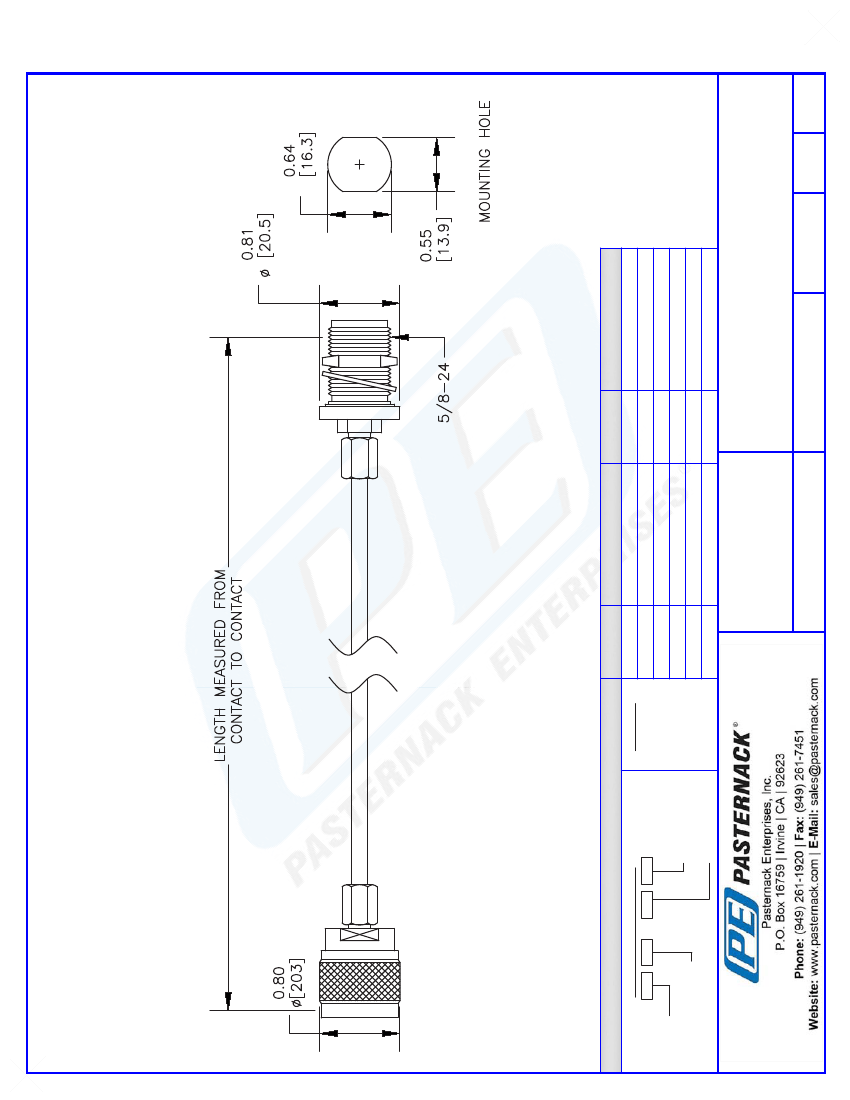

CAD Drawing
N Male to N Female Bulkhead Precision Cable 30 Inch
Length Using 150 Series Coax, RoHS
PE35952-30 REV
PE-LL150P
SMA
MALE
N
FEMALE
BULKHEAD
Part # Ext.
Part Number Configuration
Examples
-12
yy
-24
-
xx
uu
PE3 zzz
PE3000LF-100
-36
PE3000-100
00 - 99999
CM = Centimeters PE3000LF-100CM
-48
LF = RoHS Compliant
< Blank > = Inches
-60
< Blank > = Standard
PE3000-100CM
Length
-xx
Note: LF applies only to RF cables
How To Order
Length In Inches
12''
24"
36"
48"
60"
Custom Length
DWG TITLE
Part # Ext.
-25CM
-50CM
-75CM
-100CM
-125CM
-xxCM
Length In Centimeters
25Cm
50Cm
75Cm
100Cm
125Cm
Custom Length
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. LENGTH TOLERANCE IS ± 1.5% OR 3/8", WHICHEVER IS GREATER.
PE35952
FSCM NO. 53919
CAD FILE
030508
SCALE N/A
SIZE A
2233
3
