Biased Detector With 50 Ohm SMA Male to SMA Female
Video Out Operating From 500 MHz to 1,000 MHz
TECHNICAL DATA SHEET
PE8001
Biased Detector With 50 Ohm SMA Male to SMA Female Video Out Operating From 500 MHz to
1,000 MHz
Configuration
Bias Type
Detector Polarity
Body Style
RF Input Connector
RF Input Impedance
Video Output Connector
Biased
Negative
Straight
SMA Male
50 Ohms
SMA Female
Electrical Specifications
Frequency Range, MHz
Voltage Sensitivity, mV/mW
Tangential Signal Sensitivity
Flatness, dB
Maximum Input Power, Watts
Video Capacitance, pF
500 to 1,000
1,800
-54
0.5
23
100
Mechanical Specifications
Temperature
Operating Range,deg C
Storage Range, deg C
.
-55 to +125
-65 to +150
RF Input
Type
Hex Size, Inch
Video Output
Type
SMA Male
5/16
SMA Female
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Biased Detector With 50 Ohm SMA Male to SMA Female Video Out Operating From 500 MHz
to 1,000 MHz PE8001
PE8001 REV
1
Biased Detector With 50 Ohm SMA Male to SMA Female
Video Out Operating From 500 MHz to 1,000 MHz
TECHNICAL DATA SHEET
PE8001
Biased Detector With 50 Ohm SMA Male to SMA Female Video Out Operating From 500 MHz to 1,000 MHz from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain
a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Biased Detector With 50 Ohm SMA Male to SMA Female Video Out Operating From 500 MHz to
1,000 MHz PE8001
URL:
http://www.pasternack.com/negative-biased-schottky-diode-detector-05-10-ghz-pe8001-p.aspx
PE8001 REV
2
PE8001

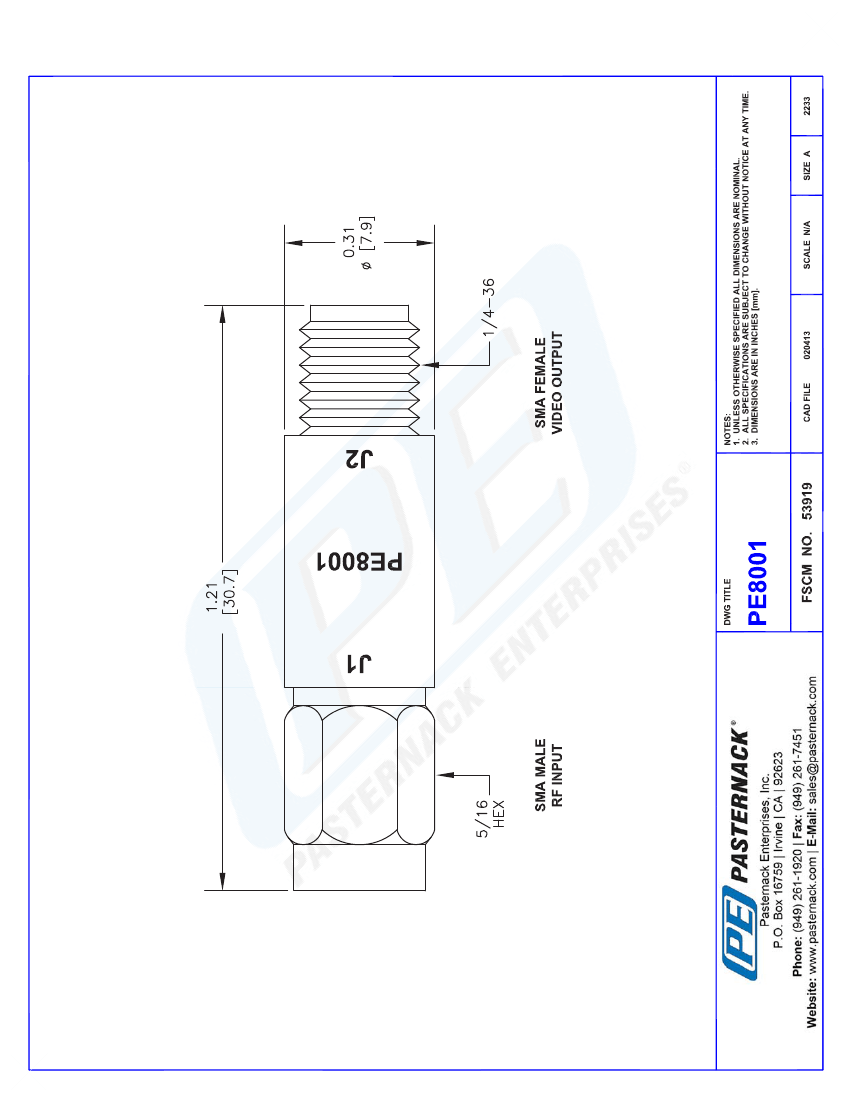

CAD Drawing
Biased Detector With 50 Ohm SMA Male to SMA Female
Video Out Operating From 500 MHz to 1,000 MHz
© 2013 Pasternack Enterprises All Rights Reserved
PE8001 REV
3
