Biased Detector With 50 Ohm SMA Male to SMA Female Video Out Operating From 1 GHz to 2 GHz

Preview

Download Datasheet

View All

Biased Detector With 50 Ohm SMA Male to SMA

Female Video Out Operating From 1 GHz to 2 GHz

TECHNICAL DATA SHEET

Configuration

Bias Type

Detector Polarity

Body Style

RF Input Connector

RF Input Impedance

Video Output Connector

Biased

Negative

Straight

SMA Male

50 Ohms

SMA Female

PE8002

Biased Detector With 50 Ohm SMA Male to SMA Female Video Out Operating From 1 GHz to 2 GHz

Electrical Specifications

Frequency Range, GHz

Voltage Sensitivity, mV/mW

Tangential Signal Sensitivity

Flatness, dB

Maximum Input Power, Watts

Video Capacitance, pF

1 to 2

2,000

-52

0.5

Mechanical Specifications

Temperature

Operating Range,deg C

Storage Range, deg C

-55 to +125

-65 to +150

RF Input

Type

Hex Size, Inch

Video Output

Type

SMA Male

5/16

SMA Female

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

Biased Detector With 50 Ohm SMA Male to SMA Female Video Out Operating From 1 GHz to

2 GHz PE8002

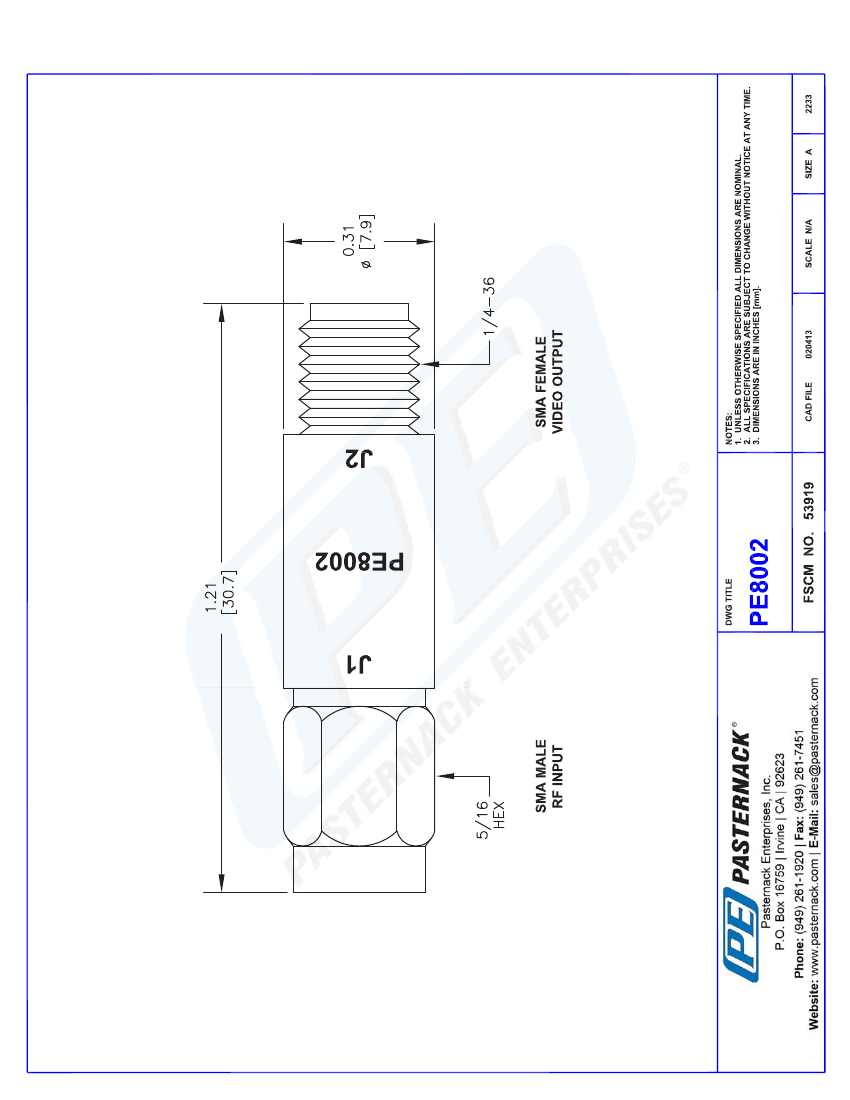

PE8002 REV
