PE9217

Description
Precision N Male to 7mm Sexless Adapter
CategoryThe connector
File Size255KB,4 Pages
ManufacturerPasternack Enterprises
Websitehttps://www.pasternack.com/
Download Datasheet View All

PE9217 Overview

Precision N Male to 7mm Sexless Adapter

Precision N Male to 7mm Sexless Adapter
TECHNICAL DATA SHEET
Precision N Male to 7mm Sexless Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
N Male
50 Ohms
7mm Sexless
50 Ohms
Precision
Straight
PE9217
Electrical Specifications
Frequency Range, GHz
Frequency 1
Frequency, MHz
VSWR
Frequency 2
Frequency, GHz
VSWR
Frequency 3
Frequency, GHz
VSWR
Frequency 4
Frequency, GHz
VSWR
DC to 18
DC to 1,000
1.04:1
1 to 6
1.06:1
6 to 12
1.09:1
12 to 18
1.12:1
Mechanical Specifications
Temperature
Operating Range,deg C

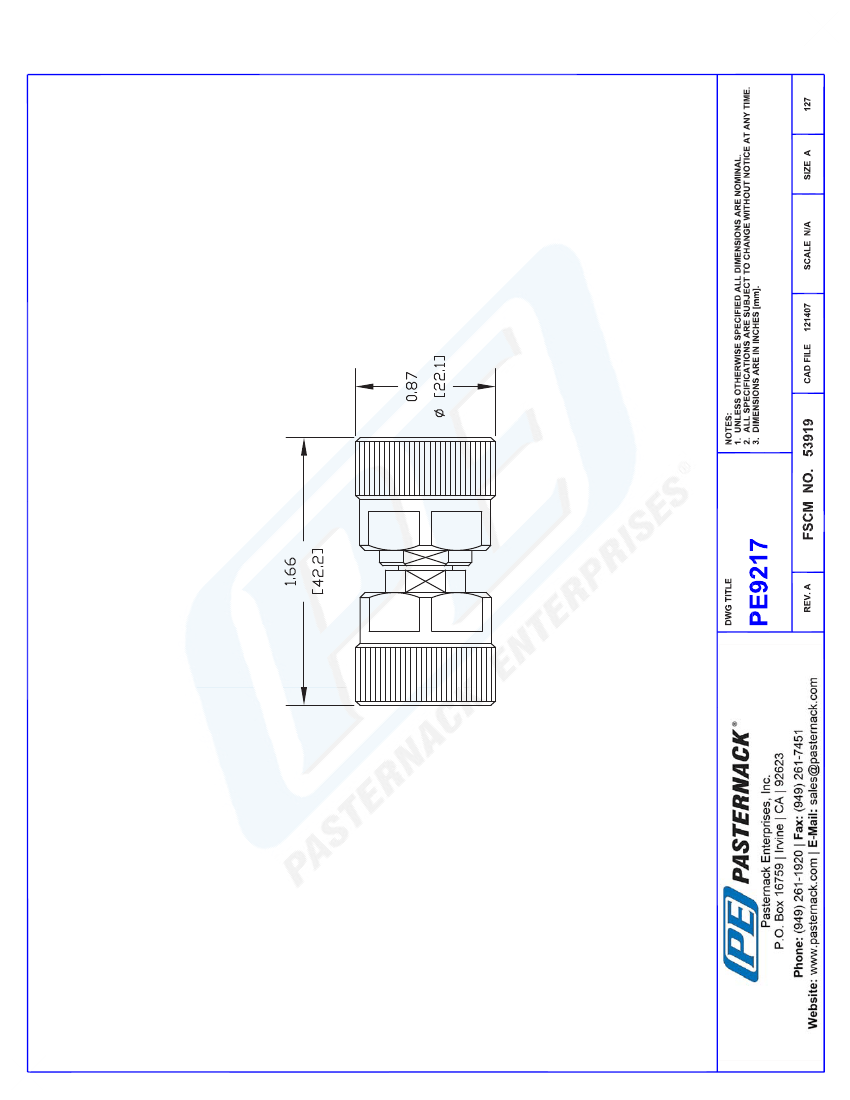

Size
Length, in [mm]
Width/Dia., in [mm]
.
-55 to +100
1.662 [42.21]
0.87 [22.1]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Body Material and Plating
N Male
Beryllium Copper, Gold
MIL-G-45204, Type II, Class 1
Passivated Stainless Steel
ASTM A380
Passivated Stainless Steel
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Precision N Male to 7mm Sexless Adapter PE9217
PE9217 REV
1
