75 Ohm SMB Jack to 50 Ohm BNC Male Adapter
TECHNICAL DATA SHEET
75 Ohm SMB Jack to 50 Ohm BNC Male Adapter
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Adapter Design
Body Style
SMB Jack
75 Ohms
MIL-STD-348A
BNC Male
50 Ohms
Standard
Straight
PE9229

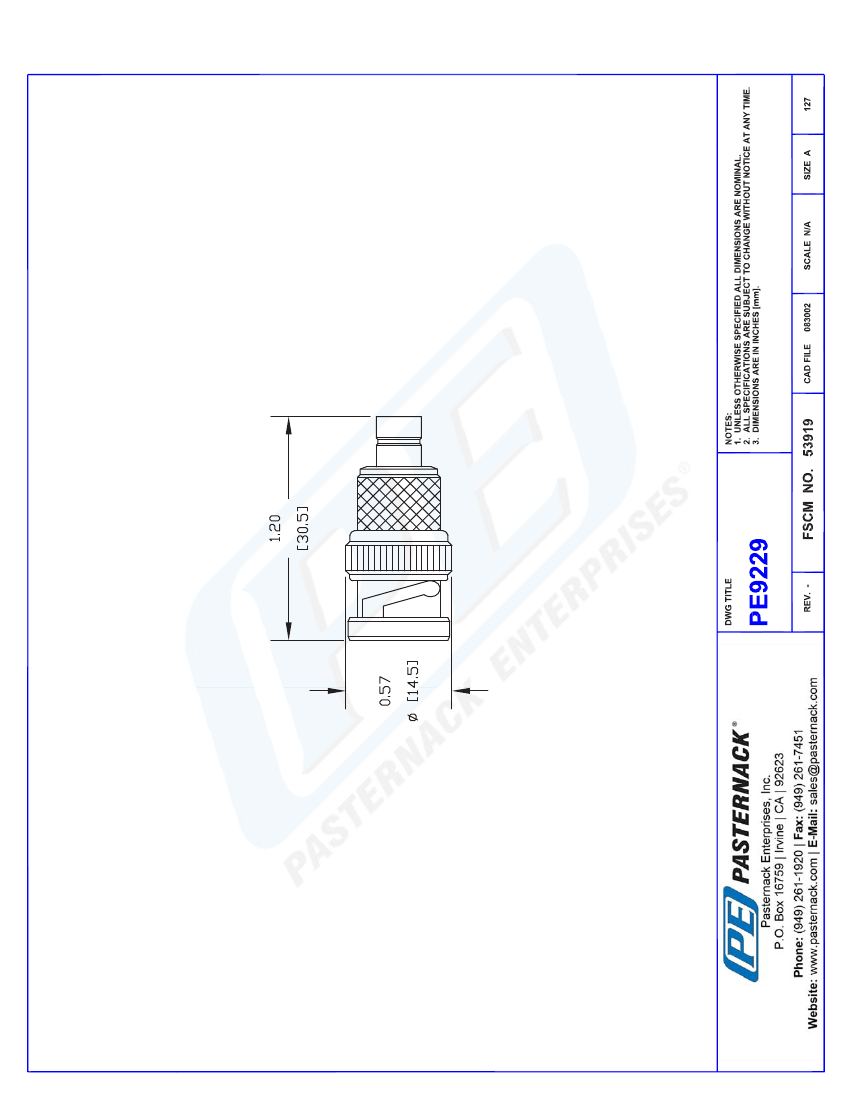

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.202 [30.53]
0.57 [14.48]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
SMB Jack
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
BNC Male
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/smb-jack-bnc-male-straight-adapter-pe9229-p.aspx
75 Ohm SMB Jack to 50 Ohm BNC Male Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
PE9229 REV
1
