XO-53AARFREQ: DescriptionTTL Output Clock Oscillator, 1MHz Min, 100MHz Max; CategoryPassive components oscillator; File Size223KB，1 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

XO-53AARFREQ Overview

TTL Output Clock Oscillator, 1MHz Min, 100MHz Max

XO-53AARFREQ Parametric

Parameter Name	Attribute value
Maker	Vishay
Reach Compliance Code	unknown
maximum descent time	5 ns
Frequency Adjustment - Mechanical	YES
frequency stability	25%
Manufacturer's serial number	XO-53
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	100 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	TTL
Output load	10 TTL
physical size	20.4mm x 12.9mm x 5.08mm
longest rise time	5 ns
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	40/60 %

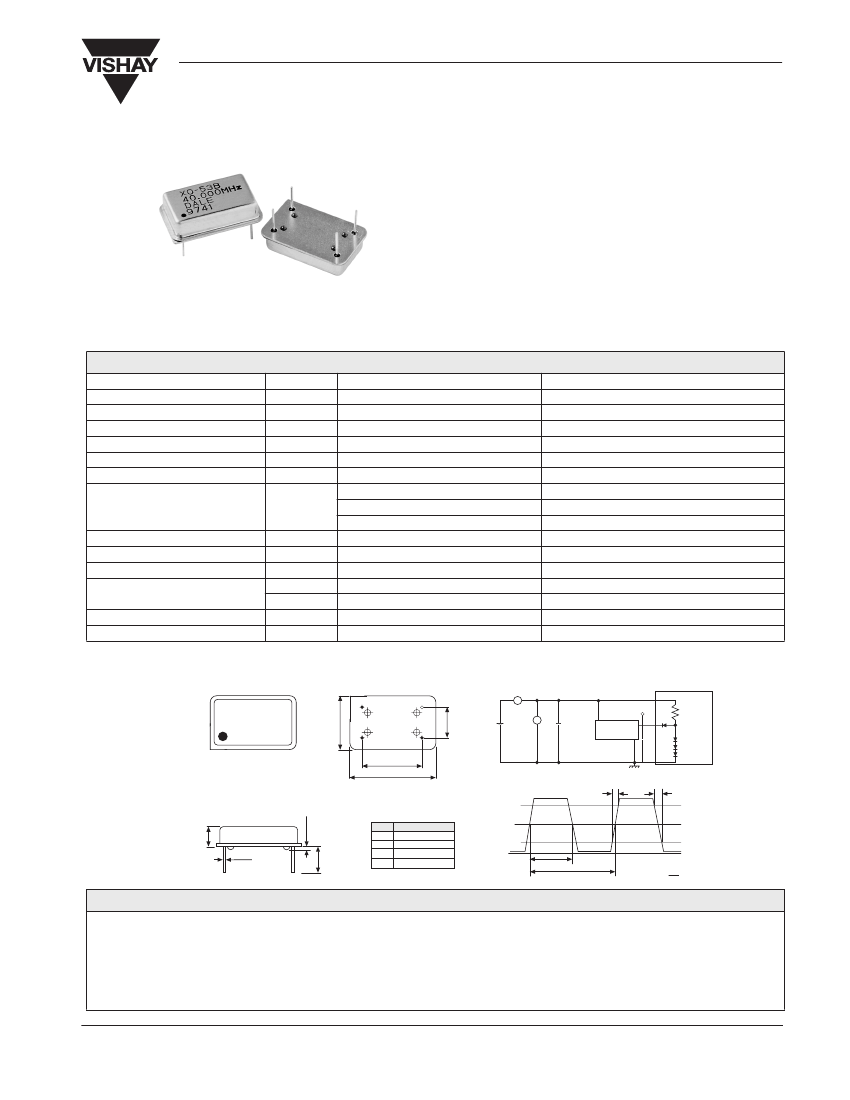

XO-53AARFREQ Preview

XO-53

Vishay Dale

Full Size Clock Oscillators TTL Compatible

FEATURES

•

10TTL output load

•

14 pin fill size

•

Industry standard

•

Wide frequency range

•

Low cost

The XO-53 series oscillator is TTL compatible and features fast

rise/fall times with high reliability at low cost. The metal

package with pin#7 case ground acts as shielding to minimize

EMI radiation.

•

Resistance weld package

STANDARD ELECTRICAL SPECIFICATIONS

PARAMETER

Frequency Range

Frequency Stability*

Operating Temperature Range

Storage Temperature Range

Power Supply Voltage

Aging (First Year)

Supply Current

SYMBOL

F

O

T

OPR

T

STG

V

DD

I

DD

25ºC ± 3ºC

1.0MHz to 23.999MHz

24.000MHz to 69.999MHz

70.000MHz to 100.000MHz

At 1.4V

0.4V ~ 2.4V

2.4V ~ 0.4V

CONDITION

All Condition*

XO-53

1.0MHz ~ 100.00MHz

± 25ppm, ± 50ppm, ± 100ppm

0ºC ~ 70ºC (- 40ºC ~ + 85ºC option)

- 55ºC ~ + 125ºC

5.0V ± 10%

± 5ppm

15mA Max

30mA Max

60mA Max

40/60%(45/55% Option)

5 nS Max

2.4 V Min

0.4 V Max

1 ~ 10TTL

10mS Max

Output Symmetry

Rise Time

Fall Time

Output Voltage

Output Load

Start-up Time

Sym

T

r

T

f

V

OH

V

OL

TTL Load

Ts

*Include: 25ºC tolerance, operating temperature range, input voltage change, aging, load change, shock and vibration.

DIMENSIONS

in inches [millimeters]

TTL TEST CIRCUIT

A

#1

MARKING

AREA

0.508

[12.9] Max

#14

#8

#7

0.300

±

0.005

[7.62

±

0.13]

+ 5.0V

V

0.01µF

#14

#1

TEST POINT

#8

#7

15pF**

RL = 400Ω

0.600

±

0.005

[15.24

±

0.13]

0.803 [20.4] Max

**Includes Stray and Probe Capacitance

TTL OUTPUT WAVEFORM

T

r

T

f

0.200

[5.08] Max

0.031

±

0.003

[0.8

±

0.1]

PIN CONNECTION

#1 N.C

#7 GND

#8 OUTPUT

#14 V

DD

V

OH

2.4V

1.4V

V

OL

0.4V

GND

T1

T0 = 1/Fo

SYMMETRY =

T1

x 100%

T0

0.018

±

0.003

[0.45

±

0.1]

0.268

[6.80] Max

ORDERING INFORMATION

XO-53

MODEL

B

FREQUENCY STABILITY

AA = 0.0025% (25PPM)

A = 0.005% (50PPM)

B = 0.01% (100PPM)

Standard

R

OTR

Blank = 0°C to + 70°C

R = - 40°C to + 85°C

40M

FREQUENCY/MHz

Document Number: 35023

Revision: 07-Apr-03

For technical questions contact: frequency@vishay.com

www.vishay.com

1

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
