50 Ohm BNC Male to 75 Ohm SMC Plug Adapter
TECHNICAL DATA SHEET
50 Ohm BNC Male to 75 Ohm SMC Plug Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
BNC Male
50 Ohms
SMC Plug
75 Ohms
Standard
Straight
PE9234
Mechanical Specifications
Temperature
Operating Range,deg C

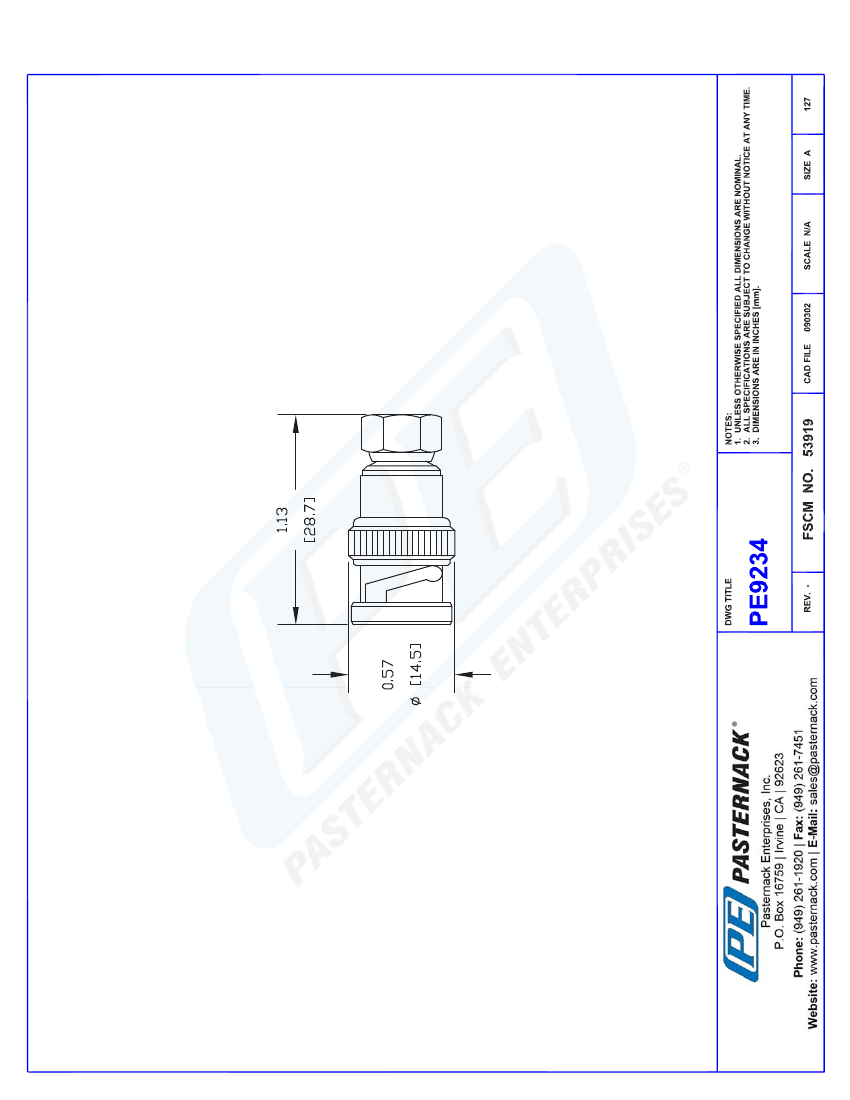

Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
1.128 [28.65]
0.57 [14.48]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
BNC Male
Gold
MIL-G-45204
Brass, Nickel
Brass, Nickel
Teflon
SMC Plug
Gold
MIL-G-45204
Brass, Nickel
3/8
5 [0.57]
Brass, Nickel
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/smc-plug-bnc-male-straight-adapter-pe9234-p.aspx
50 Ohm BNC Male to 75 Ohm SMC Plug Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
PE9234 REV
1
