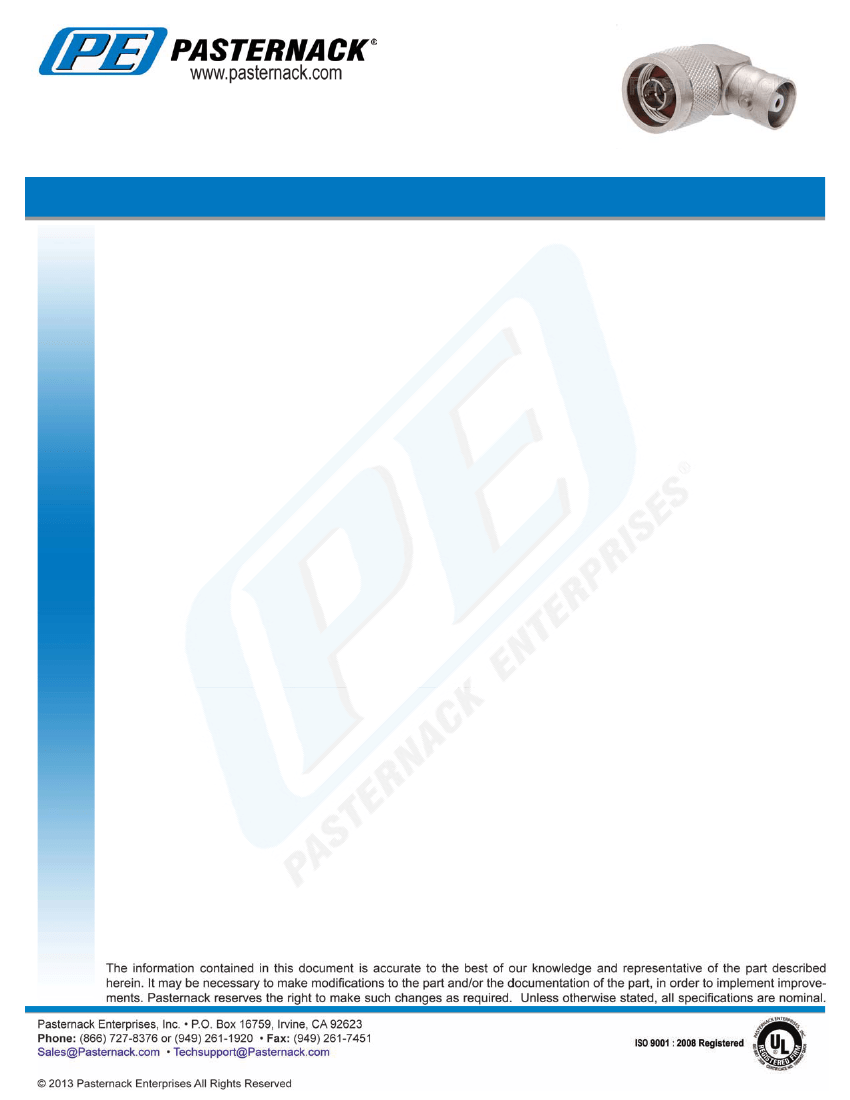

N Male to C Female Right Angle Adapter
TECHNICAL DATA SHEET
N Male to C Female Right Angle Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
N Male
50 Ohms
C Female
50 Ohms
Standard
Right Angle
PE9239

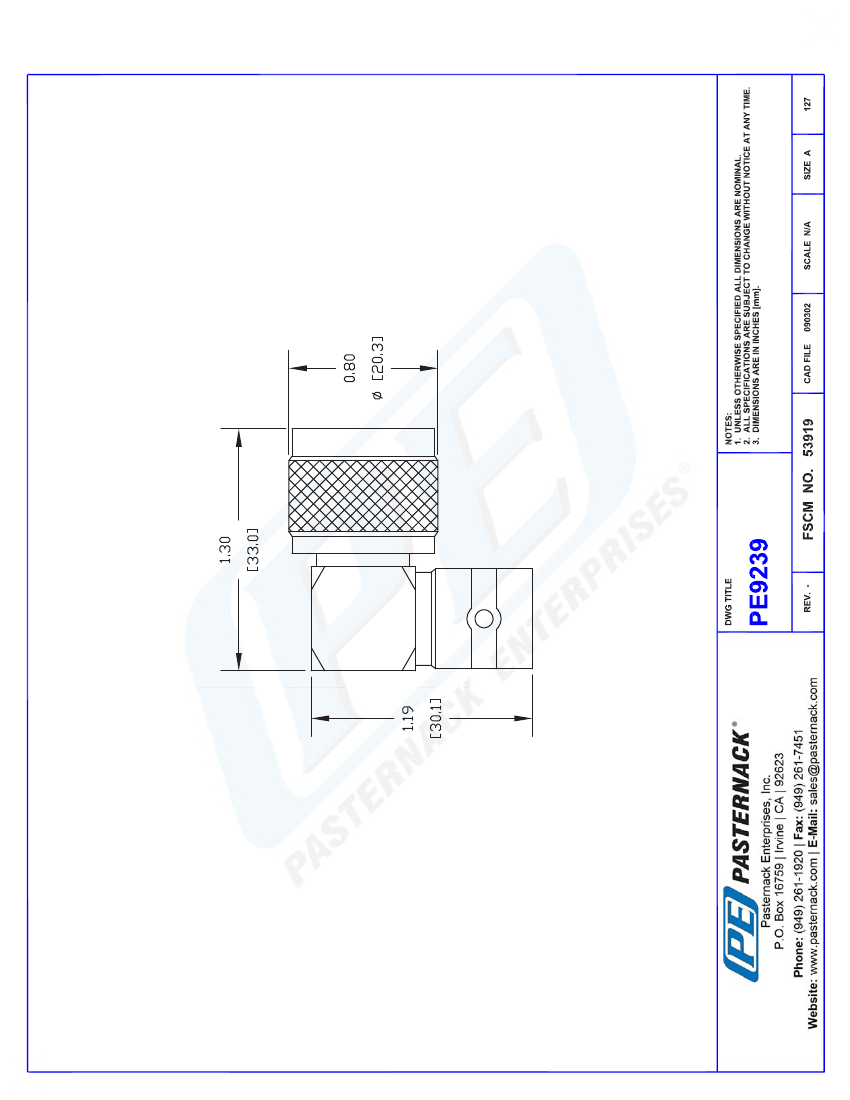

Mechanical Specifications
Temperature
Operating Range,deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-65 to +165
1.3 [33.02]
0.8 [20.32]
1.187 [30.15]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Dielectric Type
N Male
Silver
QQ-S-365
Brass, Nickel
Brass, Nickel
Teflon
C Female
Silver
QQ-S-365
Brass, Nickel
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/n-male-c-female-right-angle-adapter-pe9239-p.aspx
N Male to C Female Right Angle Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
PE9239 REV
1
