SMA Tee Adapter Female-Female-Female
TECHNICAL DATA SHEET
SMA Tee Adapter Female-Female-Female
Configuration
Connector 1
Connector Specification 1
Connector 2
Connector Specification 2
Connector 3
Connector Specification 3
Adapter Design
Body Style
SMA Female
MIL-STD-348
SMA Female
MIL-STD-348
SMA Female
MIL-STD-348
Standard
Straight
PE9246
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications

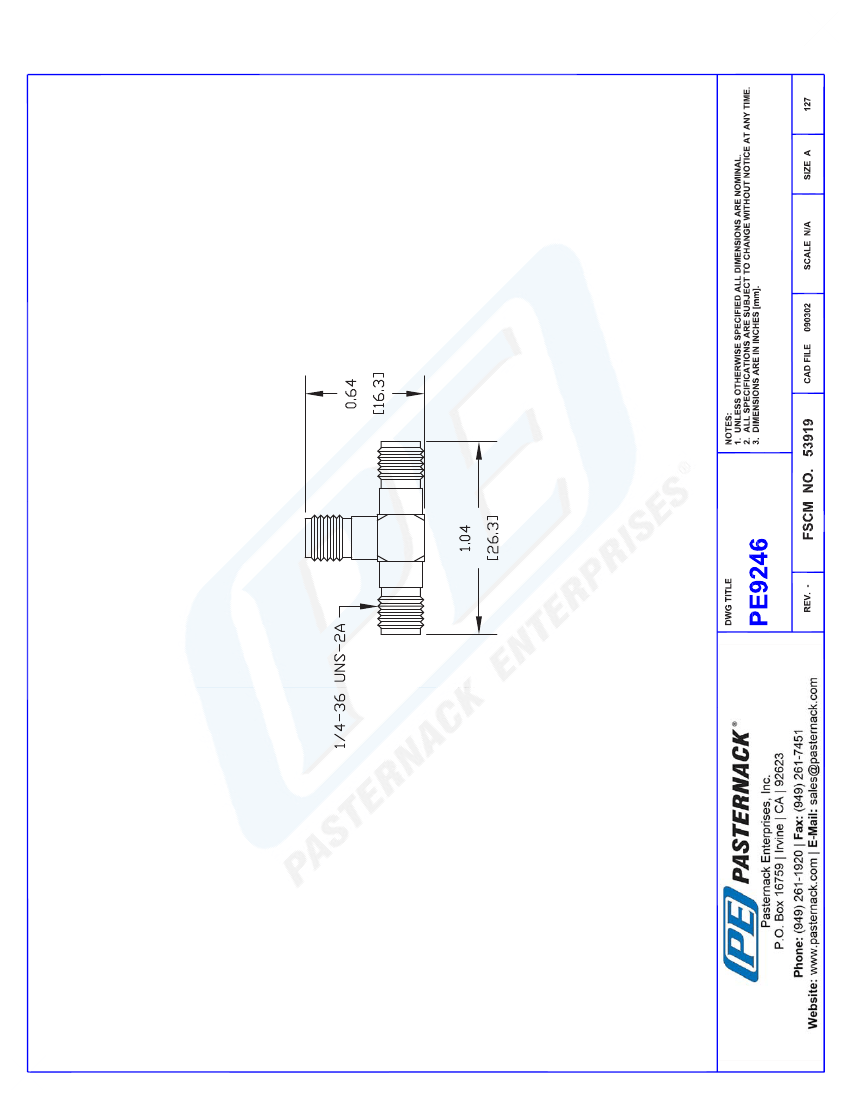

Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
1.035 [26.29]
0.255 [6.48]
0.64 [16.26]
PTFE
SMA Female
Beryllium Copper, Gold
Brass, Nickel
SMA Female
Beryllium Copper, Gold
Brass, Nickel
SMA Female
Beryllium Copper, Gold
Brass, Nickel
Dielectric Type
Connector 1
Type
Inner Conductor Material and Plating
Body Material and Plating
Connector 2
Type
Inner Conductor Material and Plating
Body Material and Plating
Connector 3
Type
Inner Conductor Material and Plating
Body Material and Plating
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Tee Adapter Female-Female-Female PE9246
PE9246 REV
1
SMA Tee Adapter Female-Female-Female
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE9246
URL:
http://www.pasternack.com/sma-female-female-female-tee-adapter-pe9246-p.aspx
SMA Tee Adapter Female-Female-Female from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
PE9246 REV
2
