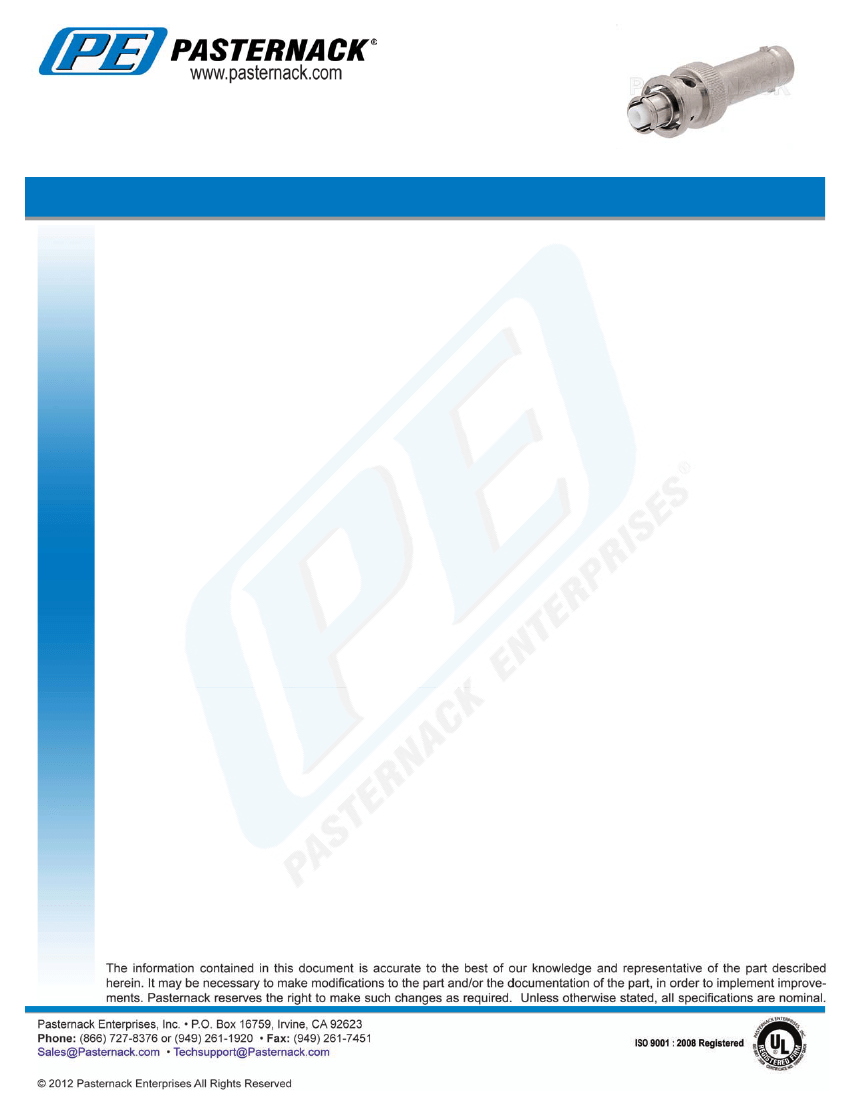

MHV Female to SHV Plug Adapter
TECHNICAL DATA SHEET
MHV Female to SHV Plug Adapter
Configuration
Connector 1
Connector 2
Adapter Design
Body Style
MHV Female
SHV Plug
Standard
Straight
PE9265
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Temperature
Operating Range,deg C

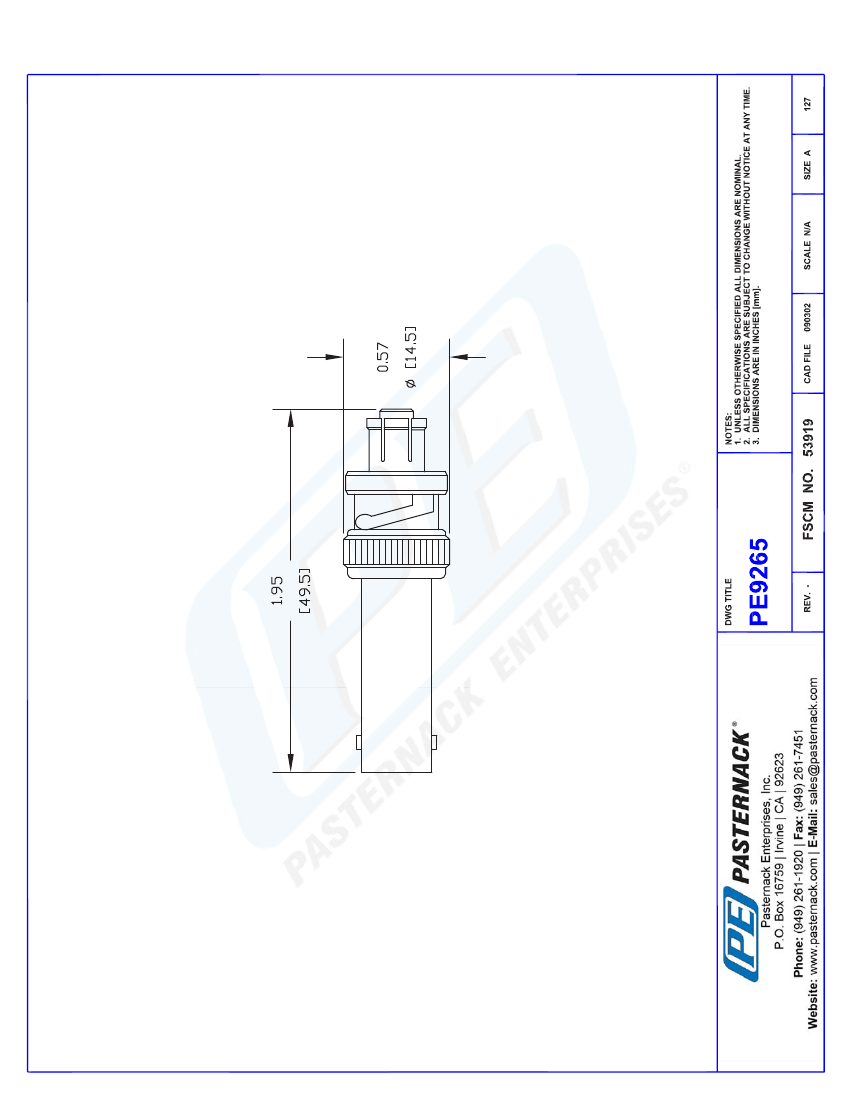

Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
1.95 [49.53]
0.57 [14.48]
PTFE
Dielectric Type
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
MHV Female
Silver
QQ-S-365
Brass, Nickel
SHV Plug
Silver
QQ-S-365
Brass, Nickel
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/mhv-female-shv-plug-straight-adapter-pe9265-p.aspx
MHV Female to SHV Plug Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
PE9265 REV
1
