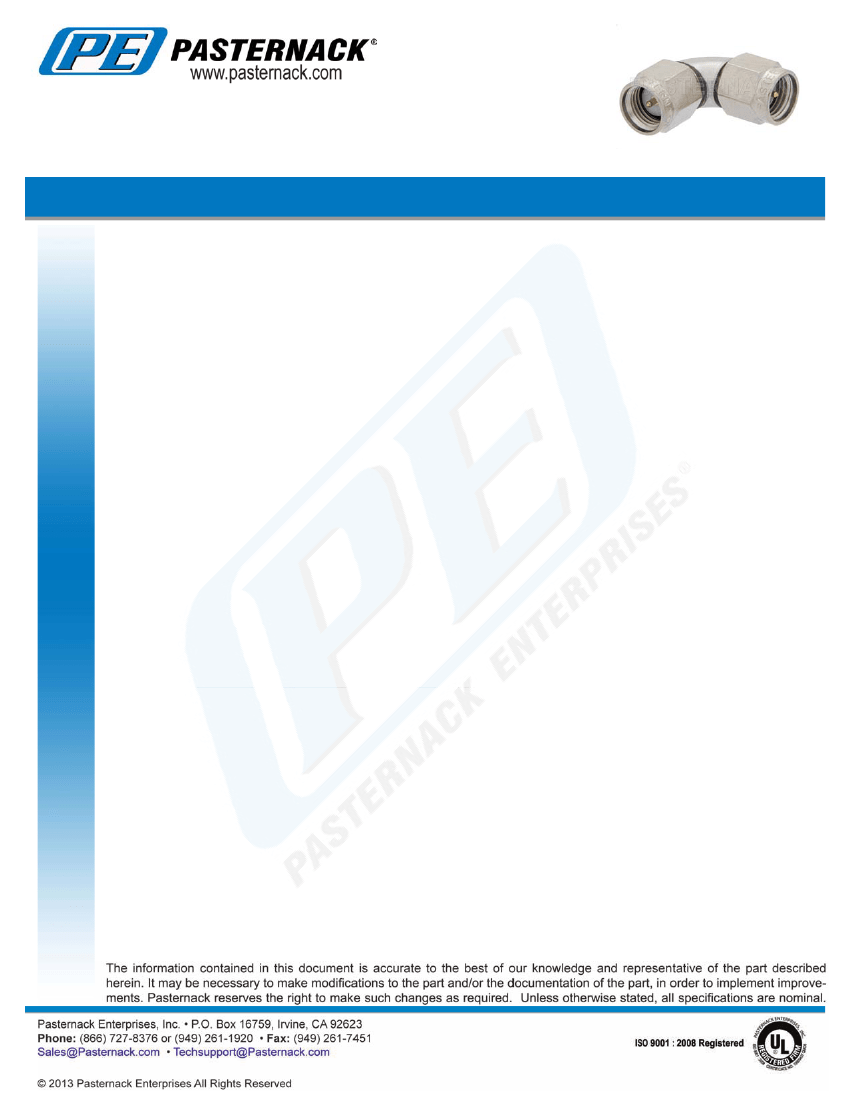

SMA Male to SMA Male Radius Right Angle Adapter
TECHNICAL DATA SHEET
SMA Male to SMA Male Radius Right Angle Adapter
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Connector Specification 2
Adapter Design
Body Style
SMA Male
50 Ohms
MIL-STD-348
SMA Male
50 Ohms
MIL-STD-348
Standard
Radius Right Angle
PE9273
Electrical Specifications
Frequency Range, GHz
Maximum VSWR
DC to 18
1.25:1

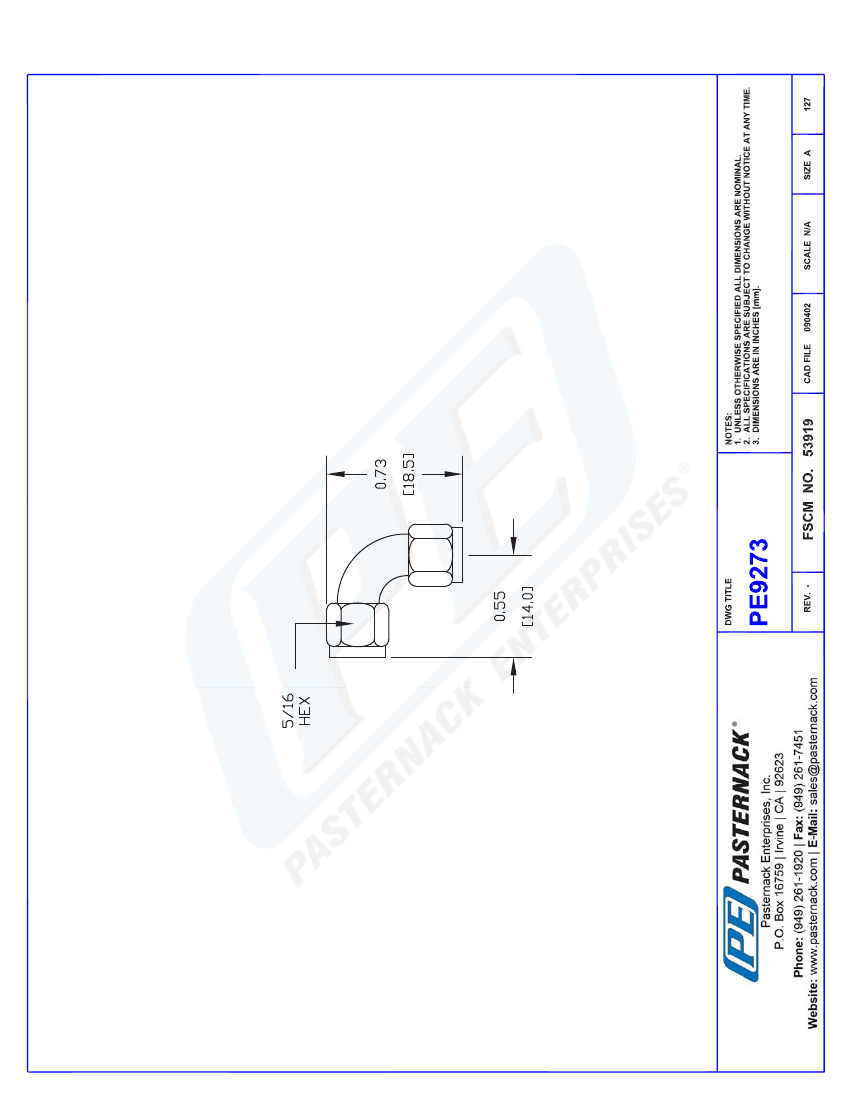

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
0.73 [18.54]
0.312 [7.92]
0.73 [18.54]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Body Plating Specification
Dielectric Type
SMA Male
Beryllium Copper, Gold
MIL-G-45204, Type II, Class 1
Brass, Nickel
5/16
5 [0.57]
Passivated Stainless Steel
QQ-P-35
Teflon
SMA Male
Beryllium Copper, Gold
MIL-G-45204, Type II, Class 1
Brass, Nickel
5/16
5 [0.57]
Passivated Stainless Steel
QQ-P-35
Teflon
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to SMA Male Radius Right Angle Adapter PE9273
PE9273 REV
1
SMA Male to SMA Male Radius Right Angle Adapter
TECHNICAL DATA SHEET
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
PE9273
Plotted and Other Data
Notes:
Values at 25 °C, sea level
SMA Male to SMA Male Radius Right Angle Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to SMA Male Radius Right Angle Adapter PE9273
URL:
http://www.pasternack.com/sma-male-sma-male-radius-right-angle-adapter-pe9273-p.aspx
PE9273 REV
2
