TNC Tee Adapter Female-Female-Female
TECHNICAL DATA SHEET
TNC Tee Adapter Female-Female-Female
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Connector 3
Adapter Design
Body Style
TNC Female
50 Ohms
TNC Female
50 Ohms
TNC Female
Standard
Tee
PE9289

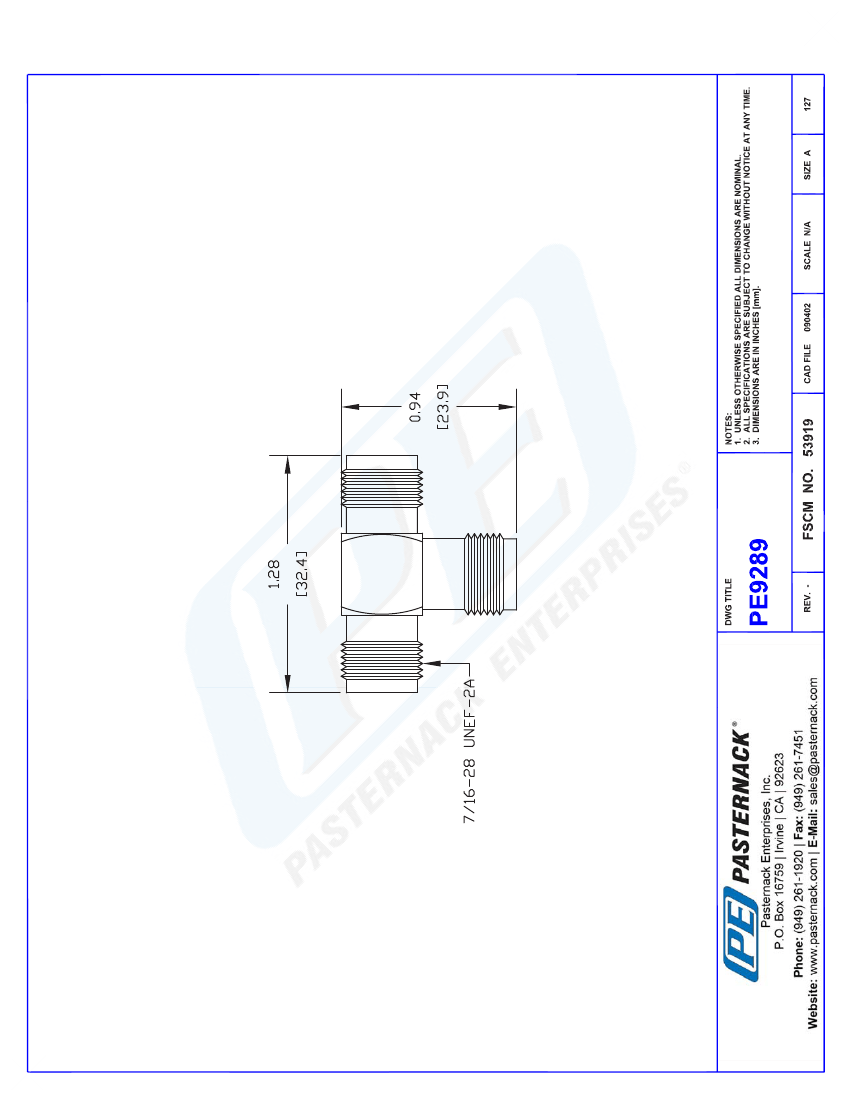

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
1.275 [32.39]
0.438 [11.13]
0.942 [23.93]
Connector 1
Type
Inner Conductor Material and Plating
Body Material and Plating
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Body Material and Plating
Dielectric Type
Connector 3
Type
Inner Conductor Material and Plating
Body Material and Plating
Dielectric Type
TNC Female
Brass, Gold
Brass, Nickel
Teflon
TNC Female
Brass, Gold
Brass, Nickel
Teflon
TNC Female
Brass, Gold
Brass, Nickel
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/tnc-female-female-female-tee-adapter-pe9289-p.aspx
TNC Tee Adapter Female-Female-Female from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
PE9289 REV
1
