KFPC050X-R3-49T datasheet, PDF

Datasheet> All Categories > The connector> The connector> KFPC050X-R3-49T

KFPC050X-R3-49T: DescriptionCard Edge Connector, 49 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric View All

KFPC050X-R3-49T Overview

Card Edge Connector, 49 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT

KFPC050X-R3-49T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	SIDE ENTRY
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	49
UL Flammability Code	94V-0

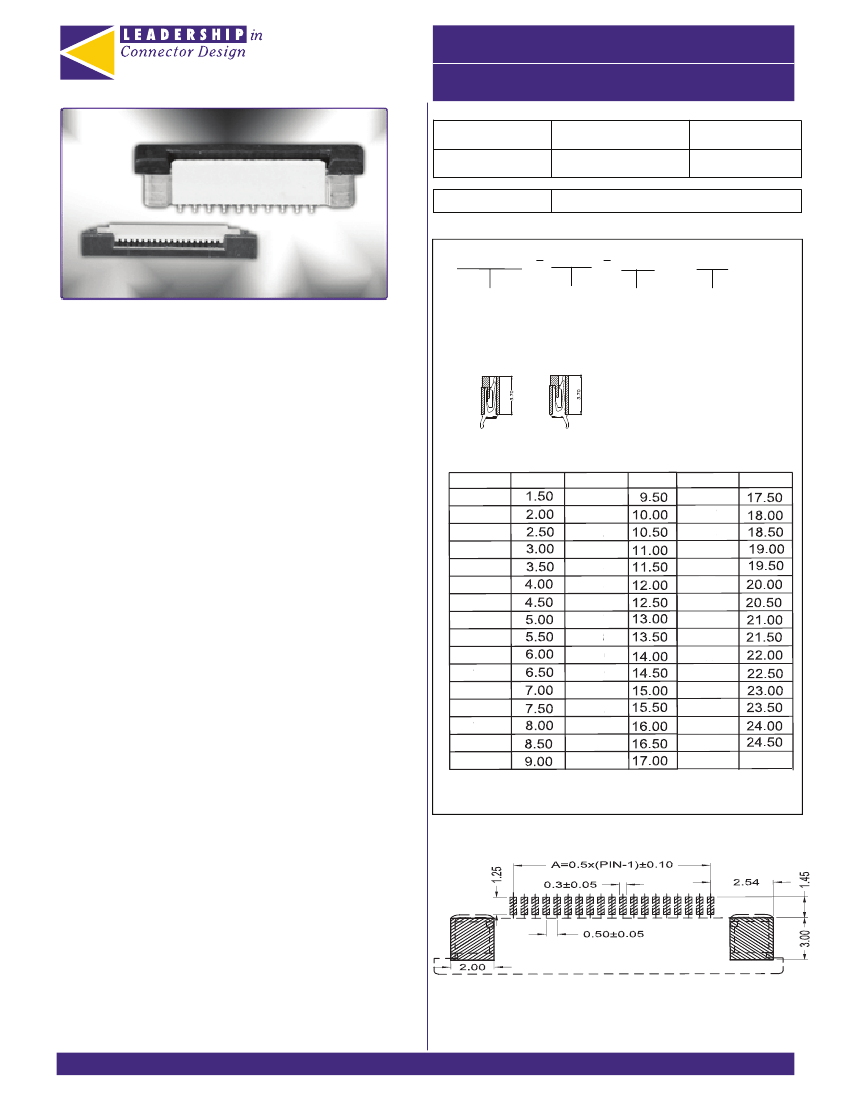

Preview

Download Datasheet

View All

0.5 FPC/FFC SMD Side Entry

KYCON

RoHS

KFPC050X Series

Documentation &

Ordering Information

Drawing

Sample

Stock

CofC

RFQ

Kycon Part #

KFPC050X-R3-13

Part Number Builder

KFPC050X

Contacts

Packaging

Series

Style

KFPC050X Series

0.5 FPC/FFC SMD Side Entry

Features

Series

KFPC050X -

0.5 FPC/FFC SMD Side Entry

Style

•

Flexible Flat Connector (FFC) and

Flexible Printed Connector (FPC) offered.

•

0.5mm Pitch version.

•

Pin counts from 4 to 50 Available

•

Offered as Zero Insertion Force (ZIF)

Contacts

No of Pin

DimA

No of Pin DimA

No of Pin

DimA

Performance Specifications

Material and Finish

Housing

: Temp plastic (UL94V-0)

Contact

: Phosphor Bronze

Plated

: Tin Plated

Current Rating :

0.5A AC/DC

Voltage Rating :

50V AC/DC

Resistance :

20m ohm.max.

Insulation Resistance :50M

ohm.Min.

Withstanding Voltage :500V

AC for one minute

Specifications

Packaging

Blank

- Bulk

Tape and Reel

R3 and R4 PCB Layout Reference

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com

2007
