KFPC100X-SZVX-05-T datasheet, PDF

Datasheet> All Categories > The connector> The connector> KFPC100X-SZVX-05-T

KFPC100X-SZVX-05-T: DescriptionCard Edge Connector, 5 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal,; CategoryThe connector The connector; File Size331KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

KFPC100X-SZVX-05-T Overview

Card Edge Connector, 5 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal,

KFPC100X-SZVX-05-T Parametric

Parameter Name	Attribute value
Maker	Kycon
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	SOLDER HOLDING POSTS
body width	0.114 inch
subject depth	0.234 inch
body length	0.488 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	700VAC V
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
insulator material	THERMOPLASTIC
Plug contact pitch	0.039 inch
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.6924 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	5
Evacuation force-minimum value	ZIF N

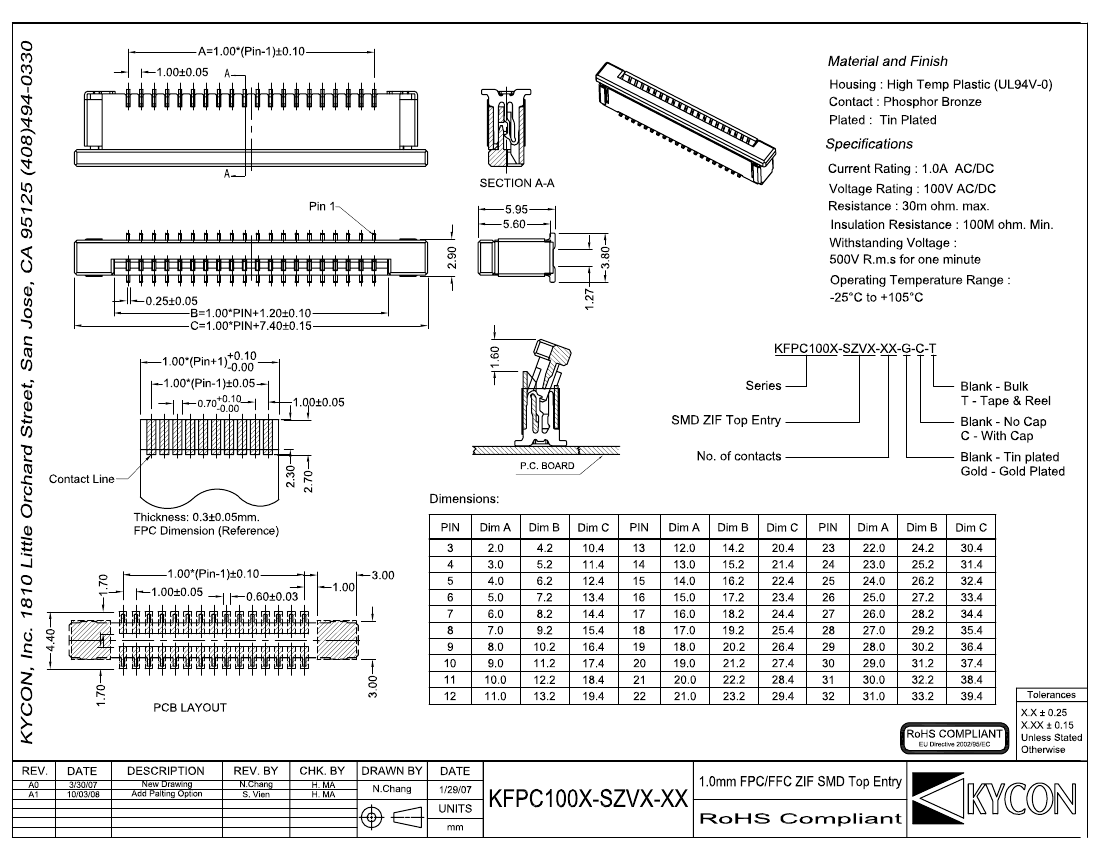

Preview

Download Datasheet

View All

KFPC100X-SZVX-05-T Related Products

	KFPC100X-SZVX-05-T	KFPC100X-SZVX-03-T	KFPC100X-SZVX-03-C	KFPC100X-SZVX-04-C	KFPC100X-SZVX-04-T	KFPC100X-SZVX-05-C	KFPC100X-SZVX-06-C	KFPC100X-SZVX-06-T	KFPC100X-SZVX-07-C	KFPC100X-SZVX-07-T
Description	Card Edge Connector, 5 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal,	Card Edge Connector, 3 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal,	Card Edge Connector, 3 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal,	Card Edge Connector, 4 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal,	Card Edge Connector, 4 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal,	Card Edge Connector, 5 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal,	Card Edge Connector, 6 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal,	Card Edge Connector, 6 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal,	Card Edge Connector, 7 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal,	Card Edge Connector, 7 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal,
Maker	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Board mount options	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS
body width	0.114 inch	0.114 inch	0.114 inch	0.114 inch	0.114 inch	0.114 inch	0.114 inch	0.114 inch	0.114 inch	0.114 inch
subject depth	0.234 inch	0.234 inch	0.234 inch	0.234 inch	0.234 inch	0.234 inch	0.234 inch	0.234 inch	0.234 inch	0.234 inch
body length	0.488 inch	0.409 inch	0.409 inch	0.449 inch	0.449 inch	0.488 inch	0.528 inch	0.528 inch	0.567 inch	0.567 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	SN	SN	SN	SN
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V
maximum insertion force	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2	2	2	2	2	2
Number of rows loaded	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.6924 mm	2.6924 mm	2.6924 mm	2.6924 mm	2.6924 mm	2.6924 mm	2.6924 mm	2.6924 mm	2.6924 mm	2.6924 mm
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	5	3	3	4	4	5	6	6	7	7
Evacuation force-minimum value	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N
