DRD4690H85

Rectifier Diode

DS6061 – 1 April 2011 (LN28301)

FEATURES



Double Side Cooling

High Surge Capability

KEY PARAMETERS

RRM

F(AV)

FSM

8500V

4690A

74500A



VOLTAGE RATINGS

Part and

Ordering

Number

Repetitive Peak

Voltages

RSM

8500

8000

7800

7400

Conditions

DRD4690H85

DRD4690H80

DRD4690H78

DRD4690H74

RRM

= V

RSM

- 500V

Outline type code: H

(See Package Details for further information)

ORDERING INFORMATION

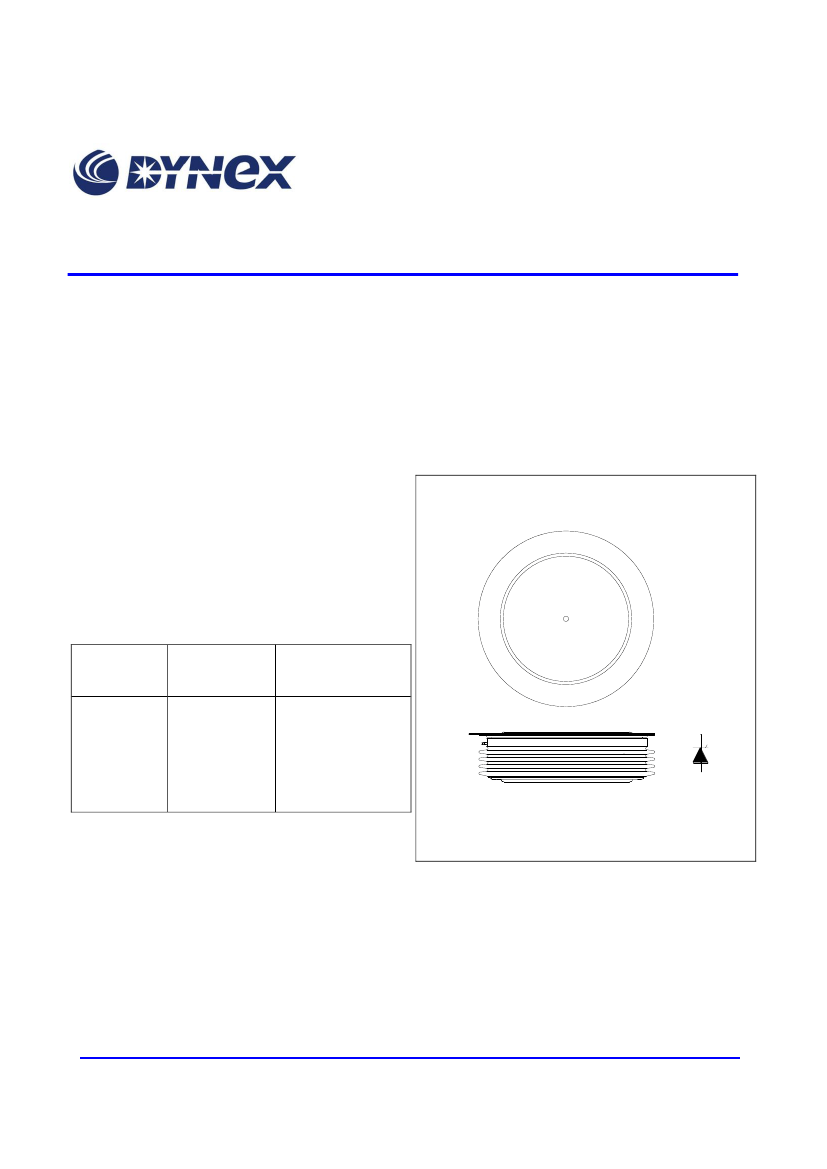

Fig. 1 Package outline

When ordering, select the required part number

shown in the Voltage Ratings selection table.

For example:

DRD4690H85

for a 8500V device

1/6

www.dynexsemi.com
