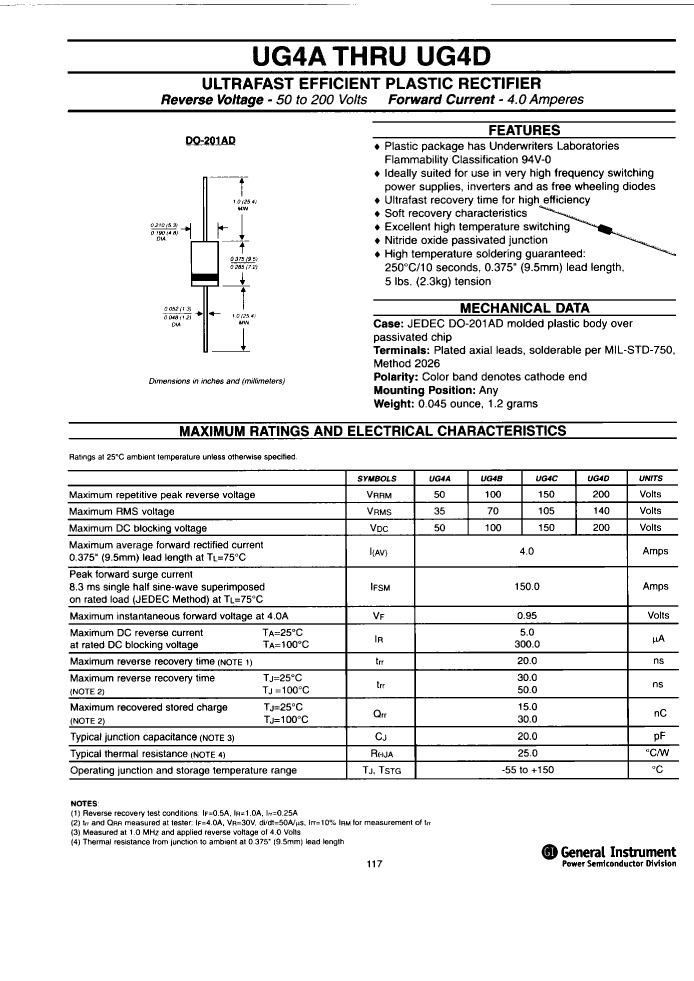

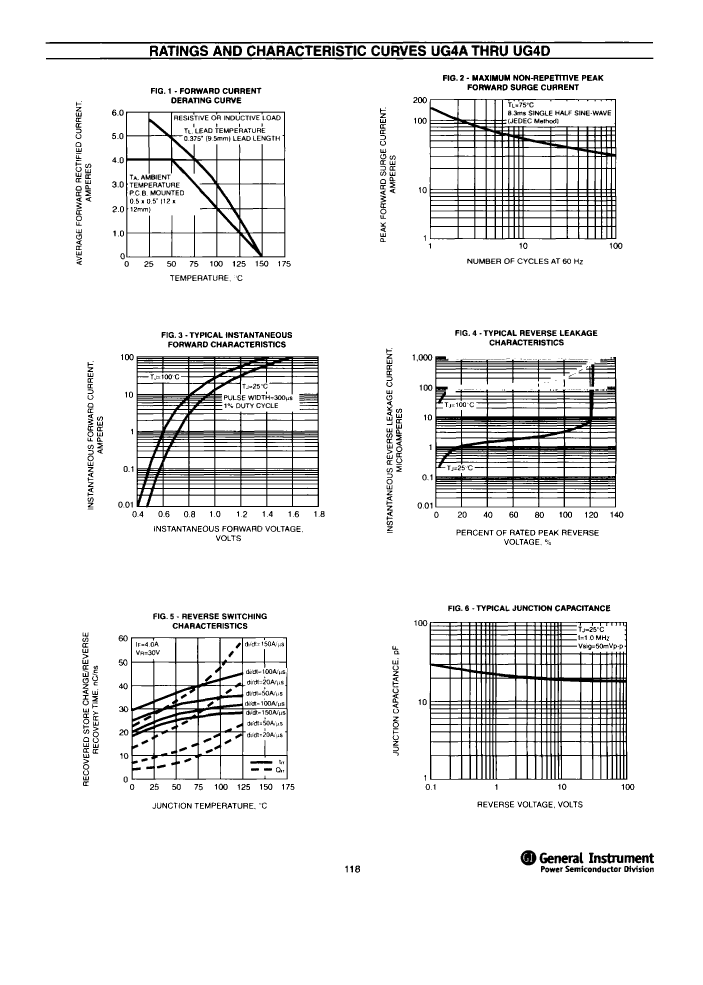

Rectifier Diode, 1 Phase, 1 Element, 4A, 150V V(RRM), Silicon, DO-201AD,
| Parameter Name | Attribute value |
| Maker | General Instrument Corp |
| Reach Compliance Code | unknown |
| Other features | FREE WHEELING DIODE |
| application | EFFICIENCY |
| Shell connection | ISOLATED |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 0.95 V |
| JEDEC-95 code | DO-201AD |
| JESD-30 code | O-PALF-W2 |
| Maximum non-repetitive peak forward current | 150 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -55 °C |
| Maximum output current | 4 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | ROUND |
| Package form | LONG FORM |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 150 V |
| Maximum reverse current | 5 µA |
| Maximum reverse recovery time | 0.03 µs |
| surface mount | NO |
| Terminal form | WIRE |
| Terminal location | AXIAL |
| UG4C | UG4D | UG4B | UG4A | |
|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 1 Element, 4A, 150V V(RRM), Silicon, DO-201AD, | Rectifier Diode, 1 Phase, 1 Element, 4A, 200V V(RRM), Silicon, DO-201AD, | Rectifier Diode, 1 Phase, 1 Element, 4A, 100V V(RRM), Silicon, DO-201AD, | Rectifier Diode, 1 Phase, 1 Element, 4A, 50V V(RRM), Silicon, DO-201AD, |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Other features | FREE WHEELING DIODE | FREE WHEELING DIODE | FREE WHEELING DIODE | FREE WHEELING DIODE |
| application | EFFICIENCY | EFFICIENCY | EFFICIENCY | EFFICIENCY |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 0.95 V | 0.95 V | 0.95 V | 0.95 V |
| JEDEC-95 code | DO-201AD | DO-201AD | DO-201AD | DO-201AD |
| JESD-30 code | O-PALF-W2 | O-PALF-W2 | O-PALF-W2 | O-PALF-W2 |
| Maximum non-repetitive peak forward current | 150 A | 150 A | 150 A | 150 A |
| Number of components | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Maximum output current | 4 A | 4 A | 4 A | 4 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | ROUND | ROUND | ROUND | ROUND |
| Package form | LONG FORM | LONG FORM | LONG FORM | LONG FORM |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 150 V | 200 V | 100 V | 50 V |
| Maximum reverse current | 5 µA | 5 µA | 5 µA | 5 µA |
| Maximum reverse recovery time | 0.03 µs | 0.03 µs | 0.03 µs | 0.03 µs |
| surface mount | NO | NO | NO | NO |
| Terminal form | WIRE | WIRE | WIRE | WIRE |
| Terminal location | AXIAL | AXIAL | AXIAL | AXIAL |
| Maker | General Instrument Corp | General Instrument Corp | - | General Instrument Corp |
