UPT5 – UPT48
UPTB5 – UPTB48
SCOTTSDALE DIVISION
SURFACE MOUNT TRANSIENT
VOLTAGE SUPPRESSORS
DESCRIPTION
Microsemi’s new Powermite UPT series transient voltage suppressors
feature oxide-passivated chips, with high-temperature solder bonds for high
surge capability, and negligible electrical degradation under repeated surge
conditions.
In addition to its size advantages, Powermite package includes a full
metallic bottom that eliminates the possibility of solder flux entrapment at
assembly and a unique locking tab serving as an integral heat sink.
Innovative design makes this device fully compatible for use with
automatic insertion equipment.
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
http://www.microsemi.com
APPEARANCE
WWW .
Microsemi
.C
OM
DO-216
FEATURES
•
•
•
•
•
•
•
•
Powermite Package with standoff voltages 5 to 48 V
Both unidirectional and Bidirectional Versions
Available as “UPT” and “UPTB” respectively
Peak Pulse Power 1000 W for 8/20 µs pulse
Clamping Time in pico-seconds
Integral heat sink / locking tabs
Full metallic bottom eliminates flux entrapment
Moisture classification is Level 1 with no dry pack
required per IPC/JEDEC J-STD-020B
Options for screening in accordance with MIL-PRF-
19500 for JAN, JANTX, JANTXV, or JANS are
available by adding MQ, MX, MV, or MSP prefixes
respectively to part numbers, e.g. MXUPT15,
MVUPTB28, MSPUPT10, etc.
•
•
•
•
APPLICATIONS / BENEFITS
Protects sensitive components such as IC’s,
2
CMOS, Bipolar, BiCMOS, ECL, DTL, T L, etc.
Protection from switching transients & induced
RF
Compliant to IEC61000-4-2 and IEC61000-4-4
for ESD and EFT protection respectively
Secondary lightning protection per IEC61000-4-5
with 42 Ohms source impedance:
Class 1: UPT/UPTB5 to 17
Class 2: UPT/UPTB5 to 12
Class 3: UPT/UPTB5
Secondary lightning protection per IEC61000-4-5
with 12 Ohms source impedance:
Class 1: UPT/UPTB5 to 8
•
MAXIMUM RATINGS
•
•
•
•
•
Operating and Storage Temperature: –65ºC to
+150ºC
Peak Pulse Power: 1000 W at 8/20 µs pulse (See
Figure 1 and 2).
Peak Pulse Power: 150 W at 10/1000 µs pulse (See
Figure 2).
Impulse Repetition Rate (duty factor): 0.01%
Thermal resistance: 15ºC/W junction to base tab or
85ºC/W junction to ambient when mounted on FR4
PC board with 1 oz copper
Steady-State Power: 2.5 Watts
Solder Temperatures: 260ºC for 10 s (maximum)
•
•
•
•
MECHANICAL AND PACKAGING
CASE: Void-free transfer molded thermosetting
epoxy compound meeting UL94V-0
FINISH: Tin-Lead plated over copper and readily
solderable per MIL-STD-750, method 2026
POLARITY: Cathode designated by TAB 1
MARKING: The last three digits of part number,
e.g. UPT5 is T05, UPT12 is T12, UPT24 is T24,
UPTB5 is B05, UPTB12 is B12, UPTB24 is B24,
etc.
WEIGHT: 0.016 gram (approximate)

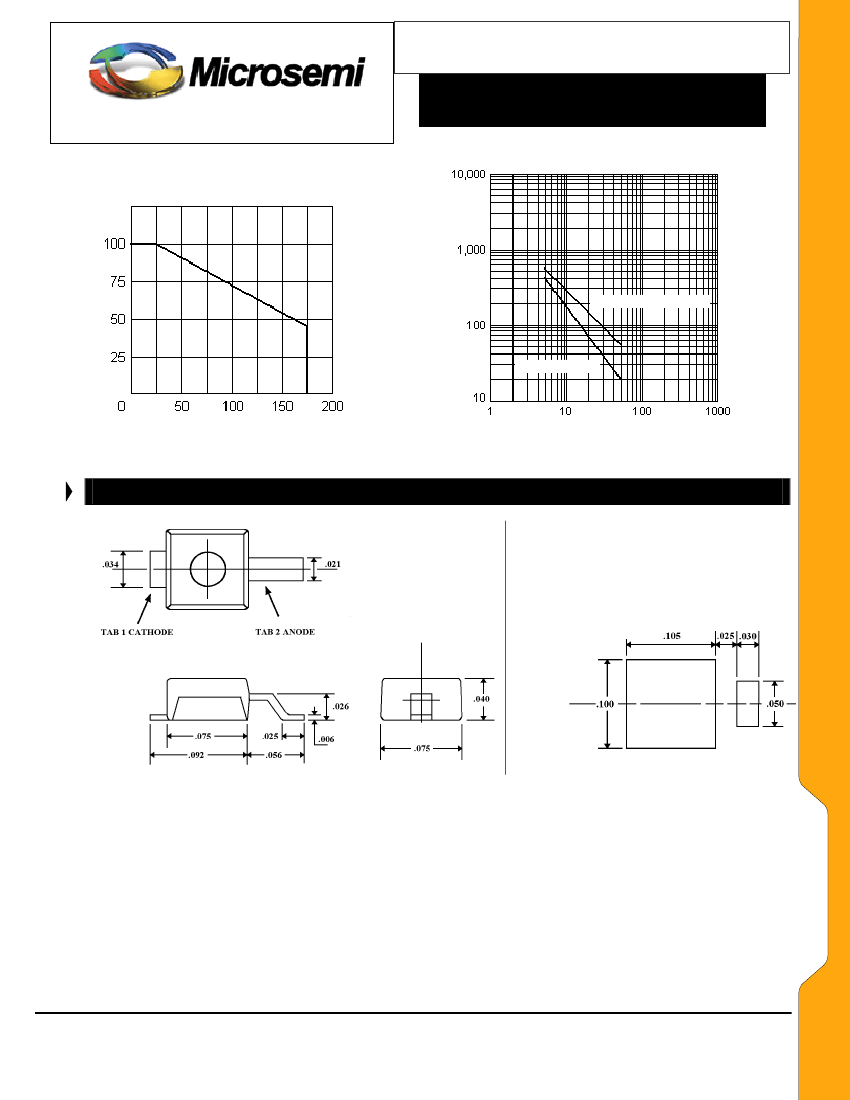

See package dimension on last page
Tape & Reel option: Standard per EIA-481-B
7 inch 3,000 pieces and 13 inch 12,000 pieces
UPT5 – UPT48
UPTB5 – UPTB48
•
•
•
•
•
Copyright
2003
1-19-2004 REV A
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 1
UPT5 – UPT48
UPTB5 – UPTB48
SCOTTSDALE DIVISION
SURFACE MOUNT TRANSIENT
VOLTAGE SUPPRESSORS
WWW .
Microsemi
.C
OM
ELECTRICAL CHARACTERISTICS @ 25
o
C
DEVICE TYPE
RATED
STANDOFF
VOLTAGE
V
WM
Unidirectional
UPT5
UPT8
UPT10
UPT12
UPT15
UPT17
UPT24
UPT28
UPT33
UPT48
Bi-directional
UPTB5
UPTB8
UPTB10
UPTB12
UPTB15
UPTB17
UPTB24
UPTB28
UPTB33
UPTB48
V
5
8
10
12
15
17
24
28
33
48
MINIMUM
BREAKDOWN
VOLTAGE
V
(BR)
@ 1 mA
V
6.0
9.0
11.0
13.8
16.7
19.0
28.4
31.0
36.8
54.0
MAXIMUM
STANDBY
CURRENT
MAXIMUM
PEAK
PULSE
CURRENT*
I
PP
A
89.4
62.1
47.2
40.3
33.9
30.8
22.0
19.2
16.4
11.2
MAXIMUM
CLAMPING
VOLTAGE
V
C
@ 10A
V
9.5
13.7
18.0
21.6
26.0
29.2
43.2
47.8
56.7
84.3
MAXIMUM
TEMP.
COEFFICIENT
of V
(BR)
I
D
@ V
WM
µA
50
2
2
1
1
1
1
1
1
1
α
V(BR)
%/ C
.030
.040
.045
.050
.055
.060
.070
.075
.080
.090
o
* See Figure 1 for I
PP
waveform
Symbol
V
(BR)
V
WM
P
PP
I
D
I
PP
C
SYMBOLS & DEFINITIONS
Definition
Breakdown Voltage: The minimum voltage the device will exhibit at a specified current.
Working Peak Standoff Voltage: The maximum peak voltage that can be applied over the operating
temperature range.
Peak Pulse Power: The peak power that can be applied for a specified pulse width and waveform.
Standby Current: The maximum current that will flow at the specified voltage and temperature.
Peak Pulse Current: The peak current that can be applied for a specified pulse width and waveform.
Capacitance: The capacitance in picofarads of the TVS as defined @ 0 volts at a frequency of 1 MHz.
OUTLINE AND CIRCUIT
l
P
– PULSE CURRENT – (% of I
PP
)
P
PP
– PEAK PULSE POWER – (kW)
tp: Pulse time duration is defined as
that point where the pulse current
decays to 50% of I
PP
.
(Rise time to 100% of I
PP
= 8µs.)
EXPONENTIAL PULSE
(Pulse time duration is defined as
that point where the pulse current
decays to 50% of I
PP
.)
UPT5 – UPT48
5 – UPT48
UPTB5 – UPTB48
UPTB5 – UPTB48
t – TIME – (µs)
tp – PULSE TIME

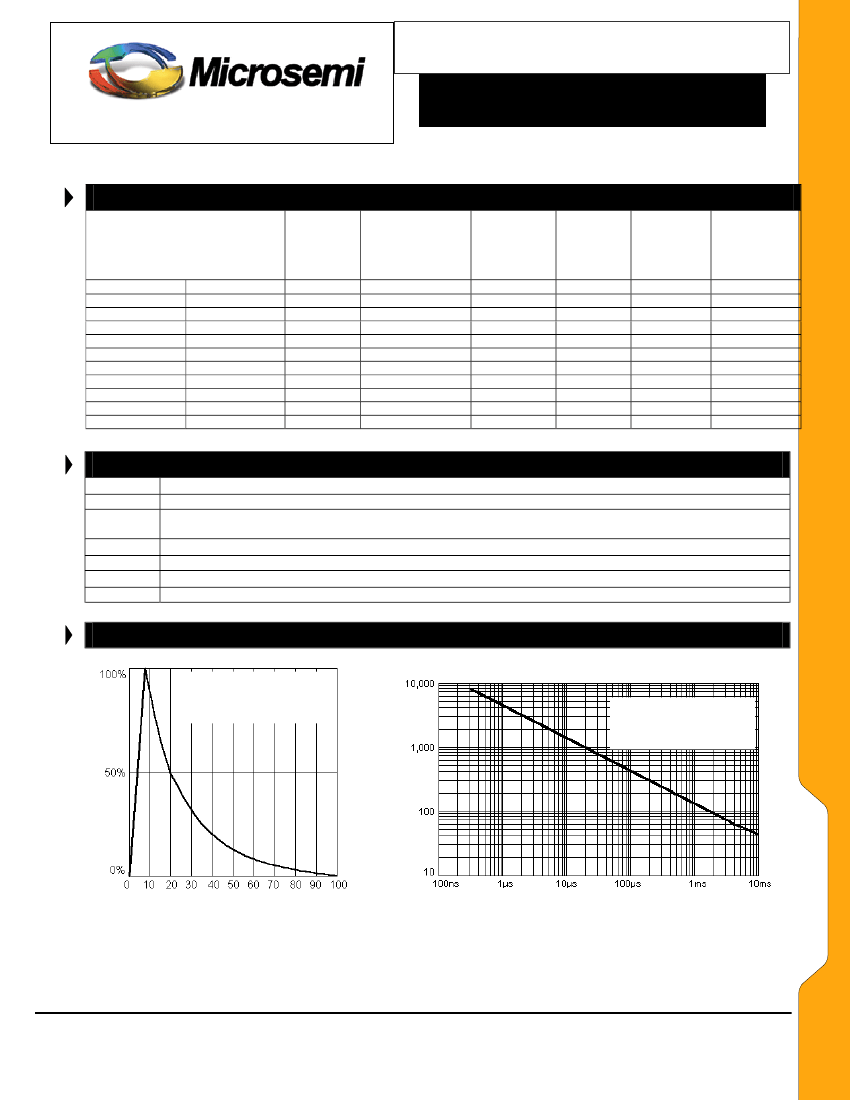

FIGURE 1
Pulse Waveform for Exponential Surge
FIGURE 2
Peak Pulse Power vs. Pulse Duration
Copyright
2003
1-19-2004 REV A
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 2
