UPD71065G datasheet, PDF - EEWORLD Datasheet

UPD71065G: DescriptionInterface Circuit, CMOS, PDSO28, 0.375 INCH, PLASTIC, SOP-28; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size441KB，21 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

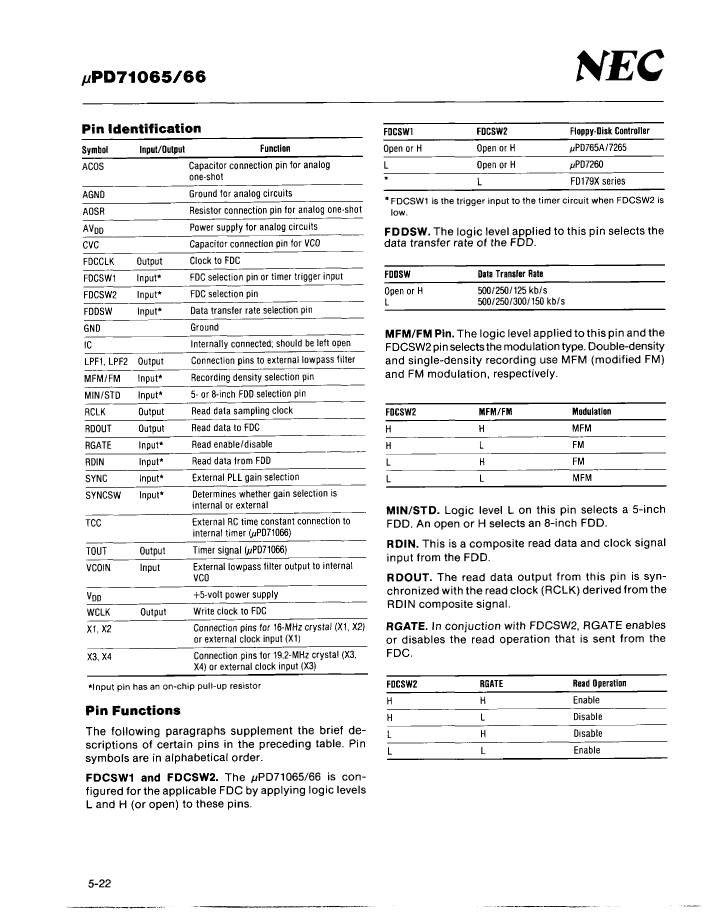

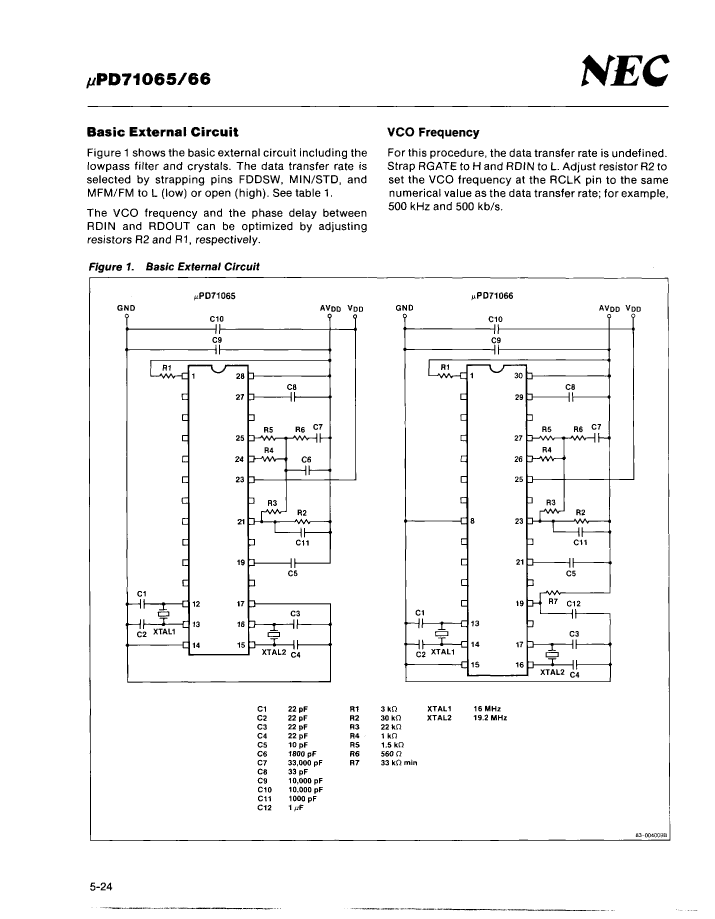

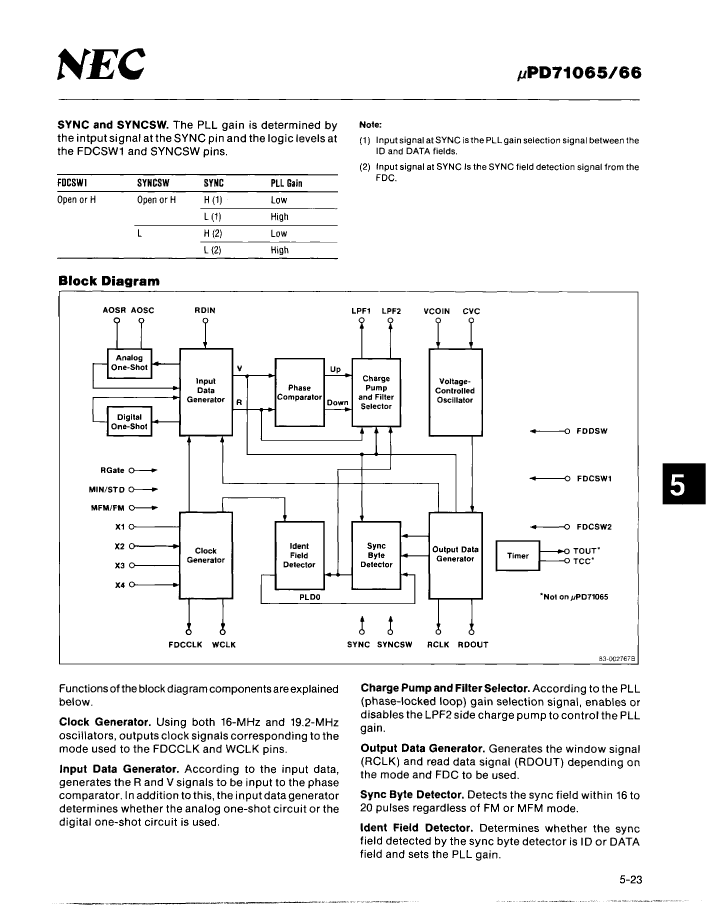

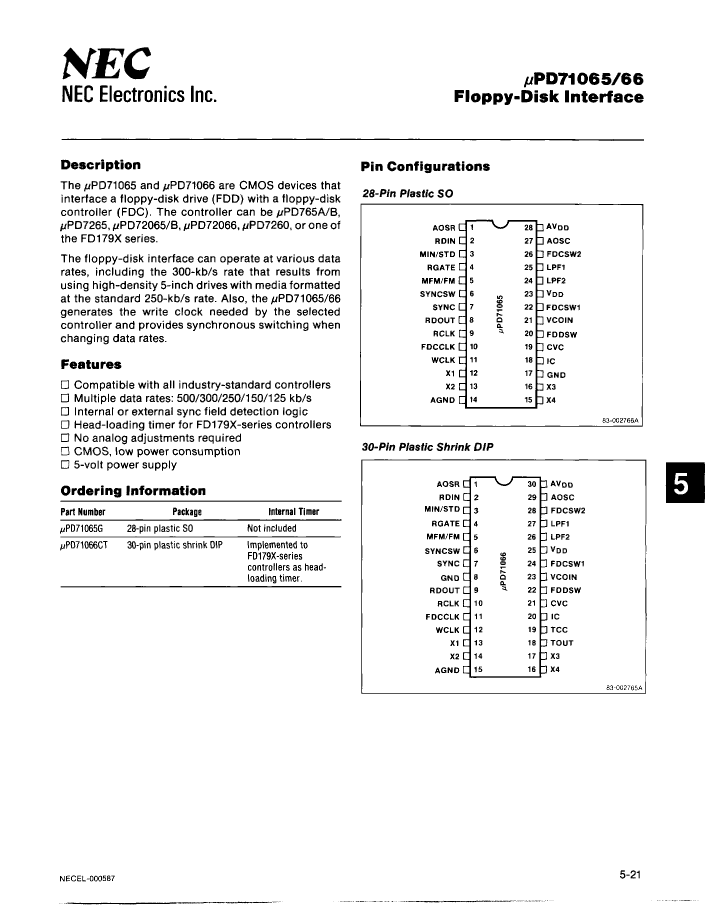

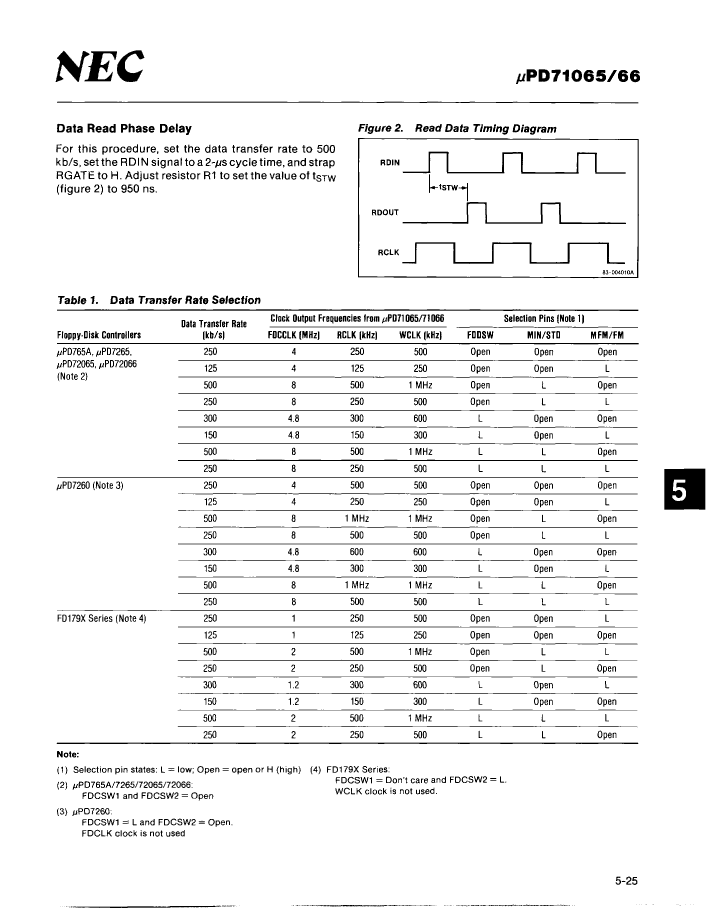

UPD71065G Overview

Interface Circuit, CMOS, PDSO28, 0.375 INCH, PLASTIC, SOP-28

Parameter Name	Attribute value
Maker	NEC Electronics
package instruction	0.375 INCH, PLASTIC, SOP-28
Reach Compliance Code	unknown
Interface integrated circuit type	INTERFACE CIRCUIT
JESD-30 code	R-PDSO-G28
Number of functions	1
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL

	UPD71065G	UPD71066CT
Description	Interface Circuit, CMOS, PDSO28, 0.375 INCH, PLASTIC, SOP-28	Interface Circuit, CMOS, PDIP30, 0.400 INCH, SHRINK, PLASTIC, DIP-30
Maker	NEC Electronics	NEC Electronics
package instruction	0.375 INCH, PLASTIC, SOP-28	0.400 INCH, SHRINK, PLASTIC, DIP-30
Reach Compliance Code	unknown	unknown
Interface integrated circuit type	INTERFACE CIRCUIT	INTERFACE CIRCUIT
JESD-30 code	R-PDSO-G28	R-PDIP-T30
Number of functions	1	1
Number of terminals	28	30
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL
