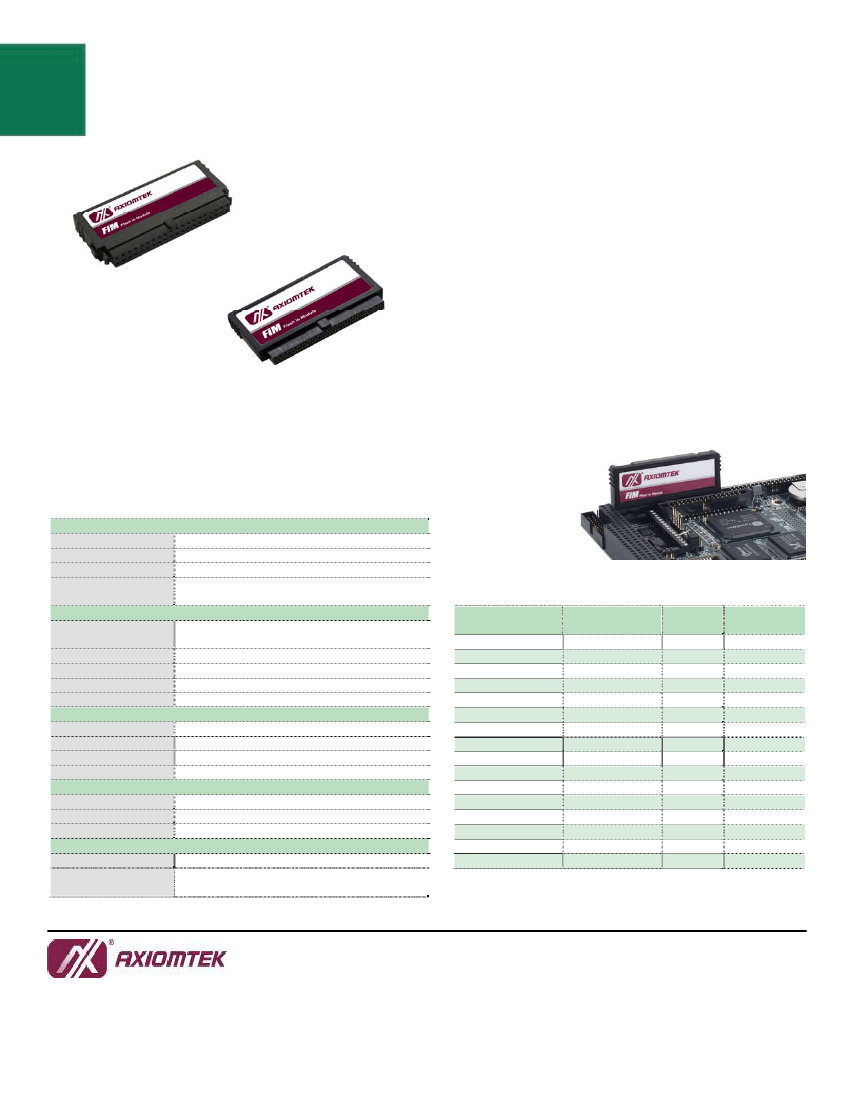

FIM-60 Series
Flash in Module
■
Features
IDE/ATA standard interface
Capacity: 128MB to 16GB
IDE 40pin Flash Module
Master/slave switch selectable
Suitable for high demanding applications
Well performed under harsh operating environment and industrial
temperatures
Anti-vibration & shock resistance
Data integrity with Error Detection Code/Error Correction Code
IDE 44pin Flash Module
(EDC/ECC)
Perfect replacement of hard drive, compatible with IDE/ATA 40-pin
and 44-pin
High operating reliability & durability
Low power consumption
Fully compatible with devices and OS
AXIOMTEK’s FIM (Flash in Module) series is designed into ATA protocol type
with compatible IDE standard interface based on flash memory technology. This
flash module is offered with various capacities ranging from 128MB up to16GB
and can operate under industrial temperature range goes from -40°C~85°C in
the harsh operating environments. The features of reliability, high performance,
cost-effective and easy-to-integrate designs make FIM series a perfect solution
over traditional storage devices.
■
Introduction
■
Specifications
Capacity
Interface
IDE Transfer Mode
Sustained Speed Rate
General Specification
128MB~16GB
40pin/44pin IDE/ATA
PIO Mode 0-4/MwDMA Mode 0-2/UDMA 0-2 Mode
128MB~512M : Read: 10MB/sec ; Write: 10MB/sec
1GB~16GB : Read: 20MB/sec ; Write: 11MB/sec
Environmental Specification
0˚C~70˚C (14°F ~158°F) (standard temp.)
-40˚C~85˚C (-40 °F ~185°F) (industrial temp.)
-55˚C~125˚C (-67°F ~ 257°F)
10%~95% non-condensing
5G(7~2000Hz)
50G/10ms
System Reliability
High reliability based on the internal ECC function
>3,000,000 hours
2,000,000 times
Support
Power Requirment
+3.3V/+5V single power supply operation
Auto stand-by and sleep mode
150mA(max.)
Physical Specification
PC Mechanical Cover and UL-94
40-pin: 60.2 x 27.8 x 6.4mm (W x H x L)
44-pin: 50.3 x 27.3 x 5.8mm (W x H x L)
■
Ordering Information
Models
(standard temp.)
FIM128V40-60
FIM256V40-60
FIM512V40-60
FIM01GV40-60
FIM02GV40-60
FIM04GV40-60
FIM08GV40-60
FIM16GV40-60
FIM128V44-60
FIM256V44-60
FIM512V44-60
FIM01GV44-60
FIM02GV44-60
FIM04GV44-60
FIM08GV44-60
FIM16GV44-60
Models
(industrial temp.)
FIM128V40-66
FIM256V40-66
FIM512V40-66
FIM01GV40-66
FIM02GV40-66
FIM04GV40-66
FIM08GV40-66
FIM16GV40-66
FIM128V44-66
FIM256V44-66
FIM512V44-66
FIM01GV44-66
FIM02GV44-66
FIM04GV44-66
FIM08GV44-66
FIM16GV44-66
IDE
interface
40 PIN
40 PIN
40 PIN
40 PIN
40 PIN
40 PIN
40 PIN
40 PIN
44 PIN
44 PIN
44 PIN
44 PIN
44 PIN
44 PIN
44 PIN
44 PIN
Capacity
128MB
256MB
512MB
1GB
2GB
4GB
8GB
16GB
128MB
256MB
512MB
1GB
2GB
4GB
8GB
16GB
Operating Temperature
Storage Temperature
Humidity
Vibration
Shock
ECC technology
MTBF
R/W Endurance
Wear-leveling
DC Input Voltage
Power Mode
Power Consumption
Enclosure Material
Dimensions
* All the specifications and photos are subjected to be changed without notice.
