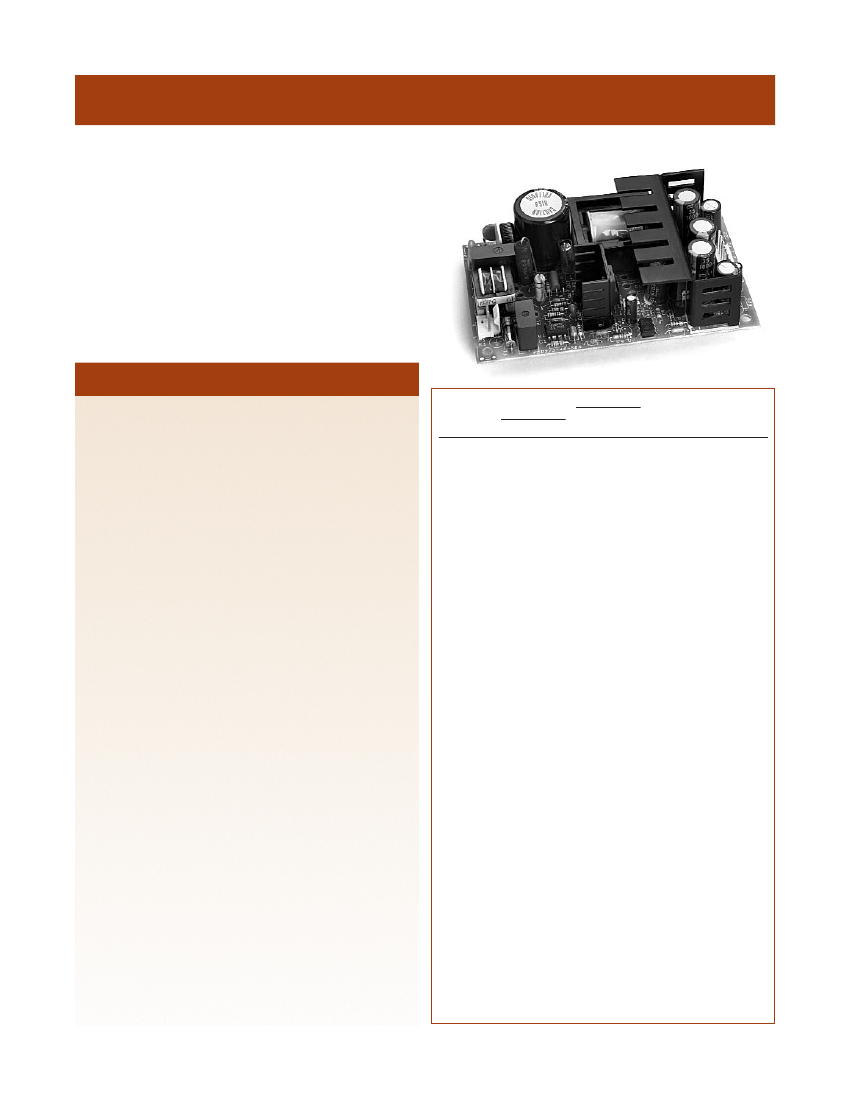

40W

O

PEN

-F

RAME

S

WITCHING

P

OWER

S

UPPLIES

•

Single, Dual and Triple Output Models

Universal AC-Input and DC-Input Models

CE

Mark: UL/CSA/EN60950 Approvals

BABT Approvals

Austel CCL Certification

Models with UL544/CSA C22.2-601/EN60-601

Medical Safety Approvals

EN55022/FCC Class B Input Line Filter

0% Minimum Load Requirement

Over-Current/Short-Circuit Protection

2-Year Warranty

Minimum 200,000-Hour MTBF

C

HARACTERISTICS

Input Voltage .............................FLU and MDU models, universal

input range 85-265 VAC single

phase or 100-370 VDC. DC-input

models, 36-75 VDC (48V, nominal).

Input Line Frequency ................47-440 Hz (ac input models).

Input Line Protection .................MOV transient protected (FLU and

MDU series). Input line fuse provid-

ed on-board. (See Note 1.)

EMI Filter...................................Standard. Performance surpasses

conducted EMI requirements of

EN55022/FCC Class B by 10 dB, typ.

DC Output .................................See table. (Note 2.)

Continuous Output Power.........40W, maximum.

Leakage Current .......................MDU Series, non-patient contact rat-

ing: 500 µA, maximum.

Output Voltage Adjust ...............Primary output adjustable ±5%.

Auxiliary outputs fixed.

Efficiency...................................62-75%, typical (nominal input line

voltage, nominal load conditions).

Hold-Up Time ............................FLU and MDU models: 16 ms (115

VAC input), 32 ms (230 VAC input),

minimum, at full load

Overload Protection ..................Power-limit circuit.

Short-Circuit Protection.............Continuous.

Over-Voltage Protection............Primary output only.

Soft Start ...................................Standard on all models.

Design Topology .......................Flyback converter with current-mode

control.

Frequency of Operation ............40 kHz (fixed).

Hi-Pot Isolation..........................FLU Series: 5300 VDC, input-to-out-

put for one minute. (Note 3.)

MDU Series: 5700 VDC, input-to-out-

put for one minute. (Note 3.)

Noise, Ripple and Spike ...........1% peak-to-peak, maximum. (See

Note 5.)

Temperature Range ..................-20°C to +70°C.

Output Power De-Rating...........De-rate output power and current

linearly 2%/°C from +50°C to +70°C.

Temperature Coefficient ............±0.05%/°C over the entire operating

temperature range.

Relative Humidity ......................0 to 95%, non-condensing.

Altitude ......................................0 to 10,000 feet.

Cooling ......................................Convection cooling is adequate.

Moving air is recommended for oper-

ation in a confined area.

Storage Temperature ................-40°C to +85°C.

Storage Humidity ......................0 to 95%, non-condensing.

Mean Time Between Failures ...>200,000 hours. (Note 6.)

Model

Output Current Output

Output Voltage Min. Nom. Max. Voltage Line Load Cross-

Output (V)

(A)

Tol. Reg. Reg. Reg.

AC-DC Singles

FLU1-40-1AD

FLU1-40-2AD

FLU1-40-3AD

FLU1-40-4AD

FLU1-40-5AD

FLU1-40-6AD

V1

5

9

12

15

24

28

0.0

85-265 VAC Input

8.00 8.00 1.0%

4.40 4.40 1.0%

3.30 3.30 1.0%

2.70 2.70 1.0%

1.70 1.70 1.0%

1.40 1.40 1.0%

0.1% 0.2%

—

AC-DC Singles

MDU1-40-1AD

MDU1-40-2AD

MDU1-40-3AD

MDU1-40-4AD

MDU1-40-5AD

MDU1-40-6AD

V1

5

9

12

15

24

28

To UL544/EN60-601/CSA 22.2-601.1

0.0

8.00 8.00 1.0%

4.40 4.40 1.0%

3.30 3.30 1.0%

2.70 2.70 1.0%

1.70 1.70 1.0%

1.40 1.40 1.0%

0.1% 0.2%

—

AC-DC Duals

FLU2-40-1AD

FLU2-40-2AD

FLU2-40-3AD

FLU2-40-4AD

FLU2-40-5AD

FLU2-40-6AD

FLU2-40-7AD

V1

V2

V1

V2

V1

V2

V1

V2

V1

V2

+5

+12

+5

+15

+5

+24

+5

+28

5

(ISO)

5

(ISO)

0.0

85-265 VAC Input

3.00 5.00 1.0%

2.00 3.00 5.0%

3.00 5.00 1.0%

1.70 2.00 5.0%

3.00 5.00 1.0%

1.00 1.50 5.0%

3.00 5.00 1.0%

1.00 1.00 5.0%

6.00 6.00 1.0%

2.00 2.00 3.0%

2.00 3.00 1.0%

1.00 2.00 3.0%

1.50 2.50 1.0%

1.20 2.00 3.0%

0.2% 1.0% —

0.5% 3.0% 4.0%

0.2% 1.0% —

0.5% 3.0% 4.0%

0.2% 1.0% —

0.5% 3.0% 4.0%

0.2% 1.0% —

0.5% 3.0% 4.0%

0.2% 1.0% —

0.5% 1.0% 1.0%

0.2% 1.0% —

0.5% 1.0% 1.0%

0.2% 1.0% —

0.5% 1.0% 1.0%

V1 12

(ISO)

V2 12

(ISO)

V1 15

(ISO)

V2 15

(ISO)

AC-DC Duals

MDU2-40-1AD

MDU2-40-2AD

MDU2-40-3AD

MDU2-40-4AD

V1

V2

V1

V2

V1

V2

V1

V2

+5

+12

+5

+15

+5

+24

+5

+28

To UL544/EN60-601/CSA 22.2-601.1

0.0

3.00 5.00 1.0%

2.00 3.00 5.0%

3.00 5.00 1.0%

1.70 2.00 5.0%

3.00 5.00 1.0%

1.00 1.50 5.0%

3.00 5.00 1.0%

1.00 1.00 5.0%

0.2% 1.0% —

0.5% 3.0% 4.0%

0.2% 1.0% —

0.2% 3.0% 4.0%

0.2% 1.0% —

0.2% 3.0% 4.0%

0.2% 1.0%

0.5% 3.0%

—

4.0

08

POWER GENERAL

152 Will Drive · Canton, MA 02021 USA · Phone 781-828-6216 · Fax 781-830-1155 · Email power@nidecpg.com

40W

O

PEN

-F

RAME

S

WITCHING

P

OWER

S

UPPLIES

Model

Output Current Output

Output Voltage Min. Nom. Max. Voltage Line Load Cross-

Output (V)

(A)

Tol. Reg. Reg. Reg.

Model

Output Current Output

Output Voltage Min. Nom. Max. Voltage Line Load Cross-

Output (V)

(A)

Tol. Reg. Reg. Reg.

DC-DC Duals

DC2-40-1AC

DC2-40-2AC

DC2-40-3AC

DC2-40-4AC

V1

V2

V1

V2

V1

V2

V1

V2

+5

+12

+5

+15

+5

+24

+5

+28

0.0

36-75 VDC Input

3.00 5.00 1.0%

2.00 3.00 5.0%

3.00 5.00 1.0%

1.70 2.00 5.0%

3.00 5.00 1.0%

1.00 1.50 5.0%

3.00 5.00 1.0%

1.00 1.00 5.0%

0.2% 1.0% —

0.5% 3.0% 4.0%

0.2% 1.0% —

0.2% 3.0% 4.0%

0.2% 1.0% —

0.2% 3.0% 4.0%

0.2% 1.0% —

0.5% 3.0% 4.0%

AC-DC Triples

MDU3-40-1AD

V1

V2

V3

V1

V2

V3

V1

V2

V3

V1

V2

V3

+5

+12

-12

+5

+12

-5

+5

+15

-15

+5

+24

-12

To UL544/EN60-601/CSA 22.2-601.1

0.0

3.00 5.00 1.0%

1.50 3.00* 5.0%

0.50 0.70 5.0%

3.00 5.00 1.0%

1.50 3.00* 5.0%

1.00 1.00 3.0%

3.00 5.00 1.0%

1.20 2.00

†

5.0%

0.50 0.60 5.0%

3.00 5.00 1.0%

0.75 1.50

§

5.0%

0.50 0.70 5.0%

0.2% 1.0% —

1.0% 3.0% 4.0%

0.2% 1.0% 1.0%

0.2% 1.0% —

1.0% 3.0% 4.0%

0.2% 1.0% 1.0%

0.2% 1.0% —

1.0% 3.0% 4.0%

0.2% 1.0% 1.0%

0.2% 1.0% —

1.0% 3.0% 4.0%

0.2% 1.0% 1.0%

MDU3-40-2AD

MDU3-40-3AD

AC-DC Triples

FLU3-40-1AD

V1

V2

V3

V1

V2

V3

V1

V2

V3

V1

V2

V3

+5

+12

-12

+5

+12

-5

+5

+15

-15

+5

+24

-12

0.0

85-265 VAC Input

3.00 5.00 1.0%

1.50 3.00* 5.0%

0.50 0.70 5.0%

3.00 5.00 1.0%

1.50 3.00* 5.0%

1.00 1.00 3.0%

3.00 5.00 1.0%

1.20 2.00

†

5.0%

0.50 0.60 5.0%

3.00 5.00 1.0%

0.75 1.50

§

5.0%

0.50 0.70 5.0%

5.00 6.00 1.0%

0.30 0.50 4.0%

5.00 6.00 1.0%

0.30 0.50 4.0%

0.2% 1.0% —

1.0% 3.0% 4.0%

0.2% 1.0% 1.0%

0.2% 1.0% —

1.0% 3.0% 4.0%

0.2% 1.0% 1.0%

0.2% 1.0% —

1.0% 3.0% 4.0%

0.2% 1.0% 1.0%

0.2% 1.0% —

1.0% 3.0% 4.0%

0.2% 1.0% 1.0%

0.2% 0.5% —

0.5% 1.0% 1.0%

0.2% 0.5% —

0.5% 1.0% 1.0%

MDU3-40-4AD

DC-DC Triples

DC3-40-1AC

V1

V2

V3

V1

V2

V3

V1

V2

V3

V1

V2

V3

+5

+12

-12

+5

+12

-5

+5

+15

-15

+5

+24

-12

0.0

36-75 VDC Input

3.00 5.00 1.0%

1.50 3.00* 5.0%

0.50 0.70 5.0%

3.00 5.00 1.0%

1.50 3.00* 5.0%

1.00 1.00 3.0%

3.00 5.00 1.0%

1.20 2.00

†

5.0%

0.50 0.60 5.0%

3.00 5.00 1.0%

0.75 1.50

§

5.0%

0.50 0.70 5.0%

0.2% 1.0% —

1.0% 3.0% 4.0%

0.2% 1.0% 1.0%

0.2% 1.0% —

1.0% 3.0% 4.0%

0.2% 1.0% 1.0%

0.2% 1.0% —

1.0% 3.0% 4.0%

0.2% 1.0% 1.0%

0.2% 1.0% —

1.0% 3.0% 4.0%

0.2% 1.0% 1.0%

FLU3-40-2AD

FLU3-40-3AD

DC3-40-2AC

FLU3-40-4AD

DC3-40-3AC

FLU3-40-5AD

V1 5

(ISO)

V2 12

(ISO)

V3 12

(ISO)

V1 5

(ISO)

V2 15

(ISO)

V3 15

(ISO)

DC3-40-4AC

FLU3-40-6AD

* Peak output current rating = 5.0A (<60 seconds, duty cycle <10%).

† Peak output current rating = 3.0A (<60 seconds, duty cycle <10%).

§ Peak output current rating = 2.0A (<60 seconds, duty cycle <10%).

Notes

1. Replace the input line fuse with the same type and rating.

Recommended: 2A/250V slow-blow fuse.

2. The sum of primary and auxiliary output currents from triple

output models -1AD through -4AD must not exceed 5.0A.

3. Hi-pot isolation is 2200 VDC from the input of the supply to

ground for 60 seconds.

4. All measurements are made directly at the terminals of the

power supply.

5. Peak-to-peak and RMS metering equipment must have a 20

MHz frequency response with probes and cables that main-

tain a frequency response of 20 Hz to 20 MHz. Output rip-

ple and spikes are measured directly at the output terminals

of the power supply with a 0.1 µF ceramic capacitor. The

probe ground band must make direct contact with the output

return or common terminal to prevent erroneous noise mea-

surements.

6. MTBF is calculated using the parts stress method in MIL-

HDBK 217F (ground benign, T

A

= +25°C).

7. Output voltage tolerance is measured under nominal load

current conditions.

8. Line regulation is measured under nominal load conditions

as the input voltage is varied from 85 to 265 VAC (ac-input

models) or from 36 to 75 VDC (dc-input models).

9. Load regulation is measured at 115 VAC or 230 VAC. For

single output models, load regulation is measured while out-

put current is varied from 0% to 100% of full load. With mul-

tiple output models, the output under test is brought to 60%

Model Selection Guide

FLU 2 - 40 - 1 A D

Series

FLU = AC Input

MDU = AC Input

(UL544/IEC601 Safety)

DC = DC Input

Number of Outputs

Output Power (W)

Input Voltage

D = 85-265 VAC

C = 36 to 75 VDC

Construction

A = Open PCB

B = L-Bracket

C = Full Enclosure

Output Voltage (Model)

10.

11.

12.

13.

14.

of nominal load; load current is then varied +40%/-30% of nominal while other outputs

are held at nominal load conditions.

Cross-regulation is tested by changing the load on the primary output from 50% to

100% of nominal load while measuring the voltage change on the auxiliary output

under test.

The FLU1-40, FLU2-40 and FLU3-40 series are approved to UL1950 (File E140439),

CSA22.2 No. 234 (File LR52335), EN60950/IEC950/DIN VDE 0805 (TÜV Licenses

R679206, R0097621, R9071501), and Austel CCL (Certificate A92/PS/004).

The FLU3-40 series has BABT/EN41003 approval ((NS/4199/123/R/604674).

The MDU1-40, MDU2-40 and MDU3-40 series are approved to UL544 (File E151357),

CSA 22.2 No. 601.1 (File LR52335) and EN60-601/IEC601-1/DIN VDE 0750 (TÜV

Licenses R9271474, R9271475, R9271476).

The DC2-40 and DC3-40 series are approved to UL1950 (File E140439), CSA22.2 No.

234 (File LR52335), and EN60950/IEC950/DIN VDE 0805 (TÜV License R9071501).

POWER GENERAL

152 Will Drive · Canton, MA 02021 USA · Phone 781-828-6216 · Fax 781-830-1155 · Email power@nidecpg.com

9

40W

O

PEN

-F

RAME

S

WITCHING

P

OWER

S

UPPLIES

FLU/MDU/DC 40W SERIES

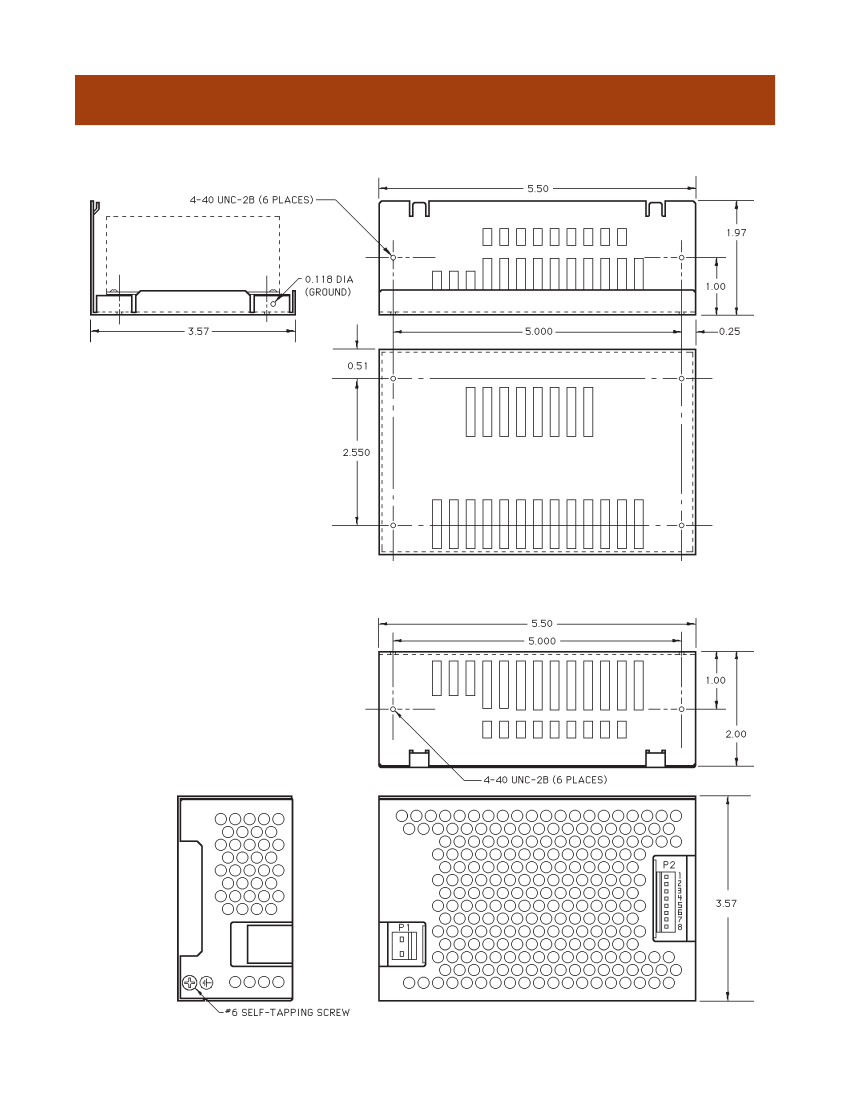

A. Dimensions shown are in inches.

B. Tolerances = 0.00 ±0.01 inch.

0.000 ±0.005 inch.

C. P1 input connectors are Molex 26-62-4030. The mating con-

nector combines Molex housing 43061-0003 and crimp ter-

minal 08-70-1030.

D. P2 output connectors for the 40W series, except for models

5 and 6 of the FLU3-40 series, are Molex 26-60-4060. The

mating connector combines Molex housing 43061-0006 and

crimp terminal 08-70-1030. Models 5 and 6 of the FLU3-40

series use Molex 26-60-4080 for the P2 connector. The mat-

ing connector uses Molex housing 43061-0008 and crimp

terminals 08-70-1030.

Pin-Out

1

2

3

4

5

6

7

8

FLU2-40

FLU3-40

FLU1-40 MDU1-40 Models 1-4 Models 5-7 MDU2-40 DC2-40 Models 1-4

V1

Return

N/A

V1

Return

N/A

V2

V1

Common

N/C

N/A

+V1

(ISO)

+V1

(ISO)

- V1

(ISO)

- V1

(ISO)

- V2

(ISO)

+V2

(ISO)

N/A

V2

V1

Common Common Common

N/C

V3

N/A

FLU3-40

Models 5-6 MDU3-40

+V2

(ISO)

- V2

(ISO)

+V1

(ISO)

+V1

(ISO)

- V1

(ISO)

- V1

(ISO)

+V3

(ISO)

- V3

(ISO)

DC3-40

V2

V1

Common Common

V3

N/A

10

POWER GENERAL

152 Will Drive · Canton, MA 02021 USA · Phone 781-828-6216 · Fax 781-830-1155 · Email power@nidecpg.com

40W

P

OWER

S

UPPLY

E

NCLOSURES

L-Bracket

To order, change the part

number suffix from

AD

to

BD

or from

AC

to

BC.

1. Material is 0.036-inch cold-rolled

steel (20 AWG).

2. Finish is zinc and clear chromate

plating.

3. Dimensions are in inches.

4. Tolerances = 0.00 ±0.01

0.000 ±0.005

L-Bracket and Cover

To order full enclosure, change the part

number suffix from

AD

to

CD

or from

AC

to

CC.

1. Material is 0.036-inch cold-rolled steel (20 AWG).

2. Finish is zinc and clear chromate plating.

3. Dimensions are in inches.

4. Tolerances = 0.00 ±0.01

0.000 ±0.005

POWER GENERAL

152 Will Drive · Canton, MA 02021 USA · Phone 781-828-6216 · Fax 781-830-1155 · Email power@nidecpg.com

11

MDU1-40-3AD

MDU1-40-3AD Overview

Preview

Recommended Resources
