N Male to N Male Precision Cable 36 Inch
Length Using 165 Series Coax, RoHS
TECHNICAL DATA SHEET
N Male to N Male Precision Cable 36 Inch Length Using 165 Series Coax, RoHS
Configuration
Connector 1
Connector 2
Cable Type
N Male
N Male
165 Series
PE35028-36
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Velocity of Propagation, %
RF Shielding, dB
Maximum Operating Voltage, Vrms
Typical Performance by Frequency
Frequency 1
Frequency, GHz
VSWR
Insertion Loss
Frequency 2
Frequency, GHz
VSWR
Insertion Loss
Frequency 3
Frequency, GHz
VSWR
Insertion Loss
Frequency 4
Frequency, GHz
VSWR
Insertion Loss
Frequency 5
Frequency, GHz
VSWR
Insertion Loss
Electrical Specification Notes:
2
1.03:1
0.21 dB/ft [ 0.69 dB/m ]
DC to 18
50
1.4:1
69.5
90
1,900
6
1.08:1
0.31 dB/ft [ 1.02 dB/m ]
10
1.12:1
0.4 dB/ft [ 1.31 dB/m ]
14
1.18:1
0.5 dB/ft [ 1.64 dB/m ]
18
1.3:1
0.6 dB/ft [ 1.97 dB/m ]
Short lengths up to 24” long may exhibit VSWR
measurements up to 9% higher.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Male to N Male Precision Cable 36 Inch Length Using 165 Series Coax, RoHS PE35028-36
PE35028-36 REV
1
N Male to N Male Precision Cable 36 Inch
Length Using 165 Series Coax, RoHS
TECHNICAL DATA SHEET
Mechanical Specifications
Cable Assembly
Cable Type
Temperature
Temperature Operating Range, deg C
Size
Length, in [mm]
.
PE35028-36
165 Series
-50 to +205
36 [914.4]
1 [25.4]
One Time Minimum Bend Radius, in [mm]
Cable
Center Conductor Type
Cable Inner Conductor
No of Shields
Dielectric Type
Jacket Material
Jacket Diameter, in [mm]
Solid
Beryllium Copper, Silver
3
PTFE
FEP
0.165 [4.19]
Connector 1
Type
Configuration
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
N Male
Straight
Gold
Passivated Stainless Steel
Passivated Stainless Steel
PTFE
Connector 2
Type
Configuration
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
N Male
Straight
Gold
Passivated Stainless Steel
Passivated Stainless Steel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Male to N Male Precision Cable 36 Inch Length Using 165 Series Coax, RoHS PE35028-36
PE35028-36 REV
2
N Male to N Male Precision Cable 36 Inch
Length Using 165 Series Coax, RoHS
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE35028-36
N Male to N Male Precision Cable 36 Inch Length Using 165 Series Coax, RoHS from Pasternack Enterprises has same
day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability
and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Male to N Male Precision Cable 36 Inch Length Using 165 Series Coax, RoHS PE35028-36
URL:
http://www.pasternack.com/n-male-n-male-165-non-magnetic-series-cable-assembly-pe35028-36-p.aspx
PE35028-36 REV
3
© 2013 Pasternack Enterprises All Rights Reserved
PE35028-36

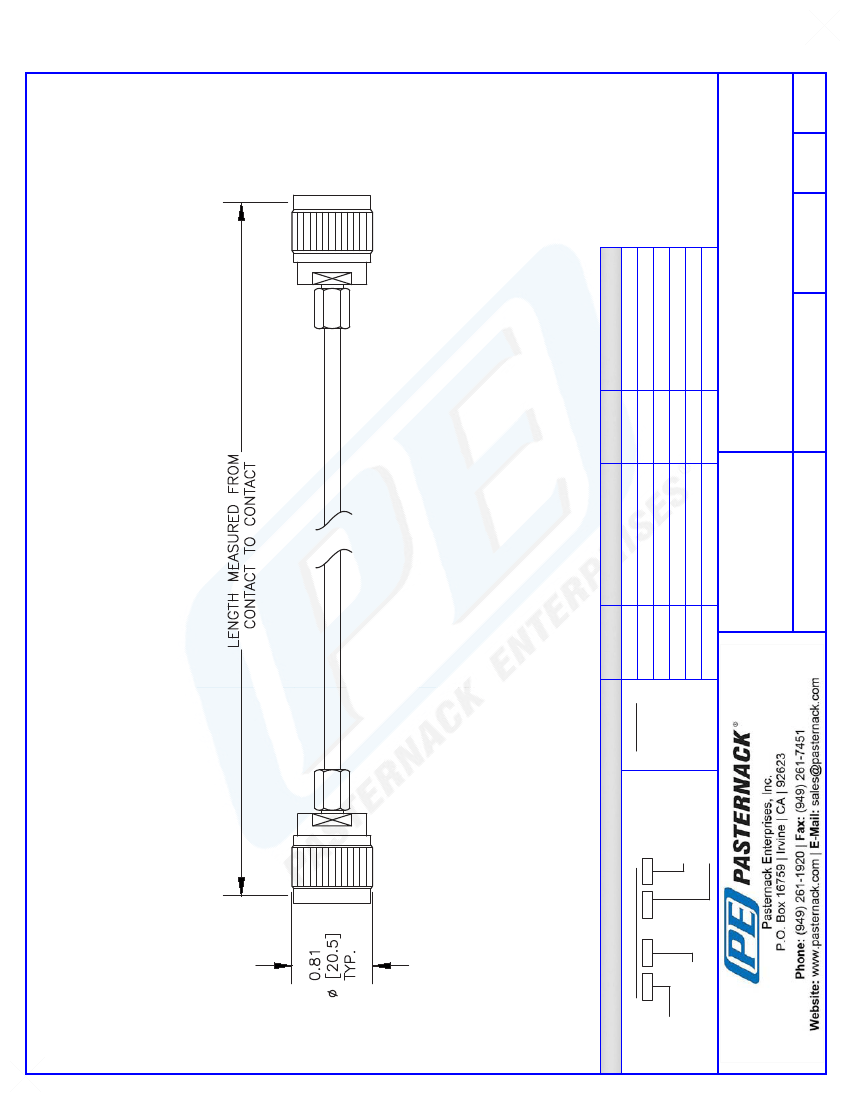

CAD Drawing
N Male to N Male Precision Cable 36 Inch Length Using 165 Series Coax, RoHS
PE35028-36 REV
N
MALE
N
MALE
Part # Ext.
Part Number Configuration
Examples
-12
yy
-24
-
xx
uu
PE3 zzz
PE3000LF-100
-36
PE3000-100
00 - 99999
CM = Centimeters PE3000LF-100CM
-48
LF = RoHS Compliant
< Blank > = Inches
-60
< Blank > = Standard
PE3000-100CM
Length
-xx
Note: LF applies only to RF cables
How To Order
Length In Inches
12''
24"
36"
48"
60"
Custom Length
DWG TITLE
Part # Ext.
-25CM
-50CM
-75CM
-100CM
-125CM
-xxCM
Length In Centimeters
25Cm
50Cm
75Cm
100Cm
125Cm
Custom Length
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. LENGTH TOLERANCE IS ± 1.5% OR 3/8", WHICHEVER IS GREATER.
PE35028
FSCM NO. 53919
CAD FILE
030508
SCALE N/A
SIZE A
XXXX
4
