SMA Male to TNC Male Precision Cable 24 Inch
Length Using 150 Series Coax, RoHS
TECHNICAL DATA SHEET
SMA Male to TNC Male Precision Cable 24 Inch Length Using 150 Series Coax, RoHS
Configuration
Connector 1
Connector 2
Cable Type
SMA Male
TNC Male
150 Series
PE35419-24
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Velocity of Propagation, %
RF Shielding, dB
Maximum Operating Voltage, Vrms
Typical Electrical Specifications
Frequency 1
Frequency, GHz
VSWR
Insertion Loss
Frequency 2
Frequency, GHz
VSWR
Insertion Loss
Frequency 3
Frequency, GHz
VSWR
Insertion Loss
Frequency 4
Frequency, GHz
VSWR
Insertion Loss
Frequency 5
Frequency, GHz
VSWR
Insertion Loss
Electrical Specification Notes:
2
1.11:1
0.21 dB/ft [ 0.69 dB/m ]
DC to 18
50
1.4:1
69.5
90
1,900
6
1.15:1
0.32 dB/ft [ 1.05 dB/m ]
10
1.23:1
0.42 dB/ft [ 1.38 dB/m ]
14
1.33:1
0.53 dB/ft [ 1.74 dB/m ]
18
1.38:1
0.64 dB/ft [ 2.1 dB/m ]
Short lengths up to 24” long may exhibit VSWR
measurements up to 9% higher.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications:
SMA Male to TNC Male Precision Cable 24 Inch Length Using 150 Series Coax, RoHS
PE35419-24
PE35419-24 REV
1
SMA Male to TNC Male Precision Cable 24 Inch
Length Using 150 Series Coax, RoHS
TECHNICAL DATA SHEET
Mechanical Specifications
Cable Assembly
Cable Type
Temperature
Temperature Operating Range, deg C
Size
Length, in [mm]
.
PE35419-24
150 Series
-50 to +205
24 [609.6]
1 [25.4]
One Time Minimum Bend Radius, in [mm]
Cable
Center Conductor Type
Cable Inner Conductor
No of Shields
Dielectric Type
Jacket Material
Jacket Diameter, in [mm]
Solid
Copper Clad Steel, Silver
1
PTFE
FEP
0.15 [3.81]
Connector 1
Type
Configuration
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
SMA Male
Straight
Copper Clad Steel, Silver
Passivated Stainless Steel
5/16
8 [0.9]
Passivated Stainless Steel
PTFE
Connector 2
Type
Configuration
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
TNC Male
Straight
Gold
Passivated Stainless Steel
5/8
14 [1.58]
Passivated Stainless Steel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications:
SMA Male to TNC Male Precision Cable 24 Inch Length Using 150 Series Coax, RoHS
PE35419-24
PE35419-24 REV
2
SMA Male to TNC Male Precision Cable 24 Inch
Length Using 150 Series Coax, RoHS
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE35419-24
SMA Male to TNC Male Precision Cable 24 Inch Length Using 150 Series Coax, RoHS from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications:
SMA Male to TNC Male Precision Cable 24 Inch Length Using 150 Series Coax, RoHS
PE35419-24
URL:
http://www.pasternack.com/sma-male-tnc-male-150-series-cable-assembly-pe35419-24-p.aspx
PE35419-24 REV
3
© 2013 Pasternack Enterprises All Rights Reserved
PE35419-24

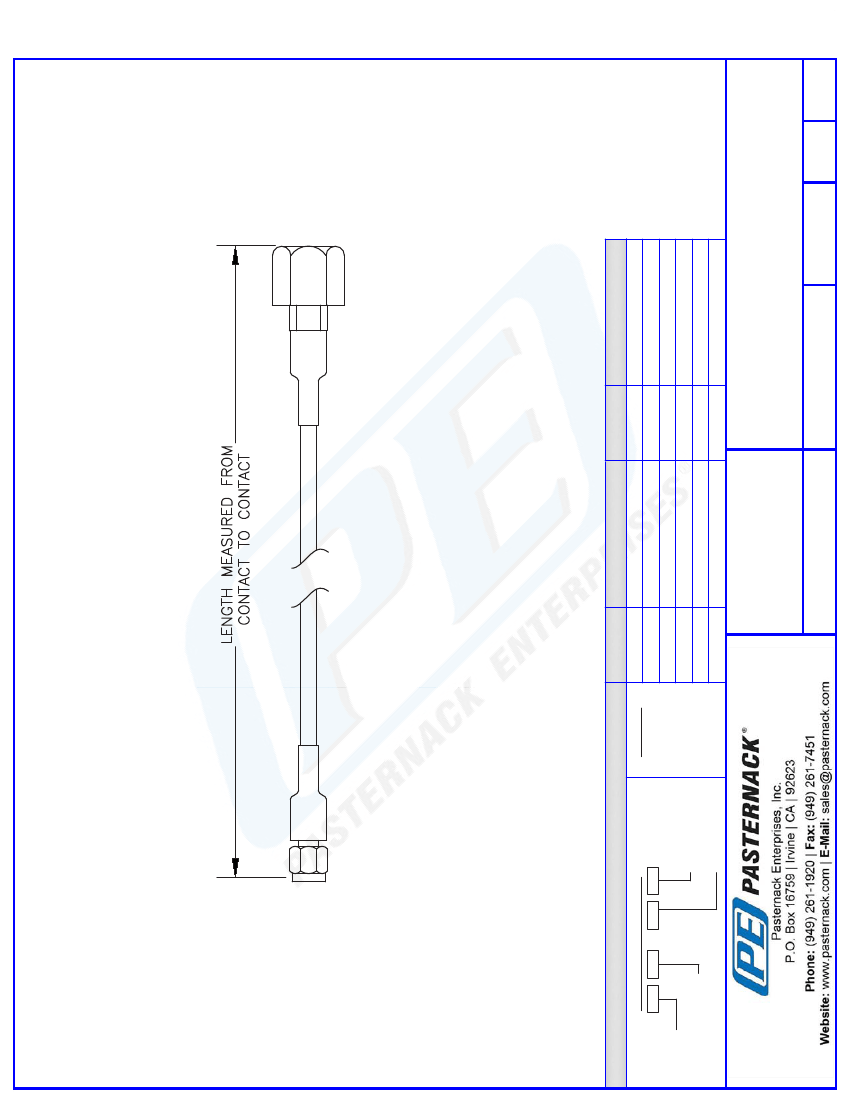

CAD Drawing
SMA Male to TNC Male Precision Cable 24 Inch Length Using 150 Series Coax, RoHS
PE35419-24 REV
SMA
MALE
TNC
MALE
Part # Ext.
Part Number Configuration
Examples
-12
yy
-24
-
xx
uu
PE3 zzz
PE3000LF-100
-36
PE3000-100
00 - 99999
CM = Centimeters PE3000LF-100CM
-48
LF = RoHS Compliant
< Blank > = Inches
-60
< Blank > = Standard
PE3000-100CM
Length
-xx
Note: LF applies only to RF cables
How To Order
Length In Inches
12''
24"
36"
48"
60"
Custom Length
DWG TITLE
Part # Ext.
-25CM
-50CM
-75CM
-100CM
-125CM
-xxCM
Length In Centimeters
25Cm
50Cm
75Cm
100Cm
125Cm
Custom Length
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. LENGTH TOLERANCE IS ± 1.5% OR 3/8", WHICHEVER IS GREATER.
PE35419
FSCM NO. 53919
CAD FILE
030813
SCALE N/A
SIZE A
2233
4
