SMA Male Right Angle to SMA Female Bulkhead Precision
Cable 72 Inch Length Using 150 Series Coax, RoHS
TECHNICAL DATA SHEET
PE35421-72
SMA Male Right Angle to SMA Female Bulkhead Precision Cable 72 Inch Length Using 150 Series Coax,
RoHS
Configuration
Connector 1
Connector 2
Cable Type
SMA Male Right Angle
SMA Female Bulkhead
150 Series
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Velocity of Propagation, %
RF Shielding, dB
Maximum Operating Voltage, Vrms
Electrical Specification Notes:
DC to 26.5
50
1.4:1
69.5
90
1,900
Short lengths up to 24” long may exhibit VSWR
measurements up to 9% higher.
Mechanical Specifications
Cable Assembly
Cable Type
Temperature
Temperature Operating Range, deg C
Size
Length, in [cm]
.
150 Series
-50 to +205
72 [182.88]
1 [25.4]
One Time Minimum Bend Radius, in [mm]
Cable
Center Conductor Type
Cable Inner Conductor
No of Shields
Dielectric Type
Jacket Material
Jacket Diameter, in [mm]
Solid
Copper Clad Steel, Silver
1
PTFE
FEP
0.15 [3.81]
Connector 1
Type
Configuration
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
SMA Male Right Angle
Right Angle
Copper Clad Steel, Silver
Passivated Stainless Steel
5/16
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications:
SMA Male Right Angle to SMA Female Bulkhead Precision Cable 72 Inch Length Using
150 Series Coax, RoHS PE35421-72
PE35421-72 REV
1
SMA Male Right Angle to SMA Female Bulkhead Precision
Cable 72 Inch Length Using 150 Series Coax, RoHS
TECHNICAL DATA SHEET
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
8 [0.9]
Passivated Stainless Steel
PTFE
PE35421-72
Connector 2
Type
Configuration
Mount Method
Inner Conductor Material and Plating
Body Material and Plating
Dielectric Type
SMA Female Bulkhead
Straight
Bulkhead
Beryllium Copper, Gold
Passivated Stainless Steel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
SMA Male Right Angle to SMA Female Bulkhead Precision Cable 72 Inch Length Using 150 Series Coax, RoHS from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic
products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male Right Angle to SMA Female Bulkhead Precision Cable 72 Inch Length Using 150
Series Coax, RoHS PE35421-72
URL:
http://www.pasternack.com/sma-male-sma-female-150-series-cable-assembly-pe35421-72-p.aspx
PE35421-72 REV
2
PE35421-72

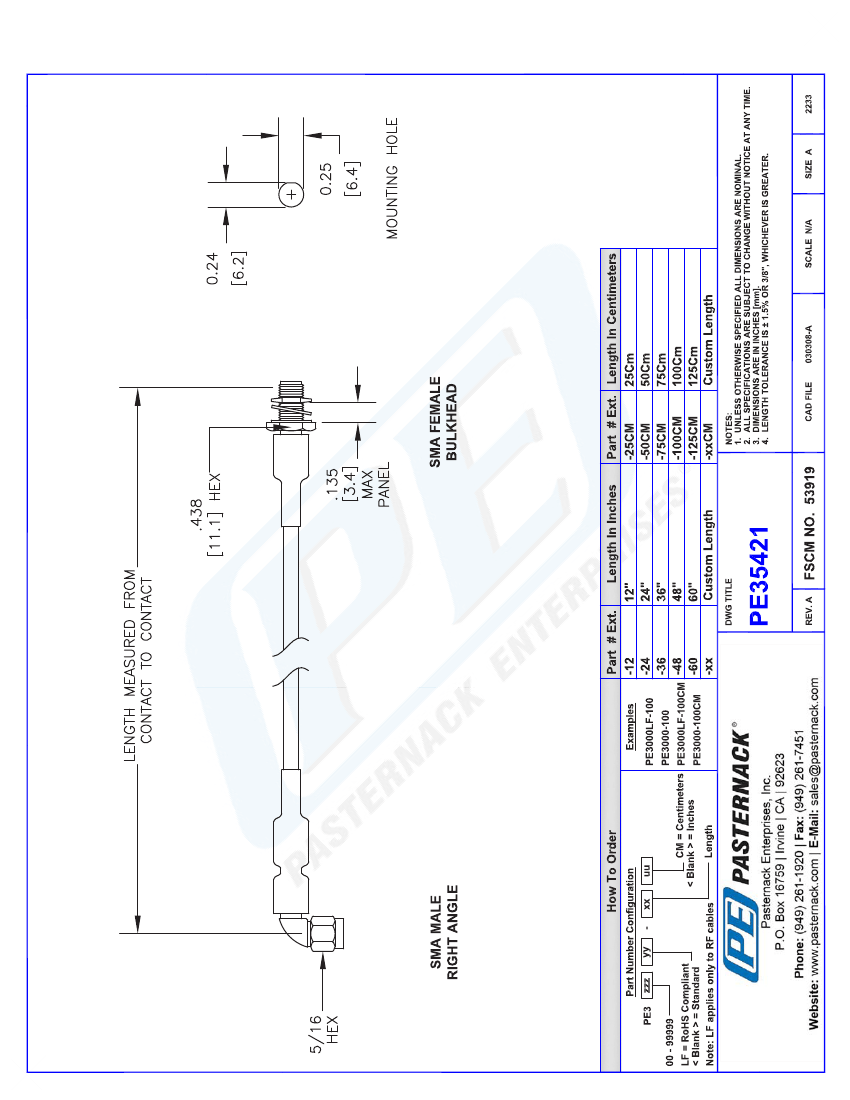

CAD Drawing
SMA Male Right Angle to SMA Female Bulkhead Precision
Cable 72 Inch Length Using 150 Series Coax, RoHS
© 2013 Pasternack Enterprises All Rights Reserved
PE35421-72 REV
3
