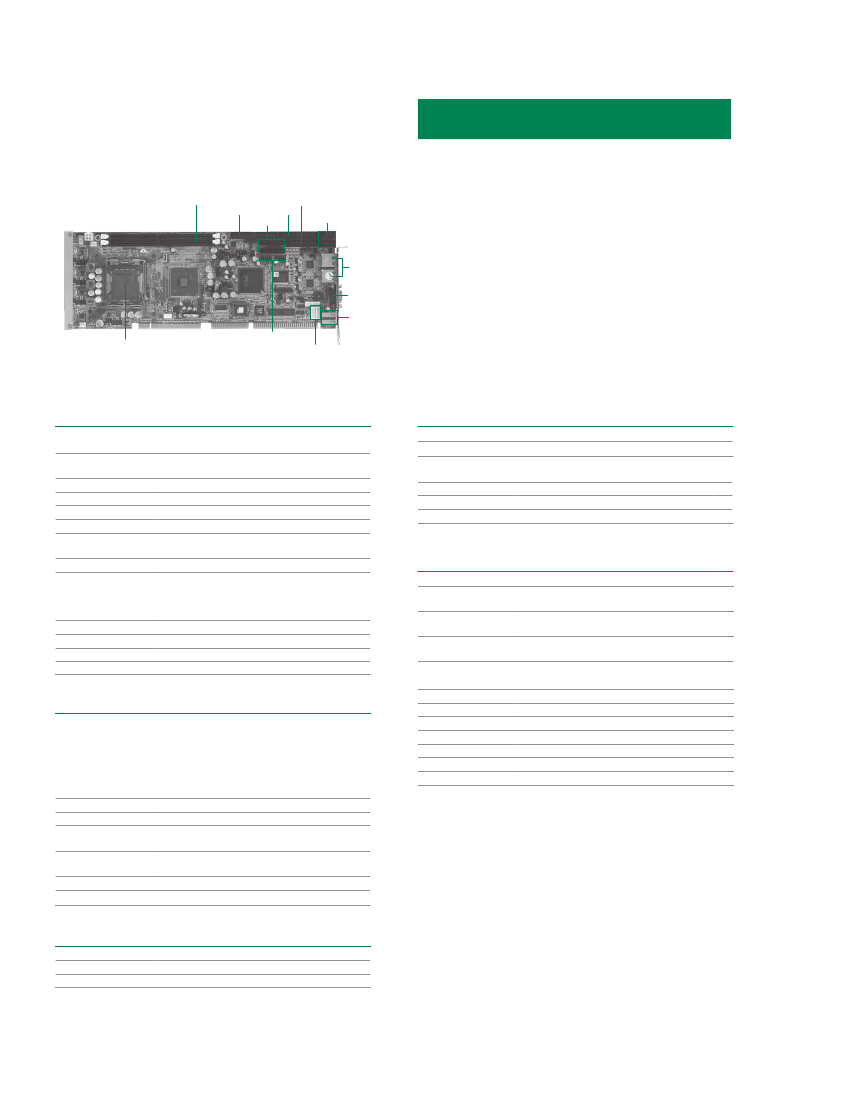

SBC81206
LGA775 Intel
®
Core™2 Duo PICMG 1.0
Full-size CPU Card with Intel
®
945GC +
ICH7/7R Chipset, VGA and Dual LANs
DDR2 DIMM
LPT
PATA-100
FDD
COM 1/2
SATA-300
Features
®
®
®
●
LGA775 for Intel Core™2 Duo/ Pentium D/ Pentium 4/
Celeron
®
processors with 533/800 MHz
®
●
Intel 945GC + ICH7/7R
●
2 DDR2 DIMM support up to 2 GB memory capacity
®
●
With Intel GMA 950 high performance integrated
graphics controller
●
ISA with up to 500mA high drive supported
Ethernet
VGA
USB
LGA775
USB
Internal K/B+M/S
System
CPU
System Memory
Chipset
BIOS
SSD
Watchdog Timer
Expansion Interface
Battery
Power Requirements
LGA775 socket for Intel
®
Core™2 Duo/ Pentium
®
4/
Pentium
®
/Celeron
®
processors with FSB 533/800 MHz
2 x 240-pin DIMM support DDR2-400/533/667 max.
up to 2 GB
Intel
®
945GC + ICH7/7R
Phoenix-Award
IDE DoM
255 levels, 1~255 sec.
4 x 32-bit PCI bus masters
16-bit ISA bus
Lithium 3V/220 mAH
Intel
®
Core™2 Duo E4500 @2.2 GHz, 1GB DDR2
+5V_SBY @ 24mA, +3.3V @ 130mA, +5V @ 1.486A,
+12V (System) @ 951mA, -12V @ 44mA, +12V (CPU)
@ 2.002A
338 x 122 mm
1.6 mm
0° ~ +60°C (32°F ~ 140°F), operation
10% ~ 95% relative humidity, non-condensing
Packing List
Standard
Quick installation guide, user's manual/utility CD and cable
Cable
Part Number
59380502000E
593826A0000E
Description
COM+Print cable w/ bracket
SATA signal cable 500mm
Qty
1
1
Ordering Information
Standard
SBC81206VGG
(P/N: E381206100)
SBC81206VGGR
(P/N: E381206101)
SBC81206VG
(P/N: E381206102)
Optional
E9C900B003
E9C900B004
E9C900B005
E9C900B006
5938A808010E
59380000290E
E93242100
LGA775 socket PICMG 1.0 full-size CPU card with VGA,
2 10/100/1000Mbps Ethernet
LGA775 socket PICMG 1.0 Full-size CPU card with VGA,
2 10/100/1000Mbps Ethernet and RAID
LGA775 socket PICMG 1.0 full-size CPU card with VGA,
10/100/1000Mbps Ethernet
Size
Board Thickness
Temperature
Relative Humidity
I/O
MIO
1 x IDE; PATA-100
1 x FDD
1 x PS/2 keyboard
1 x PS/2 mouse
1 x LPT; with SPP/EPP/ECP supported
1 x RS-232 (COM 1)
1 x RS-232/422/485 (COM 2)
4 x SATA-300; with RAID 0/1/10/5 (optional with ICH7R)
Detect CPU/system temperature, voltage and fan speed
2 ports as 10/100/1000Mbps support Wake-on-LAN,
RPL/PXE Boot ROM with Realtek RTL8111B
HD Codec audio as MIC-in/Line-in/Line-out/speaker-out
with audio kit AX93242 (optional)
6 x USB 2.0
System Management Bus for advanced monitoring/control
LGA775 CPU cooler JYCC501A-6N (for 4U/Shoebox)
LGA775 P4 cooler 4-pin H:61.4mm (for 4U/Shoebox)
LGA775 1U Heatsink H:27mm P=2.0 ( for 1U chassis)
LGA775 P4 cooler 3-pin H:66.8mm (for 2U/4U/Shoebox)
2 x USB cable with bracket, P=2.54mm, L=190mm
PS/2 keyboard & mouse cable with bracket
AX93242-RC HD audio converter kit
SATA
Hardware Monitoring
Ethernet
Audio
USB
SMBus
Display
Chipset
Memory Size
Display Interface
Intel
®
GMA 950 graphics Core
Intel
®
DVMT 3.0 compliant
1 x VGA
189
* All specifications and photos are subject to change without notice.
