BL1L5RT230ST1: DescriptionActive Delay Line, 1-Func, PBGA14, BGA-14; Categorylogic logic; File Size58KB，1 Pages; ManufacturerThin Film Technology Corp (TFT)

Download Datasheet Parametric View All

BL1L5RT230ST1 Overview

Active Delay Line, 1-Func, PBGA14, BGA-14

BL1L5RT230ST1 Parametric

Parameter Name	Attribute value
Maker	Thin Film Technology Corp (TFT)
Parts packaging code	BGA
package instruction	BGA,
Contacts	14
Reach Compliance Code	unknown
JESD-30 code	R-PBGA-B14
length	10.2 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output impedance nominal value (Z0)	50 Ω
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Package shape	RECTANGULAR
Package form	GRID ARRAY
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	3.05 mm
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	BALL
Terminal pitch	1.27 mm
Terminal location	BOTTOM
Total delay nominal (td)	2.3 ns
width	6.4 mm

Preview

Download Datasheet

View All

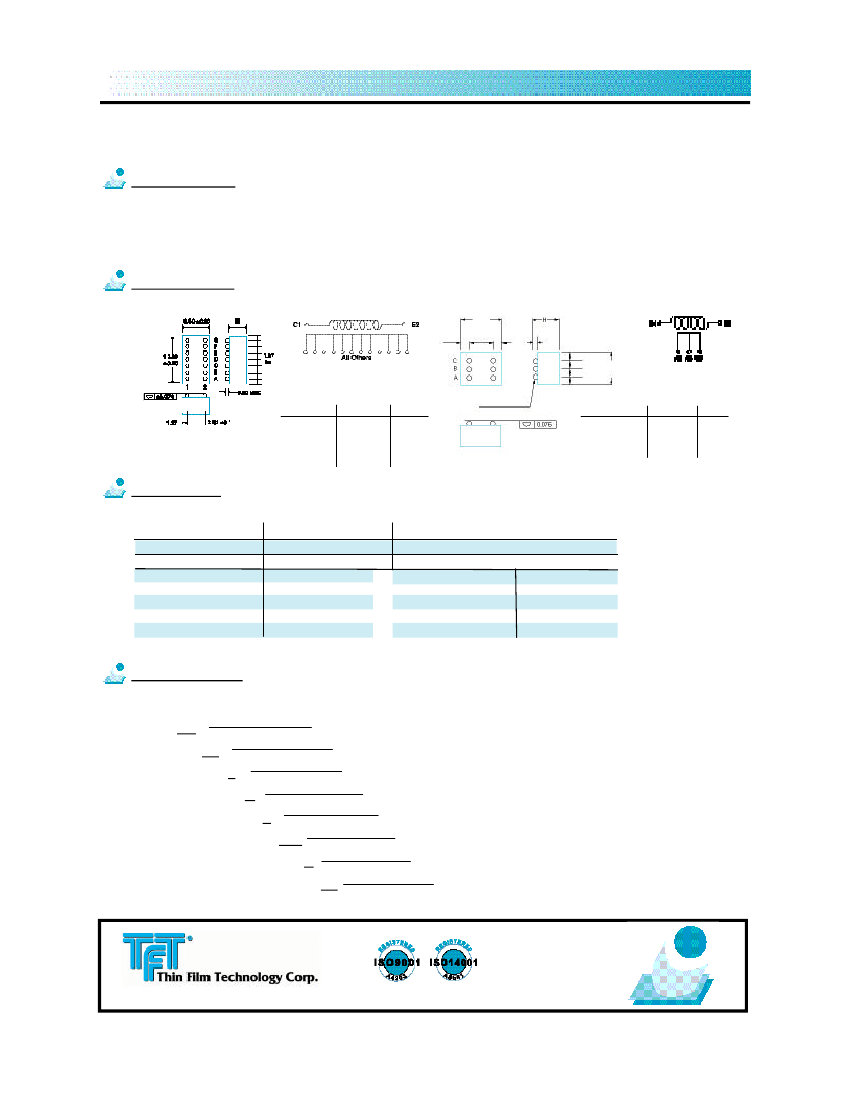

Thin Film BGA Delay Lines

BL1L Series

US Patent 5,365,203 6,127,906

1.0 Description

These delay lines offer the same excellent frequency performance as the GL delay lines but come in a solder

bump configuration that takes up less board space than the GL series. As with all of TFT’s delay lines, these

feature stripline conductors on ceramic for high speed, high stability performance.

2.0 Mechanical

-Please refer to page 37 for land pattern

dimension mm

6.40

±0.10

1.27

±0.07

3.81

1.27

±0.07

0.80

max

1.27

5.10

±0.10

schematic

1

2

0.711 (28 mil) Dia.

10/90 Sn/Pb sphere

schematic

Height (H) Code

1.80 max W

2.40 max X

3.00 max Y

Time delay

0.1 - 0.8 ns

0.9 - 1.7 ns

1.8 - 2.6 ns

2.7 - 3.5 ns

Height (H) Code

1.05 max

P

1.65 max

Q

2.25 max

R

2.85 max

S

Time delay

0.10 to 0.20ns

0.30 to 0.50ns

0.60 to 0.80ns

3.0 Electrical

Type

Time delay

Time delay increment

Rated current

Insulation resistance

Temp. coefficient of Td

Time delay tolerance

Characteristic impedance

BL1L (P, Q, R, S)

0.1- 3.5 ns

0.1 ns step to 3.5 ns

100 mA

>100 Mohm 50V

0 to +150 ppm/°C

±0.05 ns

50 ±5 ohm

BL1L (W, X, Y)

0.10 - 0.80 ns

0.1 ns step to 0.80 ns

Rise/fall time

DC resistance

Rated voltage

Operating temperature

-40 to + 85°

Storage temperature

-55 to +125°C

200 ps/ns

<1.0 ohm/ns max

100 VDC (1 min)

4.0 Part Number

BL

1L

5

R

T

250

S

Product designator

Circuit/element qualifier

Impedance (5 = 50 ohm)

Height code

Solder bump

Time delay (250 = 2.5ns)

Serial code

T1

Packaging (T = Tape, 1 = 100)
