DIM200PKM33-F000_11 Overview

IGBT Chopper Module

DIM200PKM33-F000
IGBT Chopper Module
Replaces DS5865-2
DS5865-3 October 2011 (LN28813)
FEATURES
10µs Short Circuit Withstand
High Thermal Cycling Capability
Soft Punch Through Silicon
Isolated AlSiC Base with AlN Substrates
Lead Free Construction

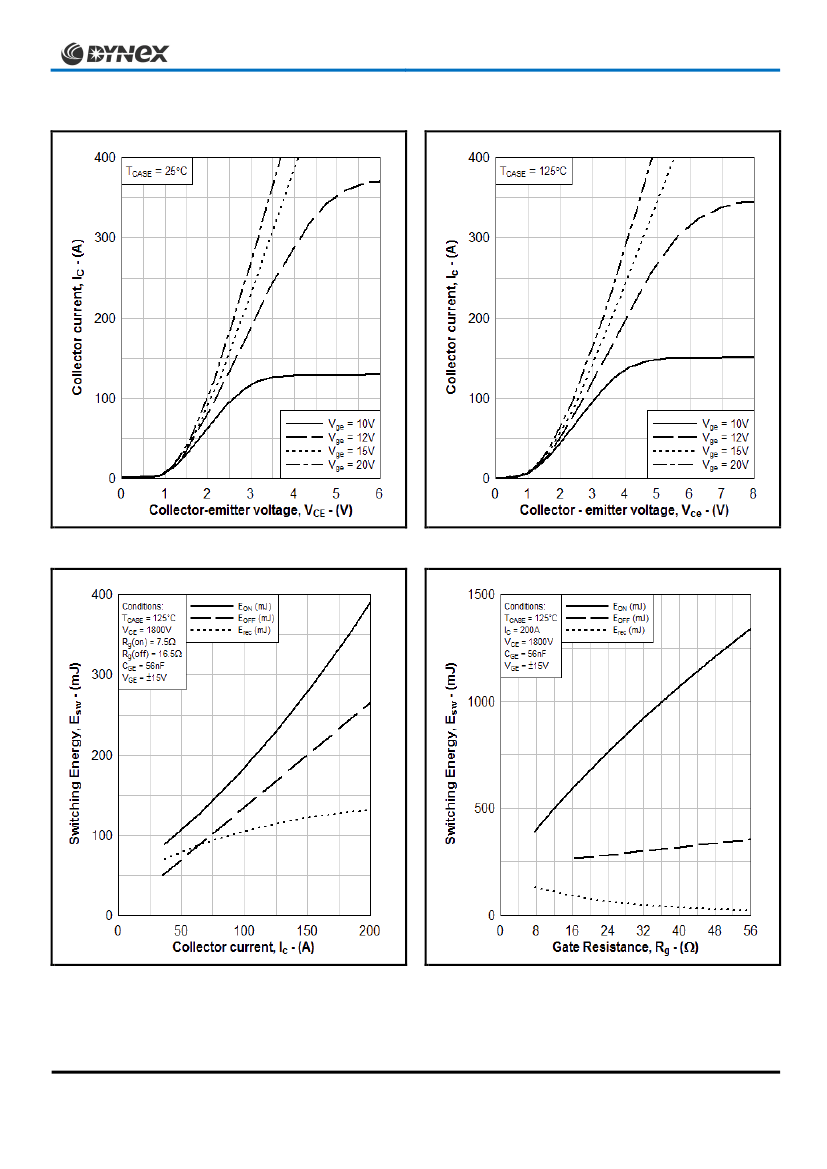

KEY PARAMETERS
V
CES
V
CE(sat)
* (typ)
I
C
(max)
I
C(PK)
(max)
3300V
2.8V
200A
400A
* Measured at the auxiliary terminals
APPLICATIONS
1(E1/K)
Choppers
Motor Controllers
Power Supplies
Traction Auxiliaries
2(C1)
5(E )
4(G )
8(C )
1
1
1
3(A)
The Powerline range of high power modules includes
half bridge, chopper, dual, single and bi-directional
switch configurations covering voltages from 1200V to
6500V and currents up to 2400A.
The DIM200PKM33-F000 is a 3300V, n-channel
enhancement mode, insulated gate bipolar transistor
(IGBT) chopper module configured with the upper arm
of the bridge controlled. The IGBT has a wide reverse
bias safe operating area (RBSOA). This device is
optimised for traction drives and other applications
requiring high thermal cycling capability.
The module incorporates an electrically isolated base
plate and low inductance construction enabling circuit
designers to optimise circuit layouts and utilise
grounded heat sinks for safety
.

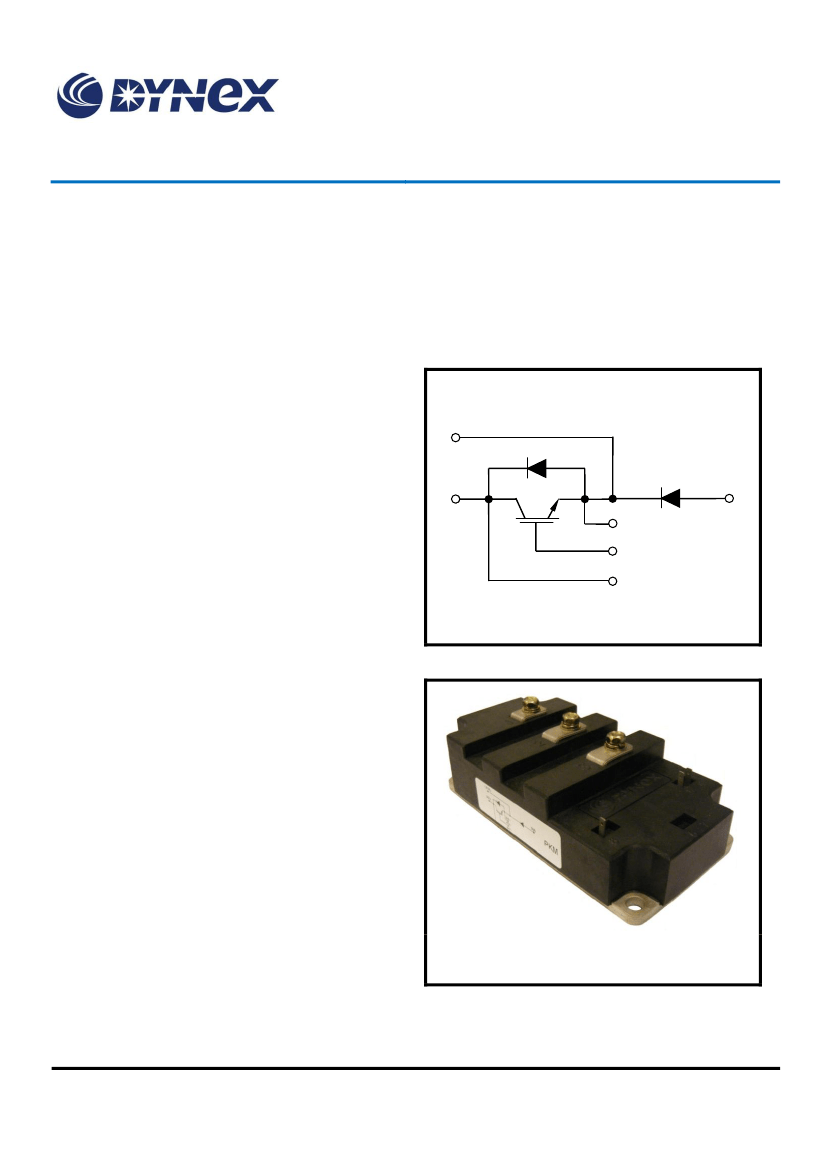

Fig. 1 Circuit configuration
ORDERING INFORMATION
Order As:
DIM200PKM33-F000
Outline type code: P
Note: When ordering, please use the complete part
number
(See Fig. 11 for further information)
Fig. 2 Package
Caution:
This device is sensitive to electrostatic discharge. Users should follow ESD handling procedures
1
/
8
www.dynexsemi.com
