1
8

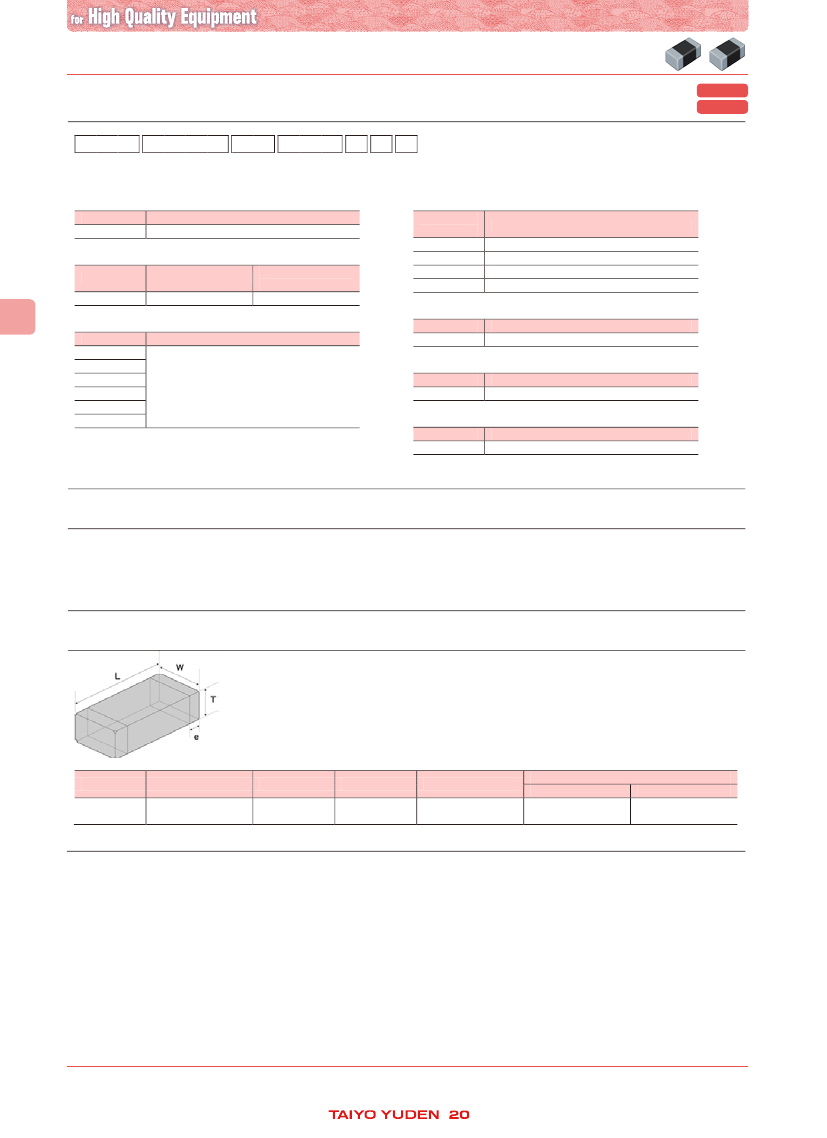

MULTILAYER CHIP BEAD INDUCTORS(BK SERIES)
MULTILAYER CHIP BEAD INDUCTORS (BK SERIES)
■PART
NUMBER
*Operating Temp. :
-55½125℃
REFLOW
AEC-Q200
B
K △
①
1
0
②
0
5
H
③
S
1
2 1
④
－ T V
⑤ ⑥ ⑦
△＝Blank space
①Series name
Code
BK△
②Dimensions（L×W）
Code
1005
③Material
Code
HW
HS
HR
HM
LM
LL
Series name
Multilayer chip bead inductor
Type（inch）
1005（0402）
Dimensions
（L×W）［mm½
1.0×0.5
④Nominal impedance
Code
（example）
100
330
121
102
⑤Characteristics
Code
－
⑥Packaging
Code
T
⑦Internal code
Code
V
Nominal impedance［Ω½
10
33
120
1000
Material
Characteristics
Standard
NOISE SUPPRESSION COMPONENTS FERRITE BEAD INDUCTORS
／
70

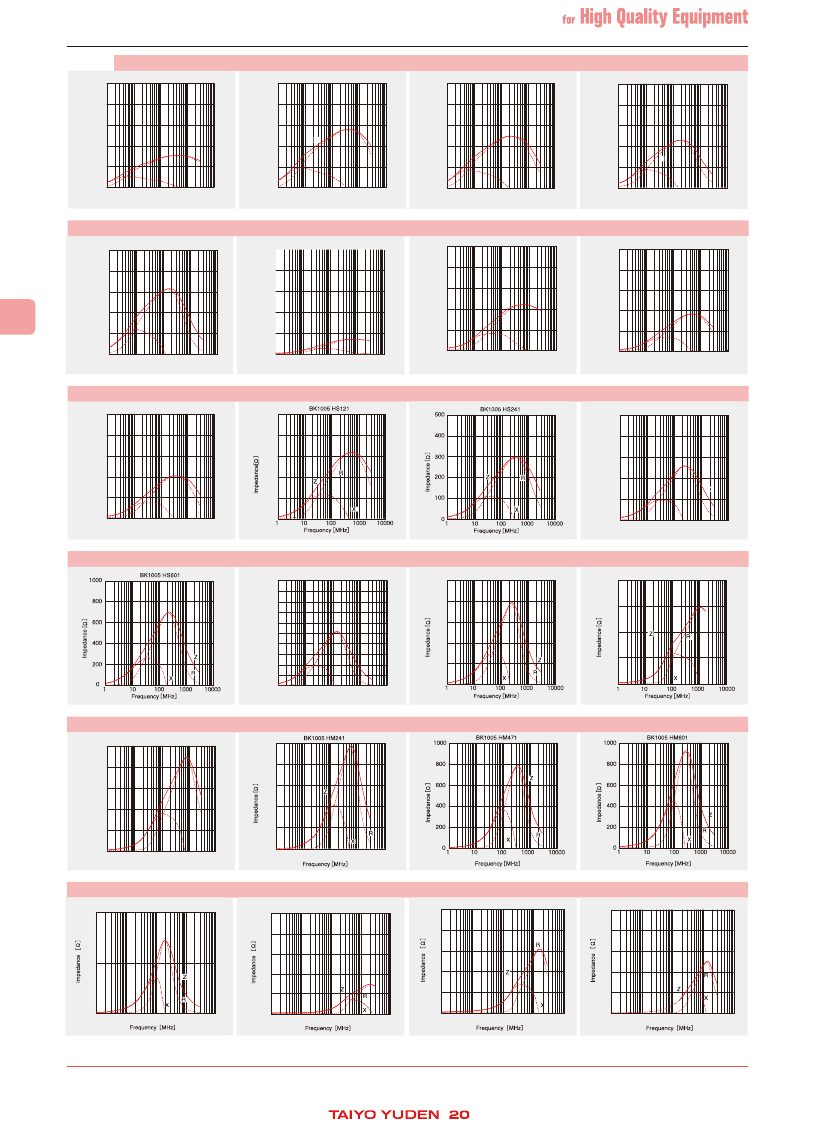

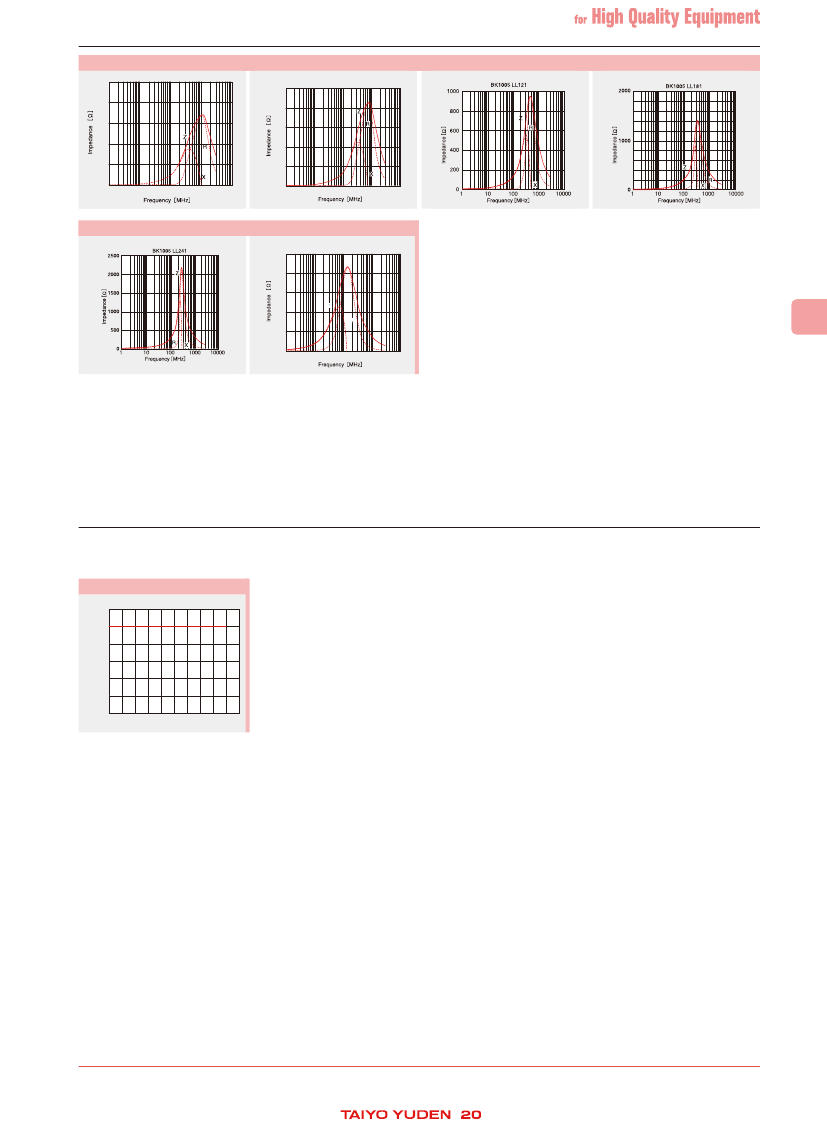

Refer to impedance curves
for material differences
Packaging
Taping
Internal code
MLCI for Industrial and Automotive
■FEATURES
●HW：For
broadband noise suppression.
●HS：For
broadband noise suppression.
●HR：For
upper 10MHz noise suppression.
●HM：For
upper 20MHz noise suppression.
●LM：For
high frequency noise suppression around 200MHz.
●LL：For
high frequency noise suppression from 100MHz.
■STANDARD
EXTERNAL DIMENSIONS / STANDARD QUANTITY
Type
BK 1005
（0402）
L
1.00±0.05
（0.039±0.002）
W
0.50±0.05
（0.020±0.002）
T
0.50±0.05
（0.020±0.002）
e
0.25±0.10
（0.010±0.004）
Standard quantity [pcs]
Paper tape
Embossed tape
10000
－
Unit：mm（inch）
▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our product specification sheets.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our website (http://www.ty-top.com/) .
1
8
■PART
NUMBER
・ All the Multilayer Chip Bead Inductors of the catalog lineup are RoHS compliant.
Note)
・ The exchange of individual specifications is necessary depending on the application and circuit condition. Please contact Taiyo Yuden sales channels.
・ *1: Automotive（AEC-Q200 Qualified) products
＜ ：AEC-Q200 qualified＞
All the Multilayer Chip Bead Inductors of *1 marks are tested based on the test conditions and methods defined in AEC-Q200 by family item.
Please consult with TAIYO YUDEN’s official sales channel for the details of the product specification and AEC-Q200 test results, etc.,
and please review and approve TAIYO YUDEN's product specification before ordering.
・ *2: Industrial products and Medical products
●BK
1005
Part number
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
BK
1005HW680-TV
1005HW121-TV
1005HW241-TV
1005HW431-TV
1005HW601-TV
1005HS100-TV
1005HS330-TV
1005HS680-TV
1005HS800-TV
1005HS121-TV
1005HS241-TV
1005HS431-TV
1005HS601-TV
1005HS102-TV
1005HR601-TV
1005HM750-TV
1005HM121-TV
1005HM241-TV
1005HM471-TV
1005HM601-TV
1005HM102-TV
1005LL100-TV
1005LL220-TV
1005LL330-TV
1005LL470-TV
1005LL680-TV
1005LL121-TV
1005LL181-TV
1005LL241-TV
1005LM182-TV
Nominal impedance
［Ω½
68
120
240
430
600
10
33
68
80
120
240
430
600
1000
600
75
120
240
470
600
1000
10
22
33
47
68
120
180
240
1800
Impedance tolerance
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
±25％
Measuring frequency
［MHz½
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DC Resistance
［Ω½（max.）
0.17
0.24
0.31
0.50
0.60
0.03
0.06
0.10
0.10
0.20
0.30
0.45
0.55
0.58
0.60
0.18
0.18
0.30
0.45
0.50
0.70
0.11
0.18
0.25
0.33
0.31
0.45
0.50
0.70
0.90
Rated current
［mA½（max.）
500
450
400
350
300
1,000
700
700
700
500
400
350
300
300
300
350
300
300
250
250
150
500
400
400
350
400
350
300
250
120
Thickness
［mm½
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
0.50 ±0.05
Note
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
*1
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
,*2
NOISE SUPPRESSION COMPONENTS FERRITE BEAD INDUCTORS
／
※）The rated current is the value of current at which the temperature of the element is increased within 20℃.
▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our product specification sheets.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our website (http://www.ty-top.com/) .
1
8
71
